点击放大查看

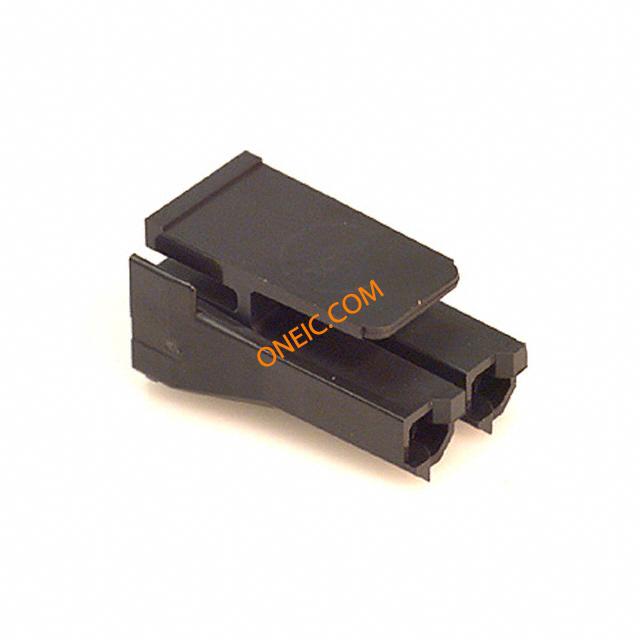

0444412002
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 2 POS 7.49mm Crimp ST Bag Conn Housing F 2 POS 7.49mm Crimp ST Bag CONN HOUSING 2POS 7.50MM BLACK Connector: wire-board; SABRE; plug; female; PIN:2; w/o terminals |
| 分类 |
商业参数
| 交货时间 | 43 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 额定电压值 | 600V | 最大额定电流 | 18A |
| 最小输入电压 | 600V | 最小供电电压 | 600V |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数

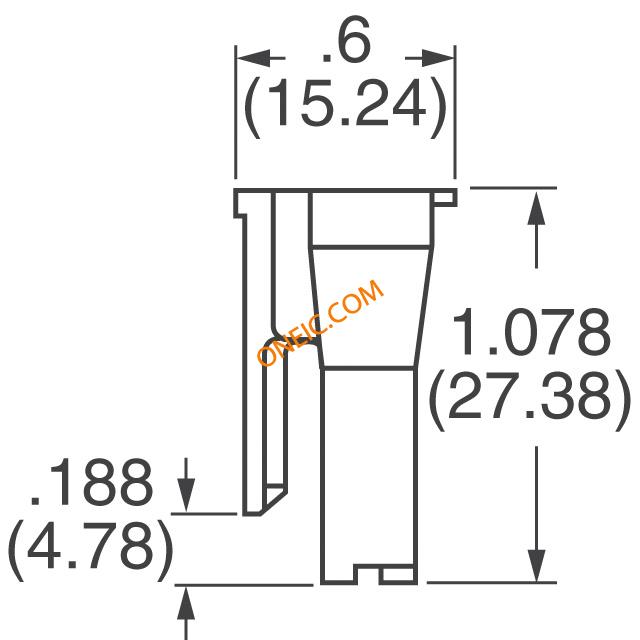

| 颜色 | Black | 深度 | 27.38 mm |
| 间距 | 7.49 mm | 高度 | 15.24 mm |
| 重量 | 1.96 g | 包装方式 | Bag |
| 触头类型 | Female Blade Socket | 柱间距 | 7.5mm |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 安装样式 | for cable | 排数 | 1 |
| 锁定特性 | lock | 壳体材料 | Nylon |
| 总长度 | 15.82 mm | 包装数量 | 162 |
| 连接器 - 电缆 | plug | 触点数 | 2 |
| 堆叠方向 | Side to Side | 接触件端接 | Crimp |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 外壳与棱镜材料 | polyamide | ||
产品信息
| SPG | 162 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 适配器系列 | SABRE | 单元数量 | 1 |
| 行业别名 | 44441-2002, 444412002 | ||
环境参数
| 工作温度 | -40°C ~ 75°C | ||
文档与媒体
相关型号
0431603102
molex
Conn Wire to Board HDR 2 POS 7.49mm Solder RA Thru-Hole Tray Conn Power HDR 2 POS 7.49mm Solder RA Thru-Hole 4 Terminal 1 Port Tray CONN HEADER R/A 2POS TIN SOLDER CONN HDR 2POS 7.50MM R/A SLDR Connetor
0431602102
Molex, LLC
. 0431602102 - 2 Position Header, Male Blades Connector Solder 0.295" (7.50mm) Through Hole from Molex. from now!
0431601102
Molex, LLC
. 0431601102 - 2 Position Header, Male Blades Connector Solder 0.295" (7.50mm) Through Hole, Right Angle from Molex. from now!
0431600102
molex
Conn Wire to Board HDR 2 POS 7.49mm Solder ST Thru-Hole Tray Conn Power HDR 2 POS 7.49mm Solder ST Thru-Hole 4 Terminal 1 Port Tray CONN HEADER 2POS TIN SOLDER CONN HDR 2POS 7.50MM PCB SLDR
76650-0231
molex
Power Solution Kit KIT CONN MULTI WIRE-WIRE 344PC Board to Board & Mezzanine Connectors Power Connectors Kit
0433751001
Molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 14-16AWG TIN TERM BLADE FEMALE 14-16AWG TIN Contact; female; 14÷18AWG; SABRE; tinned; crimped, on cable; 18A
0433750001
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 14-16AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel TERM BLADE FEMALE 14-16AWG TIN
0436802002
Molex, LLC
. 0436802002 - 2 Position Blade Type Power Housing Connector Plug Black 0.295" (7.50mm) from Molex. from now!

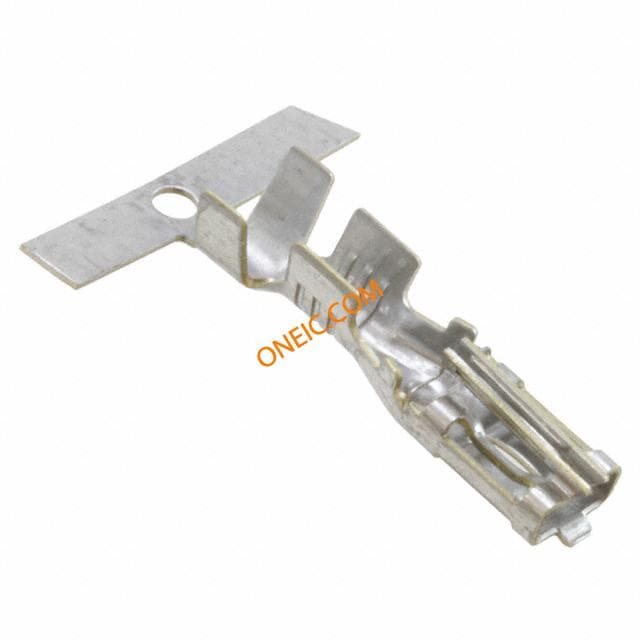

0433740001
