点击放大查看

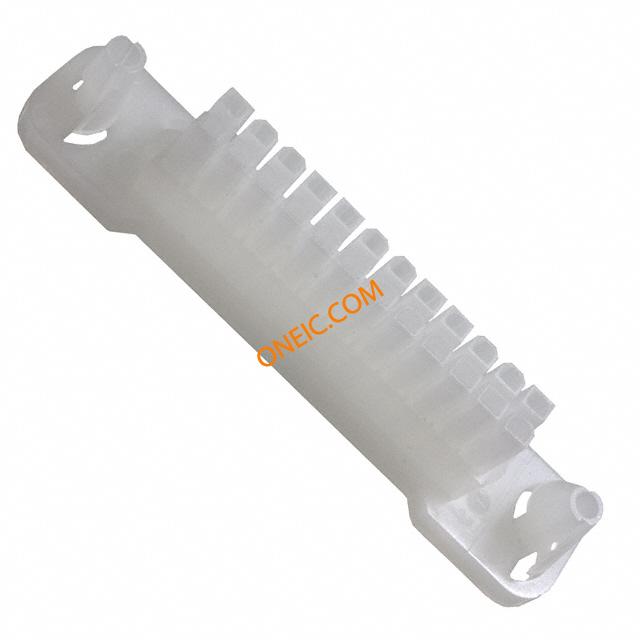

15-06-0240
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 24POS W/PANEL MOUNT Housing 4.2mm BMI recept,D/R,UL94V-2,24w Headers & Wire Housings RECPT DUAL ROW 24POS w/panel mount ears Conn Housing RCP 24 POS 4.2mm Crimp ST Panel Mount Bag HOUSING, RECEPTACLE, 24POS MINIFIT JR BMI PMRCPT DLRW V-2 24CKT NAT MINIFITJRBMIPMRCPTDLRWV-224CKTNAT Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 24 路 直 母 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Mini-Fit BMI | 零件号别名 | 0015060240 42474-2411 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 输出数量 | 24 | 最大额定电流 | 11 A, 6 A |
机械参数
| 颜色 | Natural | 深度 | 19.6mm |
| 间距 | 0.165" (4.20mm) | 宽度 | 17.3mm |
| 长度 | 82.2mm | 重量 | 0.02 |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Female Socket | 安装类型 | Panel Mount |
| 行程角度 | Straight | 连接器类型 | Receptacle |
| 安装样式 | Wire | 排数 | 2 |
| 壳体材料 | Nylon | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 24 |
| 接触件端接 | Crimp | 位数 | 24 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Receptacle Panel Mount |
| 连接器性别 | Female | 系列 | 42474 |
| CAD图纸 | 3D CAD Model | 制造商全称 | Mini-Fit BMI |
| 产品子类型 | Receptacles / Sockets - Housings | 电路数 | 24 |
| 适用产品/相关产品 | Mini-Fit BMI Receptacle | ||
文档与媒体
相关型号
0039000186
molex
Contact F Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 16AWG GOLD Contact SKT Crimp ST Cable Mount Loose Piece
0039000183
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-28AWG 30GOLD
0039000213
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN
0039000180
molex
Contact SKT Crimp ST Cable Mount Loose Piece MINI FIT JR. TERM. BL/PT/FORM
39-00-0055
Molex
Headers & Wire Housings SOCKET 18-24AWG REEL CONN TERM FEMALE 18-24AWG GOLD
0039000182
Molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 18-24AWG GOLD Conn Contact F 1 POS Crimp ST Cable Mount Loose Piece
0438100011
Molex
Conn Power HDR 24 POS 4.2mm Solder RA Thru-Hole 24 Terminal 1 Port Tray MF SMC RA HDR W/CLIP TIN 24 CKT
0039000217
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 16AWG TIN
0015246241
Molex
Conn Power HDR 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Tray CONN HEADER VERT 24POS T/H
0039000155
Molex
Contact SKT Crimp ST Cable Mount
39-00-0154
molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 18-24AWG 30GOLD CONTACT, CRIMP, SOCKET, 24-18AWG
0015286241
Molex
Conn Power HDR 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Tray CONN VERT HEADER 24POS DUAL
0438790032
Molex
Conn Power HDR 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Tray CONN HEADER 24POS 4.2MM DUAL TIN
0442810011
Molex
Conn Power PL 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Bag MINIFIT CONTINUITY TST PLG DR
0015249247
Molex
Conn Power HDR 24 POS 4.2mm Solder RA Thru-Hole 24 Terminal 1 Port Tray CONN HEADER R/A 24POS DL GOLD
15-06-0245
Molex Connector Corporation
CONN PLUG 24POS W/PANEL MNT EARS Headers & Wire Housings PLUG DUAL ROW 24POS w/panel mount ears Conn Housing PL 24 POS 4.2mm Crimp ST Bag CONNECTOR, HOUSING, PLUG, 24POS

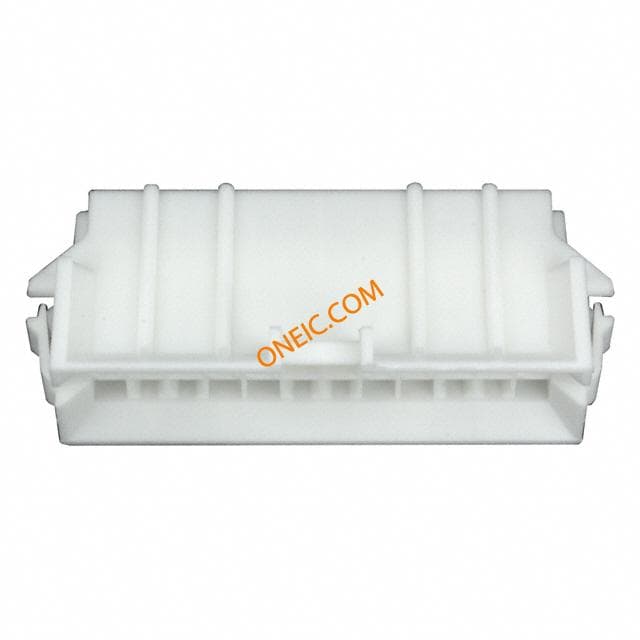

15-06-0246
Molex Connector Corporation
CONN PLUG 24POS W/PANEL MNT EARS 24w d/r blind mate p/mount plug + ears Headers & Wire Housings PLUG DUAL W/EARS 24 panel mount 4.20mm Pitch Mini-Fit® BMI Plug Housing, Dual Row with Panel Mount Ears, White, UL 94V-0, 24 Circuits Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 24 路 直 公 压接连接器外壳
15-24-6240
Molex Connector Corporation
CONN HEADER 24POS 4.2MM R/A TIN Headers & Wire Housings R/A HDR DUAL ROW 24P Conn Power HDR 24 POS 4.2mm Solder RA Thru-Hole 24 Terminal 1 Port Tray

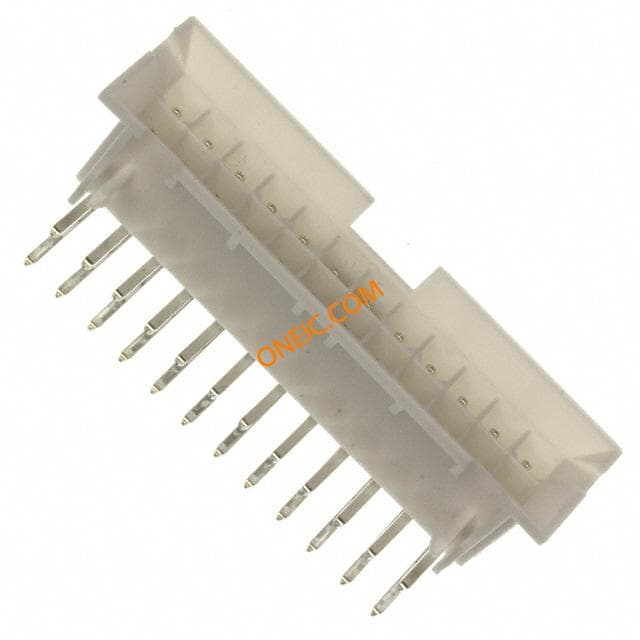

15-24-9244
