点击放大查看

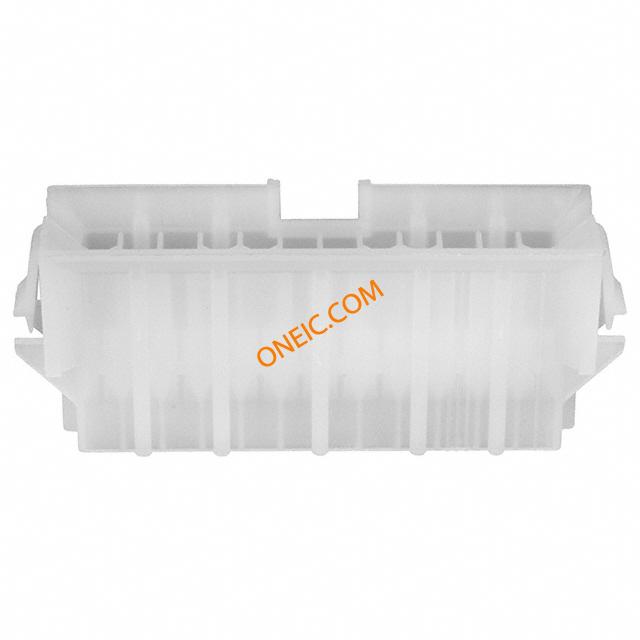

15-06-0245
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 24POS W/PANEL MNT EARS Headers & Wire Housings PLUG DUAL ROW 24POS w/panel mount ears Conn Housing PL 24 POS 4.2mm Crimp ST Bag CONNECTOR, HOUSING, PLUG, 24POS |
| 分类 |
商业参数
| 商标名 | Mini-Fit BMI | 零件号别名 | 0015060245 42475-2411 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366990 |
电气参数
| 最大额定电流 | 6 A, 9 A | 连接器类型 - 电压输入 | Male |
机械参数
| 颜色 | Natural | 间距 | 0.165" (4.20mm) |
| 重量 | 0.02 | 包装方式 | Bulk |
| 排间距 | 0.165" (4.20mm) | 触头类型 | Male Pin |
| 安装类型 | Panel Mount, Snap-In | 连接器类型 | Plug |
| 排数 | 2 | 壳体材料 | Nylon |
| 触点数 | 24 | 接触件端接 | Crimp |
| 位数 | 24 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug Housing |
| 系列 | 42475 | 产品子类型 | Wire Housings |
| 应用细节 | Power, Wire-to-Wire, Wire-to-Board | 适用产品/相关产品 | :Mini-Fit 46012, 5558 Series Male Crimp Terminals |
