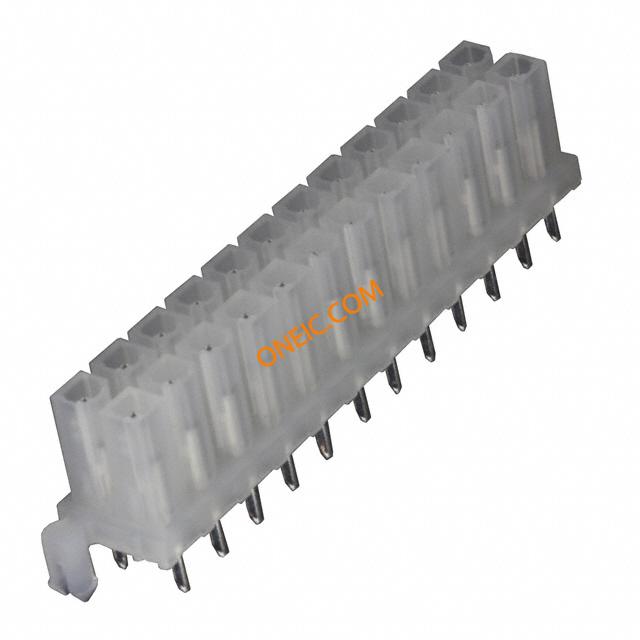

15-24-7240
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 24POS 4.2MM VERT TIN Headers & Wire Housings RECPT VERT HDR 24P DUAL ROW Conn Power RCP 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Tray PLUG & SOCKET CONN, RCPT, 24POS, 4.2MM |
| 分类 |
商业参数
| 商标名 | Mini-Fit BMI | 零件号别名 | 0015247240 A-42385-24A1 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 720 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 6 A |
机械参数
| 颜色 | Natural | 间距 | 0.165" (4.20mm) |
| 重量 | 0.005 | 包装方式 | Tray |
| 排间距 | 0.165" (4.20mm) | 端接方式 | Solder |
| 触头类型 | Female Socket | 安装类型 | Through Hole |
| 连接器类型 | Receptacle | 接触镀层 | Tin |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Nylon | 端接样式 | Through Hole |
| 触点数 | 24 | 接触件端接 | :Through Hole Vertical |
| 位数 | 24 | 接触镀层厚度 | 100µin (2.54µm) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 连接器性别 | :Receptacle | 系列 | 42385 |
| 产品特性 | Board Lock | 产品子类型 | Receptacles / Sockets - PCB |
| 加载位置数 | All | ||
