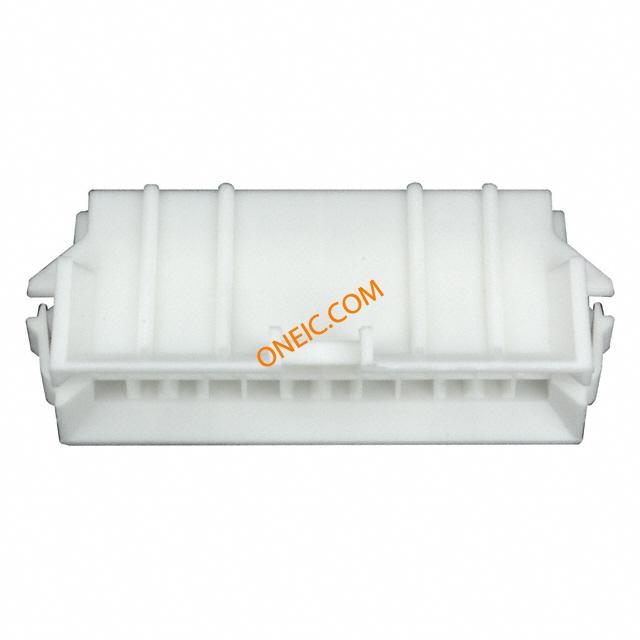

15-06-0246
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 24POS W/PANEL MNT EARS 24w d/r blind mate p/mount plug + ears Headers & Wire Housings PLUG DUAL W/EARS 24 panel mount 4.20mm Pitch Mini-Fit® BMI Plug Housing, Dual Row with Panel Mount Ears, White, UL 94V-0, 24 Circuits Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 24 路 直 公 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Mini-Fit BMI | 零件号别名 | 0015060246 42475-2421 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 最大额定电流 | 13 A | 连接器类型 - 电压输入 | Male |
机械参数
| 颜色 | Natural | 深度 | 25.6mm |
| 间距 | 0.165" (4.20mm) | 宽度 | 16.8mm |
| 长度 | 57.8mm | 包装方式 | Bulk |
| 方向 | 直 | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Male Pin | 安装类型 | Panel Mount, Snap-In |
| 连接器类型 | Plug | 排数 | 2 |
| 壳体材料 | Nylon | 触点数 | 24 |
| 接触件端接 | Crimp | 位数 | 24 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug Housing |
| 连接器性别 | Male | 系列 | 42475 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Wire Housings |
| 基础产品编号 | 8981 | 应用细节 | Power, Wire-to-Wire, Wire-to-Board |
| 适用产品/相关产品 | Mini-Fit BMI Plug | ||
文档与媒体
相关型号
0039012245
molex
Conn Housing RCP 24 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 24POS DUAL Conn Housing F 24 POS 4.2mm Crimp ST Cable Mount Bag
0039000121
molex
Contact PIN Crimp ST Cable Mount Bag MINIFIT TERM CRP MALE L BS TIN
0039000219
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-24AWG 30GOLD CONN TERM MALE 18-24AWG GOLD
0039012240
molex
Conn Housing RCP 24 POS 4.2mm Crimp ST Bag CONN RECEPT 24POS DUAL
0039000061
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-24AWG TIN
0015247241
molex
Conn Wire to Board RCP 24 POS 4.2mm Solder ST Thru-Hole Tray Conn Power RCP 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Tray CONN HEADER 24POS 4.2MM VERT TIN
39-00-0224
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 16AWG GOLD CRIMP Headers & Wire Housings CRIMP TERMINAL 16 AWG
0460123241
Molex
CONTACT PIN CRIMP ST CABLE MOUNT REEL MF PLUS HCS CRIMP TERM MALE
0445160012
Molex, LLC
. 0445160012 - 24 Position Rectangular Housing Connector Receptacle Black 0.165" (4.20mm) from Molex. from now!
0460121242
Molex, LLC
. 0460121242 - Pin Contact Gold 18-20 AWG Crimp from Molex. from now!
0039000049
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 22-28AWG TIN
0460121142
Molex
Contact PIN Crimp ST Cable Mount Bag MF PLUS HCS CRIMP TERM MALE
0039000128
Molex
Contact PIN Crimp ST Cable Mount Reel MINIFIT TERM CRP MALE C BZ TIN

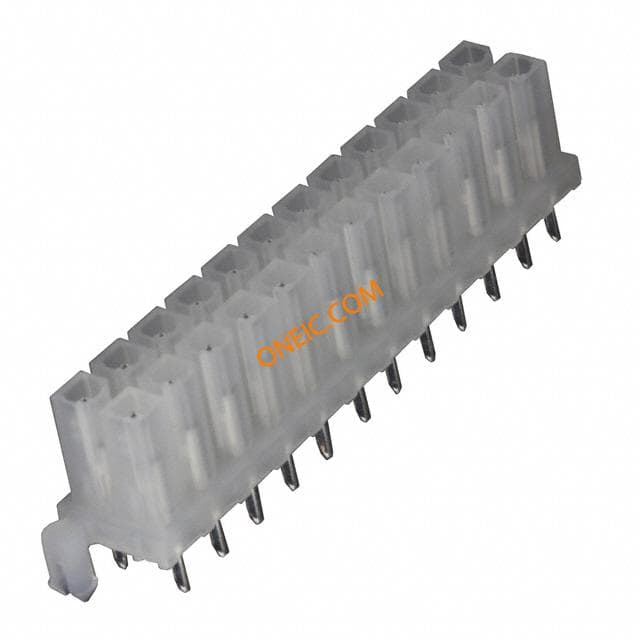

15-24-7240
Molex Connector Corporation
CONN HEADER 24POS 4.2MM VERT TIN Headers & Wire Housings RECPT VERT HDR 24P DUAL ROW Conn Power RCP 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Tray PLUG & SOCKET CONN, RCPT, 24POS, 4.2MM
15-24-7243
Molex Connector Corporation

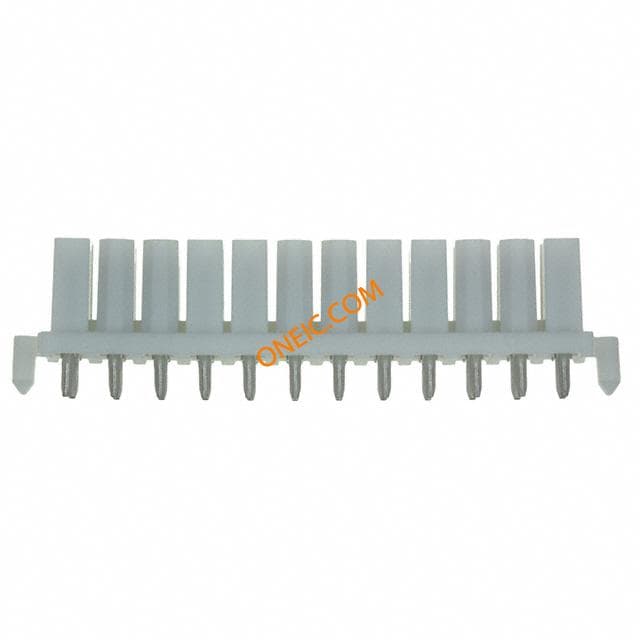

CONN HEADER 24POS 4.2MM STR GOLD Headers & Wire Housings 24CKT VERT RECEPT Conn Power RCP 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Tray
