点击放大查看

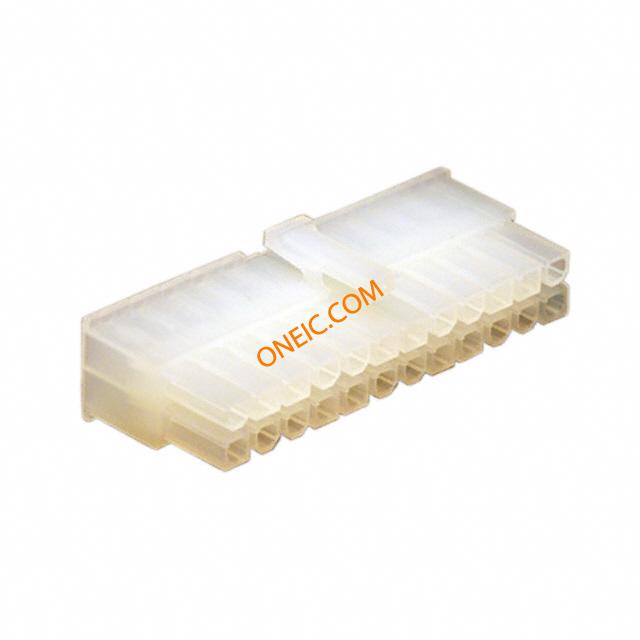

0039012245
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 24 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 24POS DUAL Conn Housing F 24 POS 4.2mm Crimp ST Cable Mount Bag |
| 分类 |
商业参数
| 交货时间 | 41 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 12/Contact A | 最小供电电压 | 600VDC/600VAC |
机械参数
| 颜色 | Natural | 深度 | 19.6 mm |
| 间距 | 4.2 mm | 高度 | 15.1 mm |
| 包装方式 | Bag | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Female Socket | 外壳颜色 | Ivory |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 排数 | 2 |
| 壳体材料 | Nylon 66 | 总长度 | 51.6 mm |
| 触点数 | 24 | 接触件端接 | Crimp |
| 位数 | 24 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 行业别名 | 39-01-2245, 39012245 |
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0039288240
molex
Conn Wire to Board HDR 24 POS 4.2mm Solder ST Thru-Hole Tray Conn Power HDR 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Bag CONN HEADER 24POS 4.2MM VERT TIN
0039281243
molex
Conn Wire to Board HDR 24 POS 4.2mm Solder ST Thru-Hole Tray Conn Power HDR 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Bag CONN HEADER 24POS 4.2MM VERT TIN
0039299242
molex
Conn Wire to Board HDR 24 POS 4.2mm Solder ST Thru-Hole Tray Conn Power HDR 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Tray CONN HEADER 24POS 4.2MM VERT TIN

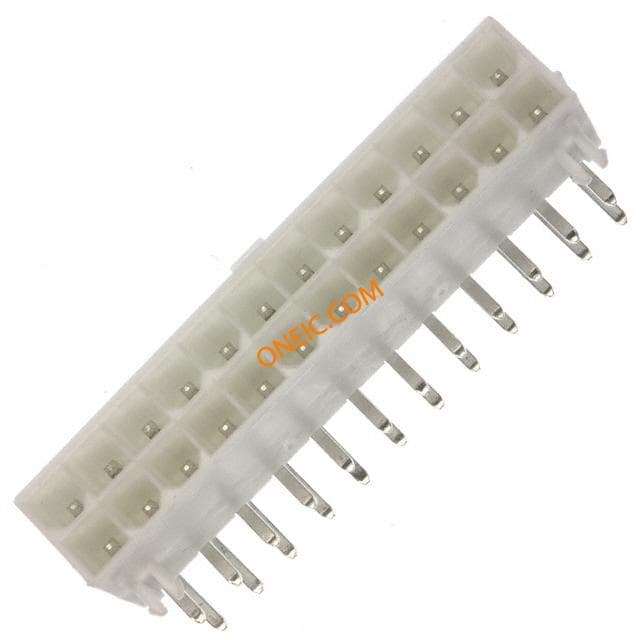

0039300240
molex
Conn Wire to Board HDR 24 POS 4.2mm Solder RA Thru-Hole Bulk Conn Power HDR 24 POS 4.2mm Solder RA Thru-Hole 24 Terminal 1 Port Bag CONN HEADER 24POS 4.2MM R/A TIN

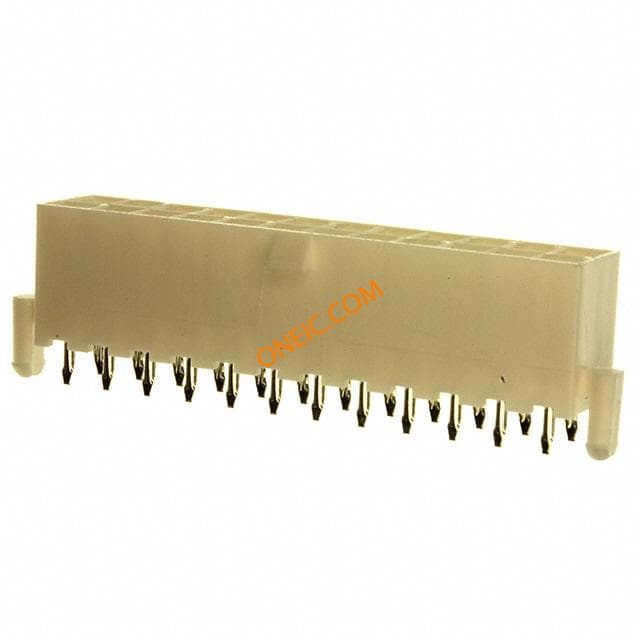

39-29-9246
molex
Conn Wire to Board HDR 24 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 24POS 4.2MM VERT TIN Molex 5566 Series 4.2mm Pitch 24 Way 2 Row Straight PCB Header, Solder Termination, 9A Headers & Wire Housings 24 CKT VERT HEADER Conn Power HDR 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Tray HEADER, 4.2MM, 24WAY Molex MINI-FIT JR. 系列 4.2mm节距 24路 (2排) 直 PCB 针座, 焊接端接, 9A , 通孔
39-28-9248
molex
Conn Wire to Board HDR 24 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 24POS 4.2MM STR GOLD Headers & Wire Housings 24 CKT VERT HEADER Conn Power HDR 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Tray

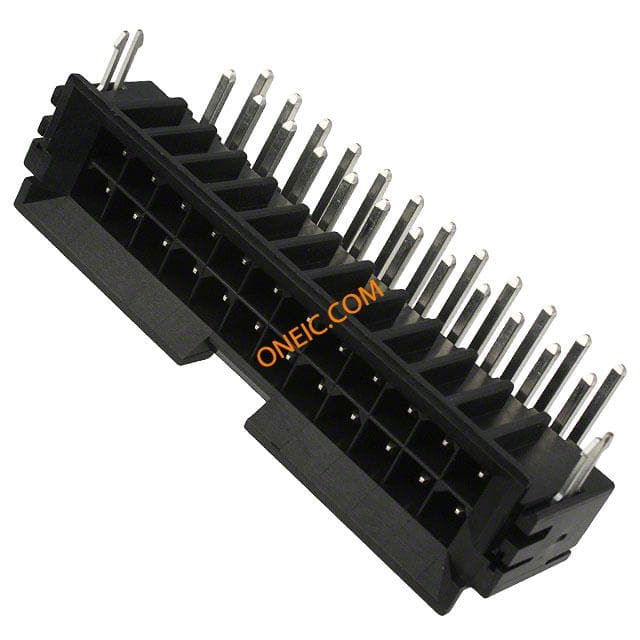

0438100011
Molex
Conn Power HDR 24 POS 4.2mm Solder RA Thru-Hole 24 Terminal 1 Port Tray MF SMC RA HDR W/CLIP TIN 24 CKT
0039296248
Molex
Conn Power HDR 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Bag CONN HEADER 24POS 4.2MM VERT GOL
0039291247
Molex
Conn Power HDR 24 POS 4.2mm Solder RA Thru-Hole 24 Terminal 1 Port Bag CONN HEADER 24POS DL R/A TIN
0442810011
Molex
Conn Power PL 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Bag MINIFIT CONTINUITY TST PLG DR
0015246242
Molex
Conn Power HDR 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Tray CONN HEADER VERT 24POS T/H
0039294249
Molex
Conn Power HDR 24 POS 4.2mm Solder RA Thru-Hole 24 Terminal 1 Port Bag CONN HEADER 24POS 4.20MM GOLD

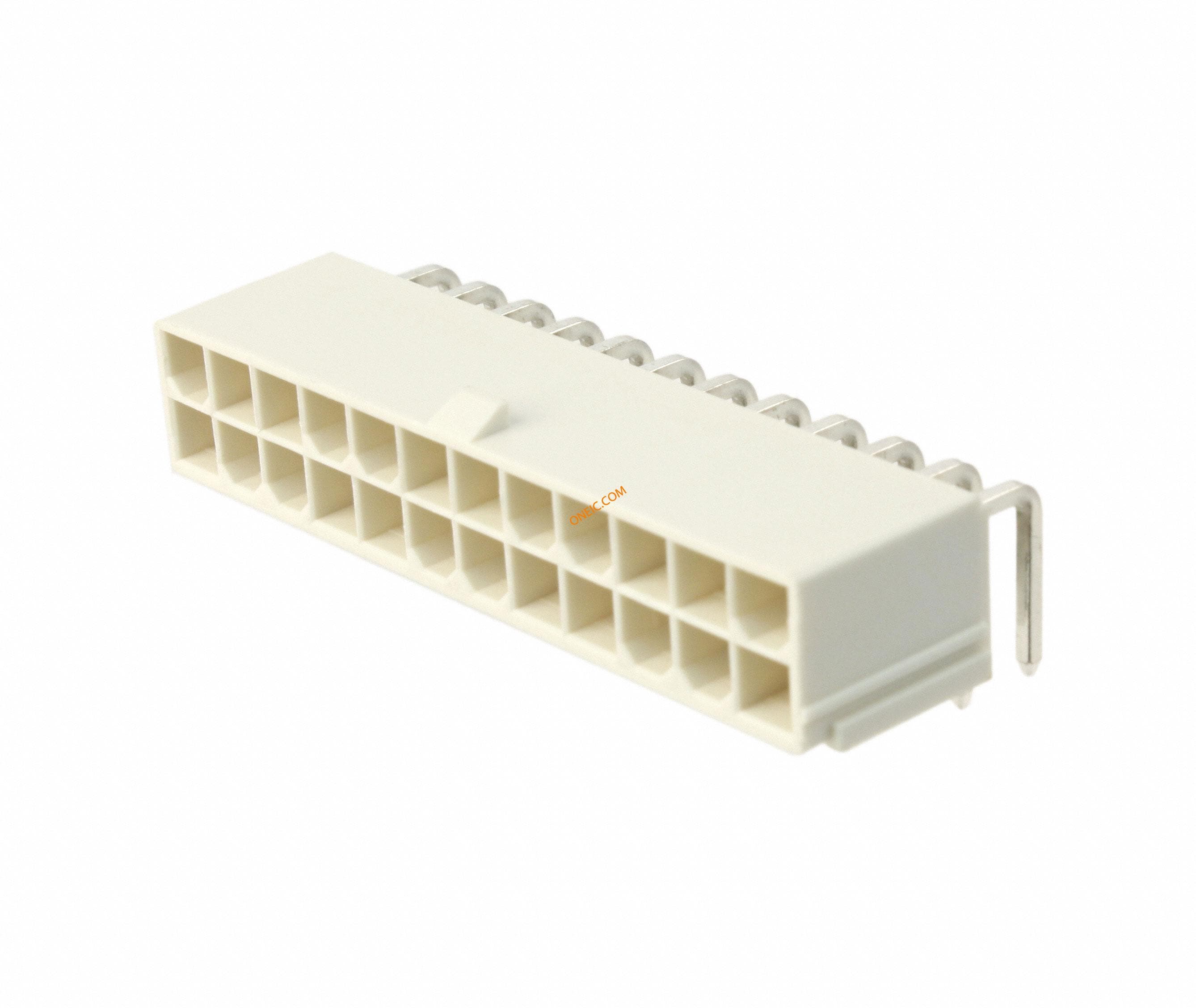

0874272402
Molex
Conn Power HDR 24 POS 4.2mm Solder RA Thru-Hole 24 Terminal 1 Port Tray 4.2MM WTB RA HEADER 24CKT
39-01-2241
Molex Connector Corporation
CONN PLUG 24POS PANEL MOUNT 24 way plug,panel ,Mini-Fit Jr dual row Headers & Wire Housings 24 CKT PLUG HOUSING Conn Housing M 24 POS 4.2mm Crimp ST Panel Mount Bag PLUG, MINI-FIT, 24WAY .165 mni-fit jr dual row, 24 circuits Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 24 路 直 公 压接连接器外壳
0460152407
Molex Inc
CONN RECEPT 24POS DUAL
0460152403
Molex Inc
CONN RECEPT 24POS DUAL

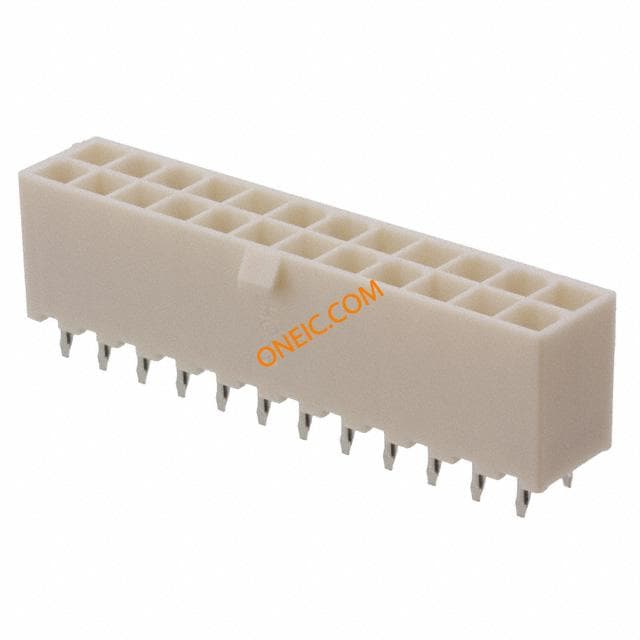

0460152406
Molex Inc
CONN HEADER VERT 24POS 4.2MM

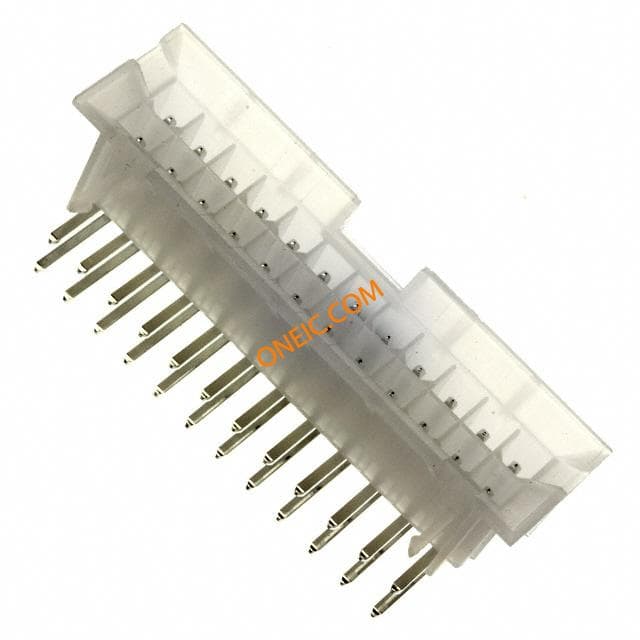

15-24-6240
Molex Connector Corporation
CONN HEADER 24POS 4.2MM R/A TIN Headers & Wire Housings R/A HDR DUAL ROW 24P Conn Power HDR 24 POS 4.2mm Solder RA Thru-Hole 24 Terminal 1 Port Tray

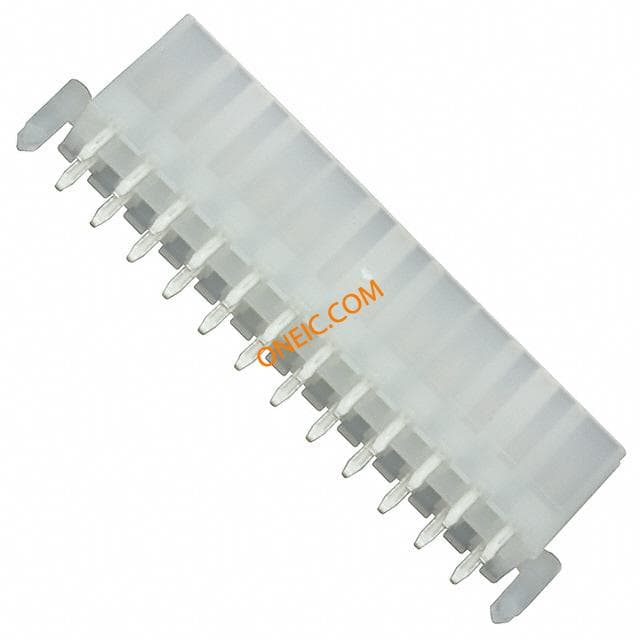

39-29-9244
Molex Connector Corporation
CONN HEADER 24POS 4.2MM STR GOLD Headers & Wire Housings 24 CKT VERT HEADER Conn Power HDR 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Tray

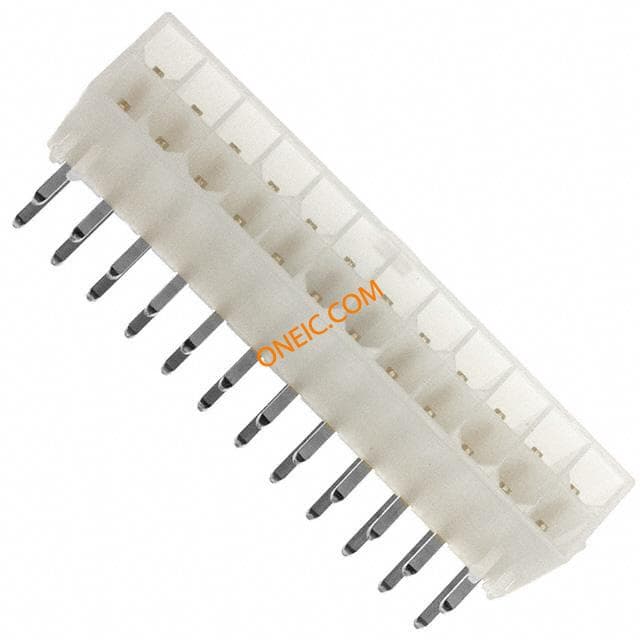

39-30-1241
