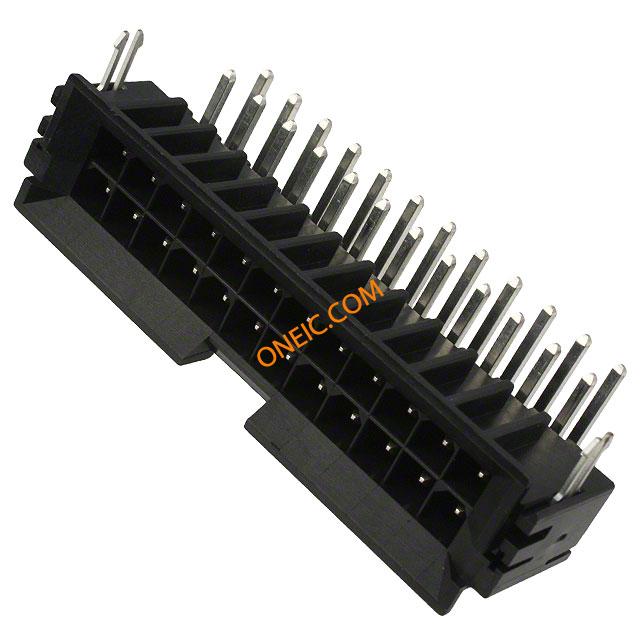

0438100011
| 制造商 | Molex, LLC |
| 描述 | Conn Power HDR 24 POS 4.2mm Solder RA Thru-Hole 24 Terminal 1 Port Tray MF SMC RA HDR W/CLIP TIN 24 CKT |
商业参数
| 标准包装数量 | 120 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 13/Contact | 最小输入电压 | 600V |
机械参数
| 颜色 | Black | 深度 | 20.69 |
| 间距 | 0.165" (4.20mm) | 高度 | 15 |
| 包装方式 | Tray | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Nickel | 紧固类型 | Latch Holder |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 总长度 | 60.81 |
| 触点数 | 24 | 位数 | 24 |
| 接触镀层厚度 | 100µin (2.54µm) | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 产品特性 | Board Lock | 端口数 | 1 |
| 加载位置数 | All | ||
环境参数
| 工作温度 | 105 | ||
