点击放大查看
0438790032
| 制造商 | Molex, LLC |
| 描述 | Conn Power HDR 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Tray CONN HEADER 24POS 4.2MM DUAL TIN |
商业参数
| 交货时间 | 36 Days | 子类别 | Connector Power |
| 标准包装数量 | 200 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 8/Contact | 最小输入电压 | 600V |
机械参数
| 颜色 | Black | 深度 | 15 |
| 间距 | 0.165" (4.20mm) | 高度 | 14.9 |
| 包装方式 | Tray | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 紧固类型 | Latch Holder |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon 4/6 | 总长度 | 60.81 |
| 触点数 | 24 | 位数 | 24 |
| 接触镀层厚度 | 100µin (2.54µm) | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 端口数 | 1 | 行业别名 | 43879-0032, 438790032 |
| 加载位置数 | All | ||
环境参数
| 工作温度 | 105 | ||
相关型号
0039012245
molex
Conn Housing RCP 24 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 24POS DUAL Conn Housing F 24 POS 4.2mm Crimp ST Cable Mount Bag
0039012240
molex
Conn Housing RCP 24 POS 4.2mm Crimp ST Bag CONN RECEPT 24POS DUAL
0015247241
molex
Conn Wire to Board RCP 24 POS 4.2mm Solder ST Thru-Hole Tray Conn Power RCP 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Tray CONN HEADER 24POS 4.2MM VERT TIN

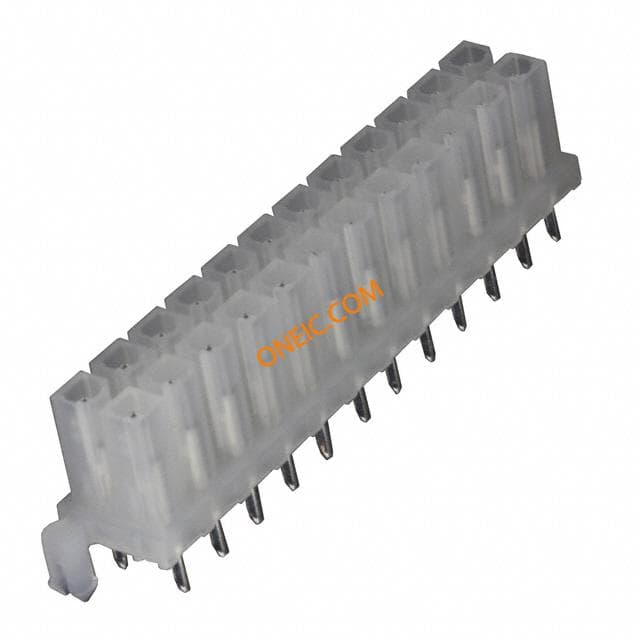

15-24-7240
Molex Connector Corporation
CONN HEADER 24POS 4.2MM VERT TIN Headers & Wire Housings RECPT VERT HDR 24P DUAL ROW Conn Power RCP 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Tray PLUG & SOCKET CONN, RCPT, 24POS, 4.2MM

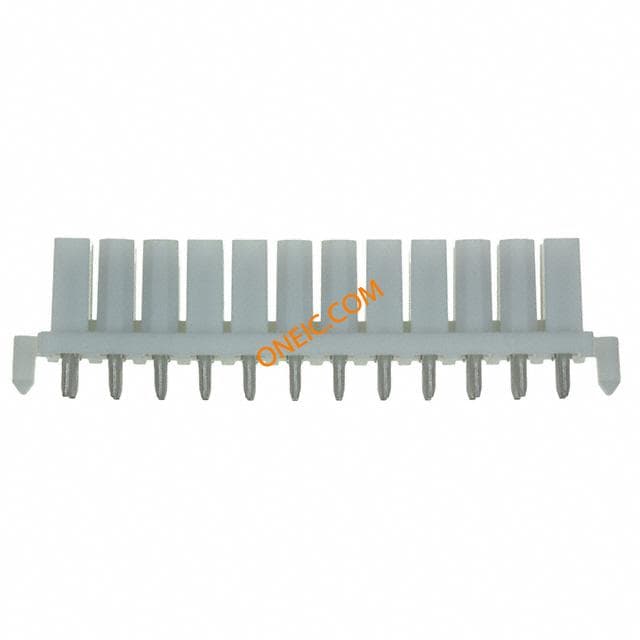

15-24-7243
