点击放大查看

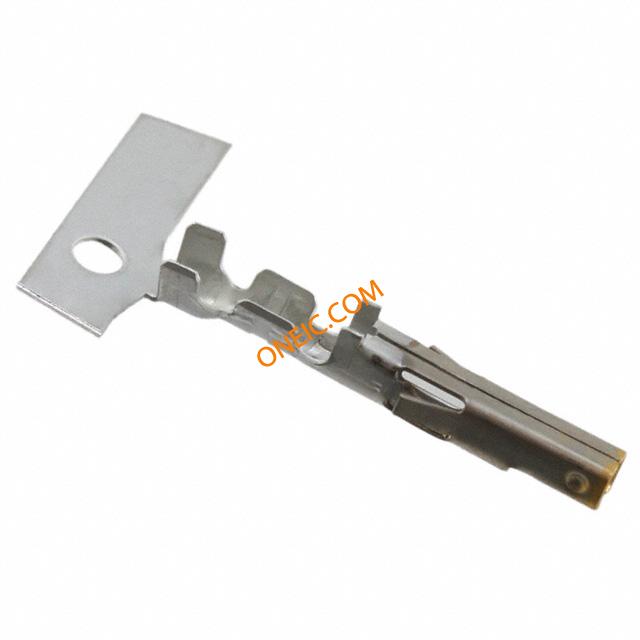

0039000183
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-28AWG 30GOLD |
| 分类 |
商业参数
| 其他名称 | WM18519CT | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 | 最大额定电流 | 9 |
机械参数
| 深度 | 2.3 | 高度 | 2.3 |
| 包装方式 | Reel | 导线线规 | 22-28 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 触头材料 | Phosphor Bronze |
| 总长度 | 14.7 | 接触件端接 | Crimp |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Power | 连接器性别 | SKT |
环境参数
| 工作温度 | 105 | ||
文档与媒体
相关型号
0011030044
molex
Connector Accessories Mini-Fit JR Extraction Tool Extraction Tool Handtool Type TOOL HAND EXTRACTION MINI-FIT JR
0638111000
molex
Connector Accessories Hand Crimp Tool Hand Crimper Handtool Type TOOL CRIMP 14-24AWG UNIVERSAL Tool: for crimping; 14÷24AWG
0039012160
molex
Conn Housing RCP 16 POS 4.2mm Crimp ST Bag CONN RECEPT 16POS DUAL
0439740002
Molex, LLC
. 0439740002 - 40 Position Housing for Female Sockets Connector Black Panel Mount Mini-Fit BMI from Molex. from now!
0039012060
molex
Conn Housing RCP 6 POS 4.2mm Crimp ST Bag CONN RECEPT 6POS DUAL
0039012125
molex
Conn Housing F 12 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 12POS DUAL
0439740005
Molex, LLC
. 0439740005 - 40 Position Housing for Female Sockets Connector Black Panel Mount Mini-Fit BMI from Molex. from now!

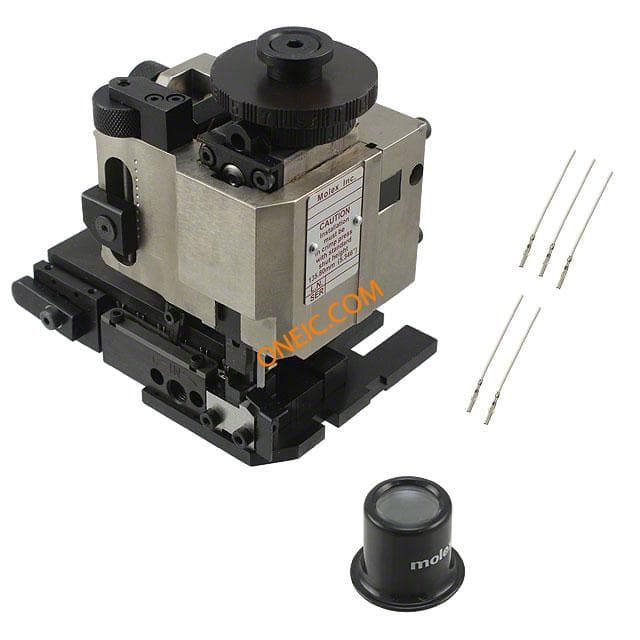

0639002700
