0039012160
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 16 POS 4.2mm Crimp ST Bag CONN RECEPT 16POS DUAL |
| 分类 |
商业参数
| 交货时间 | 20 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 13/Contact A | 最小供电电压 | 600VDC/600VAC |
| 连接器类型 - 电压输入 | Crimp | ||
机械参数
| 颜色 | Natural | 深度 | 19.6 mm |
| 间距 | 4.2 mm | 高度 | 15.1 mm |
| 包装方式 | Bag | 排间距 | 0.165" (4.20mm) |
| 触点形式 | Female Socket | 触头类型 | Female Socket |
| 引脚间距 | 0.165" (4.20mm) | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 排数 | 2 |
| 壳体材料 | Nylon 66 | 总长度 | 34.8 mm |
| 触点数 | 16 | 接触件端接 | Crimp |
| 位数 | 16 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mini-Fit® Jr™ 5557 |
| 行业别名 | 39-01-2160, 39012160 | 输出配置 | Free Hanging (In-Line) |
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0039301160
molex
Conn Wire to Board HDR 16 POS 4.2mm Solder RA Thru-Hole Bag CONN HEADER 16POS 4.2MM R/A TIN
0442810007
molex
Conn Wire to Board PL 16 POS 4.2mm Solder ST Thru-Hole Bag Conn Power PL 16 POS 4.2mm Solder ST Thru-Hole 16 Terminal 1 Port Bag MINIFIT CONTINUITY TST PLG DR

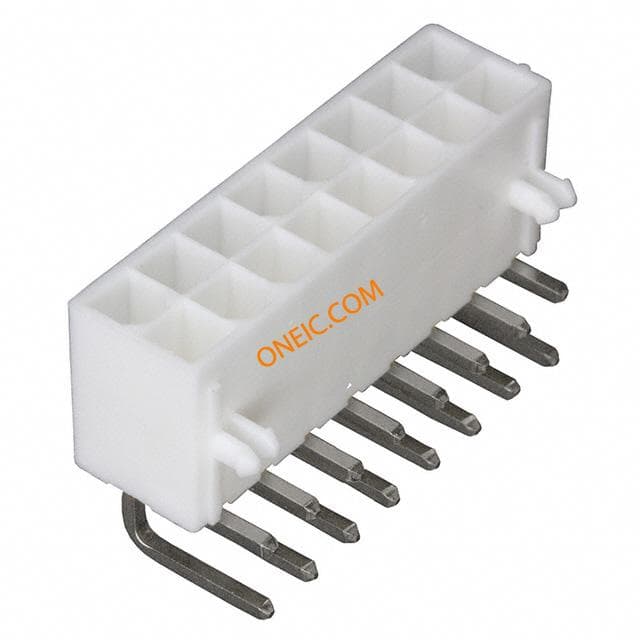

0039301162
molex
Conn Wire to Board HDR 16 POS 4.2mm Solder RA Thru-Hole Bulk CONN HEADER 16POS 4.2MM R/A GOLD

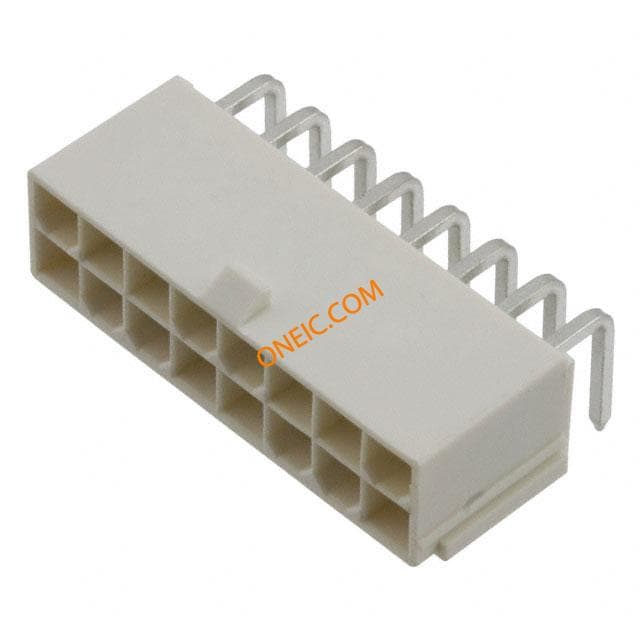

0874271602
molex
Conn Wire to Board HDR 16 POS 4.2mm Solder RA Thru-Hole Tray WIRE TO BOARD MINIFIT

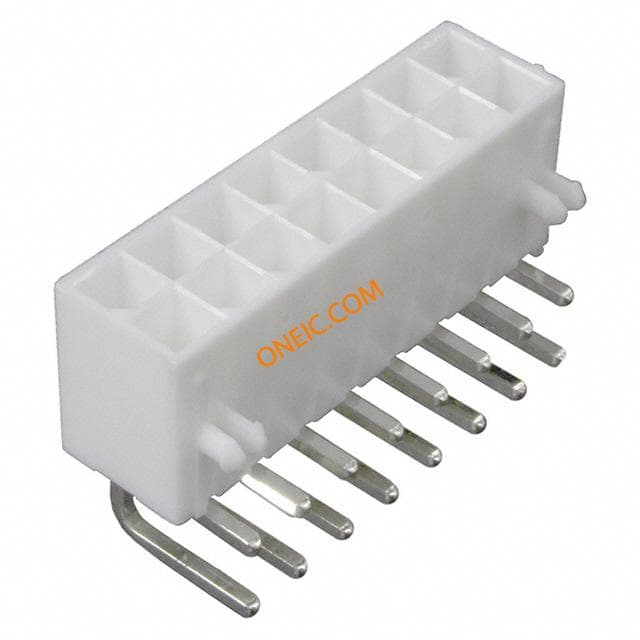

0039300160
molex
Conn Wire to Board HDR 16 POS 4.2mm Solder RA Thru-Hole Bulk CONN HEADER 16POS 4.2MM R/A TIN

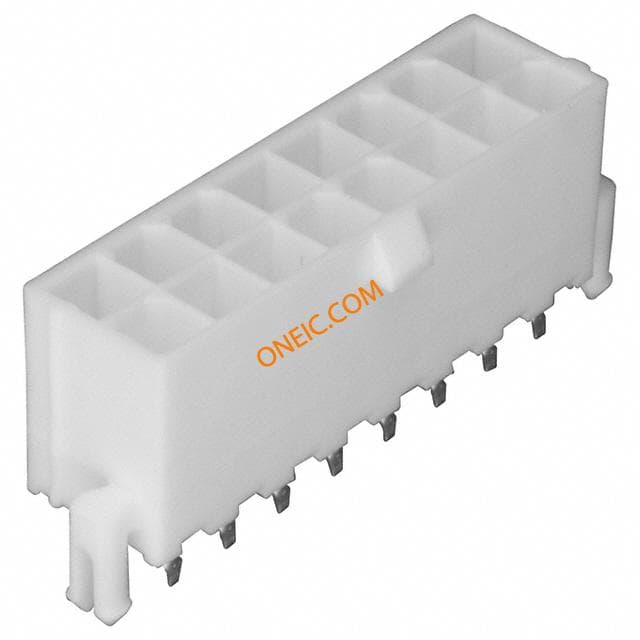

0039299169
molex
Conn Wire to Board HDR 16 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 16POS DL VERT GOLD
0039281163
molex
Conn Wire to Board HDR 16 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 16POS 4.2MM VERT TIN
39-29-0163
molex
Conn Wire to Board HDR 16 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 16POS 4.2MM STR GOLD Headers & Wire Housings 16 CKT VERT HEADER CONNECTOR, HEADER, 16POS, 2ROW, 4.2MM
39-01-3163
Molex
Headers & Wire Housings 16 CKT PLUG HOUSING Conn Housing M 16 POS 4.2mm Crimp ST Cable Mount Bag CONN PLUG 16POS VERT DUAL see 70190846 replacement

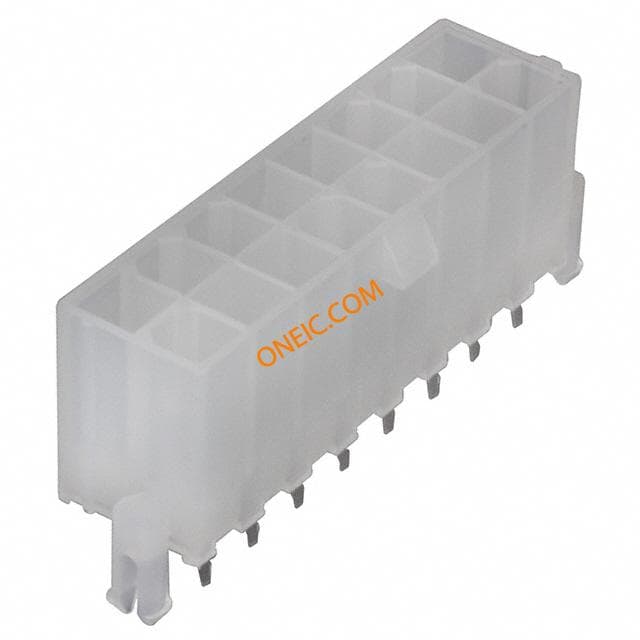

39-30-6167
molex
MINI-FIT JR. 16 CKT V-2 CONN HEADER 16POS 4.2MM VERT TIN Headers & Wire Housings 4.2MM 2R VERT16P HDR SN W/SNAP-IN PEG LCK Conn Wire to Board HDR 16 POS 4.2mm Solder ST Thru-Hole Tray
39-28-9168
molex
Conn Wire to Board HDR 16 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 16POS 4.2MM STR GOLD Headers & Wire Housings HDR VERT DUAL 16P PCB w/peg locks

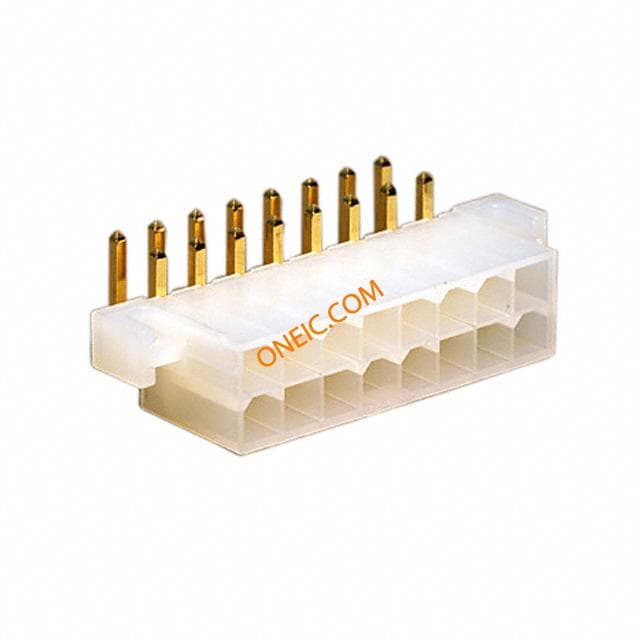

0039295163
Molex
Conn Wire to Board HDR 16 POS 4.2mm Solder RA Thru-Hole Bag CONN HEADER 16POS 4.2MM R/A GOLD

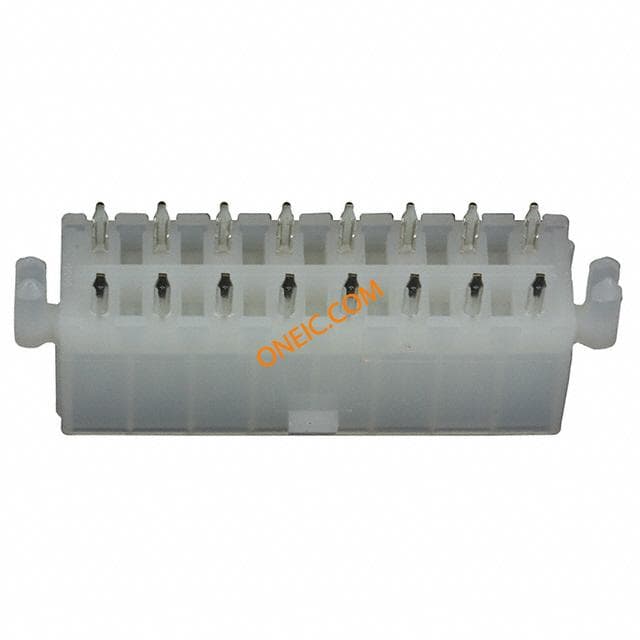

0039299163
Molex
Conn Wire to Board HDR 16 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 16POS 4.2MM VERT TIN
0039301161
Molex
Conn Wire to Board HDR 16 POS 4.2mm Solder RA Thru-Hole Bulk CONN HEADER 16POS 4.2MM R/A GOLD

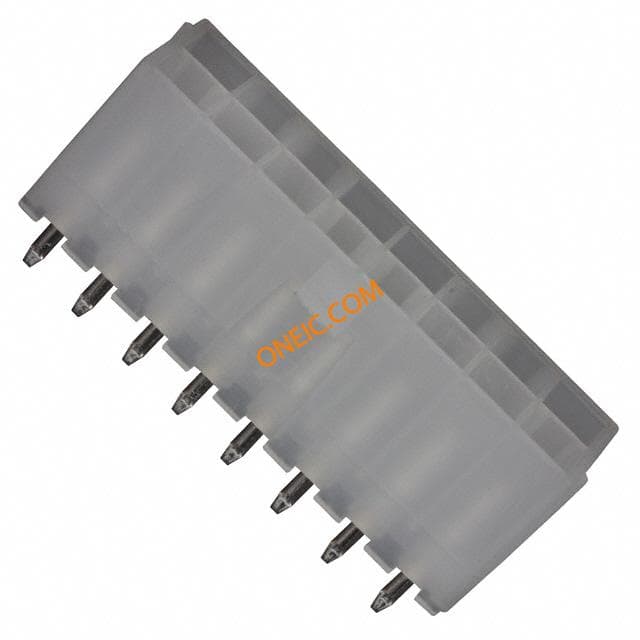

0039293166
Molex
Conn Wire to Board HDR 16 POS 4.2mm Solder ST Thru-Hole CONN HEADER 16POS 4.2MM VERT TIN

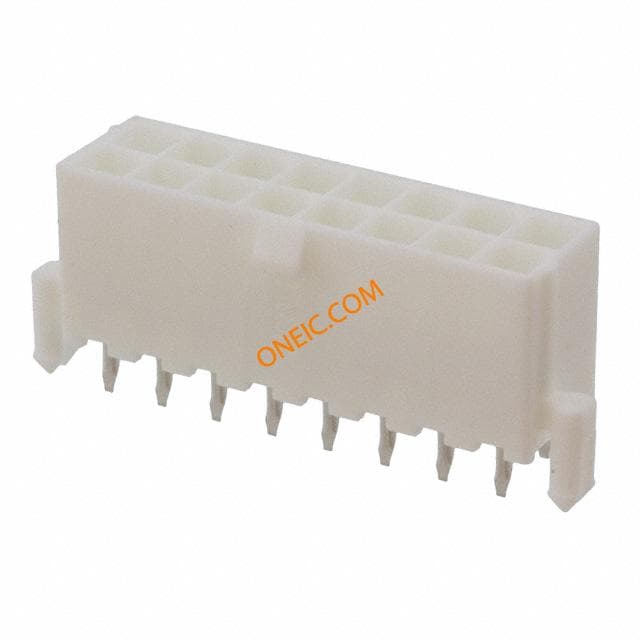

0460151603
Molex Inc
CONN HEADER 16POS DUAL

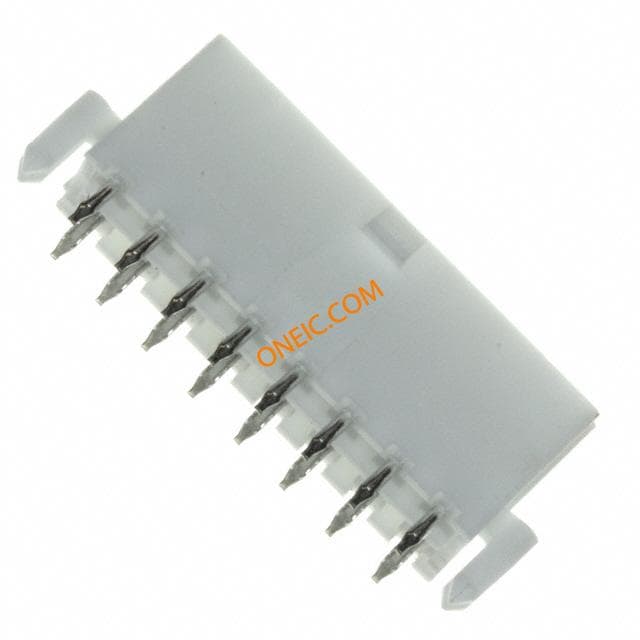

39-29-9166
Molex Connector Corporation
CONN HEADER 16POS 4.2MM VERT TIN Headers & Wire Housings 16 CKT VERT HEADER Conn Wire to Board HDR 16 POS 4.2mm Solder ST Thru-Hole Tray

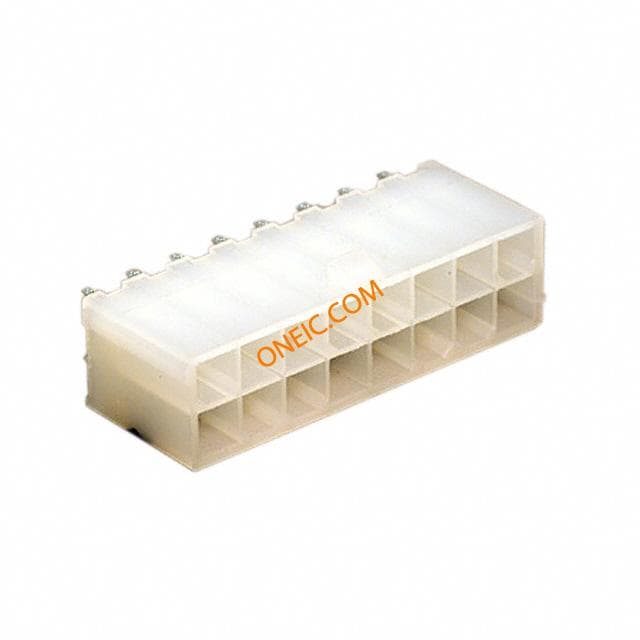

44472-1654
Molex Connector Corporation
CONN HEADER 16POS 4.2MM VERT TIN Headers & Wire Housings 4.20MM MINI FIT Vertical 16 CKT Conn Power HDR 16 POS 4.2mm Solder ST Thru-Hole 16 Terminal 1 Port Tray

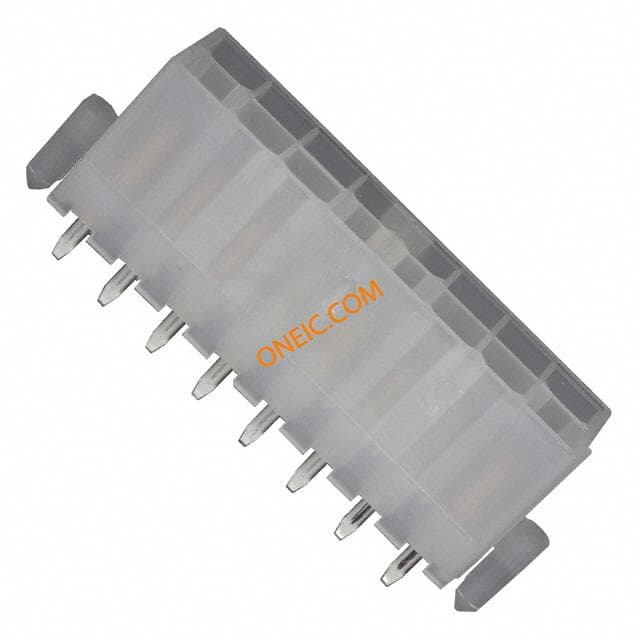

39-29-9164
