点击放大查看

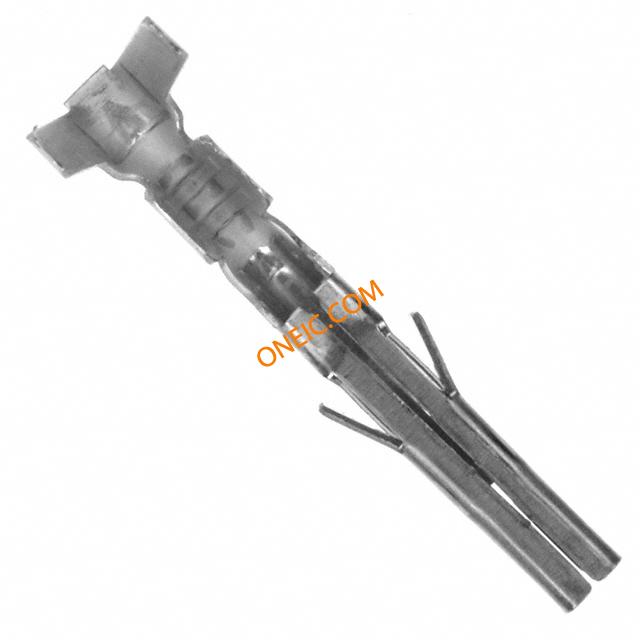

0039000182
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 18-24AWG GOLD Conn Contact F 1 POS Crimp ST Cable Mount Loose Piece |
| 分类 |
商业参数
| 交货时间 | 64 Days | 子类别 | Connector Contact |
| 标准包装数量 | 8,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 9 |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 深度 | 3.6 mm | 间距 | Not Required mm |
| 高度 | 4.5 mm | 包装方式 | Loose Piece |
| 导线线规 | 18-24 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Recepta... |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 14.7 mm | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 行业别名 | 39-00-0182, 39000182 | 适用产品/相关产品 | 00390001810039000154 |
环境参数
| 工作温度 | -40C to 105C | ||
