点击放大查看

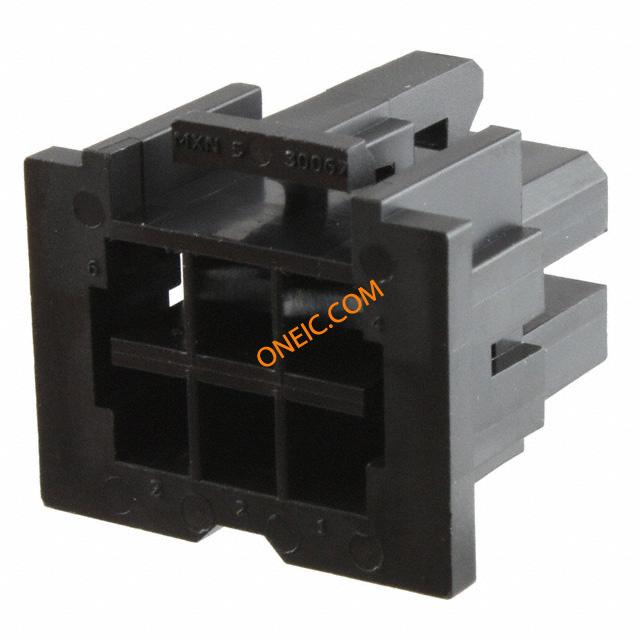

15-97-5061

制造商	Molex, LLC
描述	CONN RCPT 6POS DUAL MINI-FIT Headers & Wire Housings TPA RECPT DUAL 6P Conn Housing RCP 6 POS 4.2mm Crimp ST Bag RECEPT, MINI-FIT TPA, 4.2MM, 6WAY MINIFIT TPA RECEPTACLE V-0
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	Mini-Fit TPA	零件号别名	0015975061 30067-06A2
产品类别	Headers & Wire Housings	标准包装数量	1
工厂包装数量	3000

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85472000

电气参数

最大额定电流

13 A

机械参数

颜色	Black	间距	0.165" (4.20mm)
重量	0.002	包装方式	Bulk
排间距	0.217" (5.51mm)	触头类型	Female Socket
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
紧固类型	Latch Lock	安装样式	Wire
排数	2	壳体材料	Polyester
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	6	接触件端接	Crimp
位数	6

产品信息

备注	Contacts Not Provided	连接器性别	:Socket
系列	30067	产品子类型	Receptacles / Sockets - Housings
适用产品/相关产品	:TPA and CPA Pieces

文档与媒体

PDF 文档

0015975061_CRIMP_HOUSINGS.pdf

相关型号

0039000186

molex

Contact F Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 16AWG GOLD Contact SKT Crimp ST Cable Mount Loose Piece

¥2.5398

详情

0015978067

molex

Conn Wire to Board HDR 6 POS 4.2mm Solder RA Thru-Hole Tray CONN HEADER 6POS DUAL GOLD R/A

¥8.9488

详情

0039000207

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN

¥0.2700

详情

0039000183

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-28AWG 30GOLD

¥2.4031

详情

0039000213

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN

¥0.5664

详情

暂无图片

0039000180

molex

Contact SKT Crimp ST Cable Mount Loose Piece MINI FIT JR. TERM. BL/PT/FORM

¥2.2508

详情

暂无图片

39-00-0055

Molex

Headers & Wire Housings SOCKET 18-24AWG REEL CONN TERM FEMALE 18-24AWG GOLD

详情

0015977062

Molex

Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Bag CONN HEADER 6POS 4.2MM STR TIN

¥4.2826

详情

0039000182

Molex

Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 18-24AWG GOLD Conn Contact F 1 POS Crimp ST Cable Mount Loose Piece

¥2.5038

详情

0039000217

Molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 16AWG TIN

¥0.6738

详情

暂无图片

0039000155

Molex

Contact SKT Crimp ST Cable Mount

详情

0015978062

Molex

Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Tray CONN HEADER R/A TIN 6CKT

¥5.5842

详情

39-00-0154

molex

Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 18-24AWG 30GOLD CONTACT, CRIMP, SOCKET, 24-18AWG

¥0.5732

详情

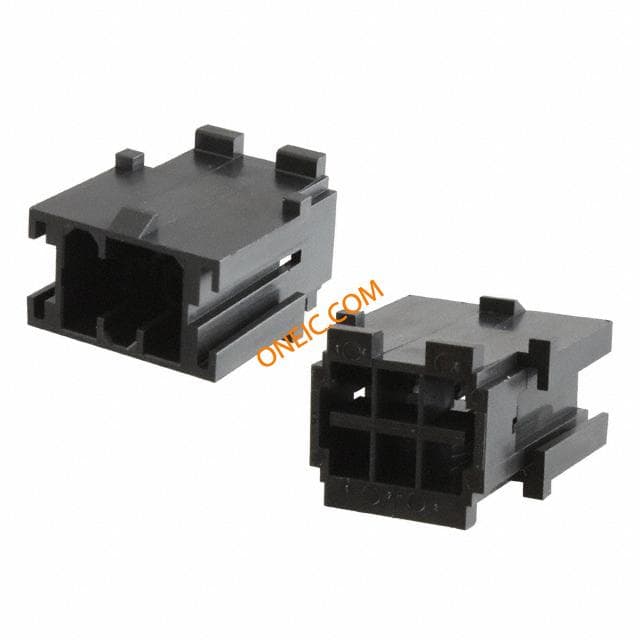

15-97-6061
