03-09-2061
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 6POS .093 PANEL MOUNT Molex 5.03mm 6 Way 2 Row Straight Male Housing Receptacle Pin & Socket Connectors 6 CIRCUIT PLUG Conn Housing PL 6 POS 5.03mm Crimp ST Bag HOUSING, MULTIPOLE, PLUG, 6WAY, NYLON TERMINAL HOUSE; STD; PLUG W/MNT EAR & DTENT LCK; 6 CIRCUITS Molex STANDARD .093" 系列 6路 (2行) 5.03mm节距 直 外壳 |
| 分类 |
商业参数
| 商标名 | Standard .093 in | 零件号别名 | 0003092061 1261-P 3092061 |
| 产品类别 | Pin & Socket Connectors | 工厂包装数量 | 1500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 认证机构标志 | CSA, UL | 材料阻燃等级 | :UL94V-2 |
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 介电强度 | :1500V/m | 击穿电压 | :3mV |
| 最大额定电流 | 11A | ||
机械参数
| 颜色 | Natural | 间距 | 5.03mm |
| 重量 | 0.004 | 材料（通用） | :Clear nylon |
| 导线线规 | :0.597mm² | 端接方式 | Crimp |
| 安装类型 | Straight | 释放力 | :0.027N |
| 行程角度 | Straight | 排数 | 2 |
| 封装形式 | :Plug | 插入力 | :0.034N |
| 本体材料 | :Nylon (Polyamide) | 壳体材料 | Nylon |
| 总长度 | 1 " | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male), Socket (Female) | 触点数 | 6 |
| 面板开孔形状 | :19.05x17.65mm | 位数 | :6 |
| 安装孔直径 | 0.75×0.695 " | 线规或范围 - mm² | :1.68mm² |
| 外径-未扩张 | :4.06mm | ||
产品信息
| 类型 | Panel Plug | 连接器性别 | Male |
| 系列 | 1261 | CAD图纸 | 3D CAD Model |
| 制造商全称 | 1261 Series | 产品子类型 | Plug Housings |
| 适用产品/相关产品 | :1189, 1190, 1380, 1381, 1434, 1434, Crimp Terminals | ||
环境参数
| 工作温度 | :105°C | ||
文档与媒体
相关型号

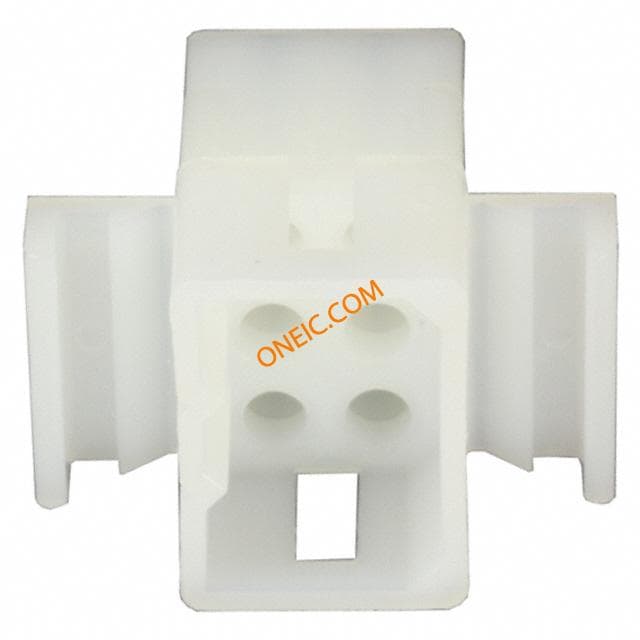

770089-1
