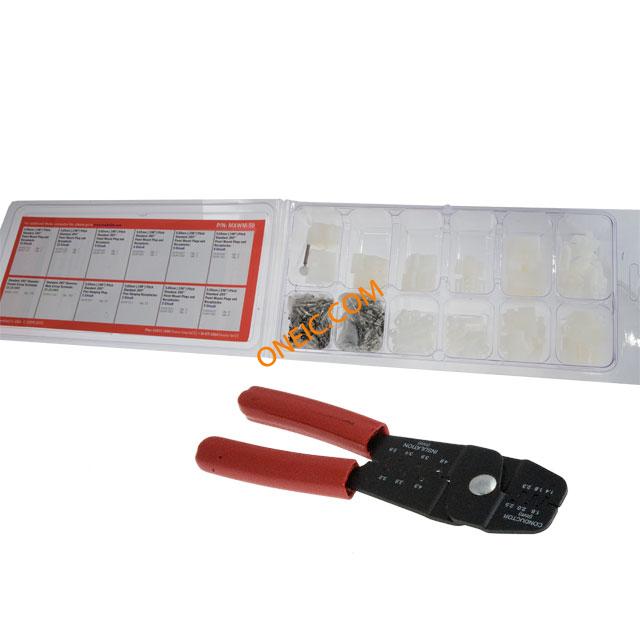

76650-0011
| 制造商 | Molex, LLC |
| 描述 | Wire To Wire Kit For Panel Mount Plugs, Receptacles Kit KIT CONN STD .093" SERIES Pin & Socket Connectors .093 CONNECTOR KIT PREM CRIMPTOOL 282PC Kit Description:Panel Mount Plug and Receptacle, with Extraction Tool and Premium Crimp Tool, 5-20 A, 250VKit Category:Wire to Wire Solution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:292 .093IN PWR CONNECTOR KIT PANEL MNT PLUG& RECEPT, W/ EXTRACTION & CRIMP TOOLS |
| 分类 |
商业参数
| 零件号别名 | WM-50 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 250/600 V | 额定电压 | 250 V, 600 V |
| 最大额定电流 | 5 A to 10 A | ||
机械参数
| 间距 | 5.03 mm | 包装方式 | Plastic Box with Bin Guide |
| 导线线规 | 22-18 | 行程角度 | Panel Mount/FreeHanging |
| 连接器类型 | Plug and Receptacle | 安装样式 | Free Hanging, Panel |
| 壳体材料 | Nylon | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male), Socket (Female) | 触点数 | 30 |
| 线规或范围 - AWG | 22-18 | ||
产品信息
| 系列 | 76650 | 值 | 292 pcs - Assorted 1 ~ 6, 9, 12, 15 Circuit Plug, Receptacle, 22 ~ 18 AWG Pins, Sockets |
| 套件类型 | Circuit Plug, Receptacle | 制造商全称 | 76650 |
| 产品子类型 | Kits | 配置 | Wire-to-Wire, Panel Mount |
文档与媒体
相关型号
63811-1000
Molex
Crimpers UNIVERSAL CRIMP TOOL Hand crimper for 1.57mm dia. Standard Hand Crimper Handtool Type CRIMP TOOL Hand Tool; Non-ratched Crimping tool, 63811-1000, Molex Molex HANDTOOL 系列 接端 压接工具 , 适用于30 → 14 AWG 线规格

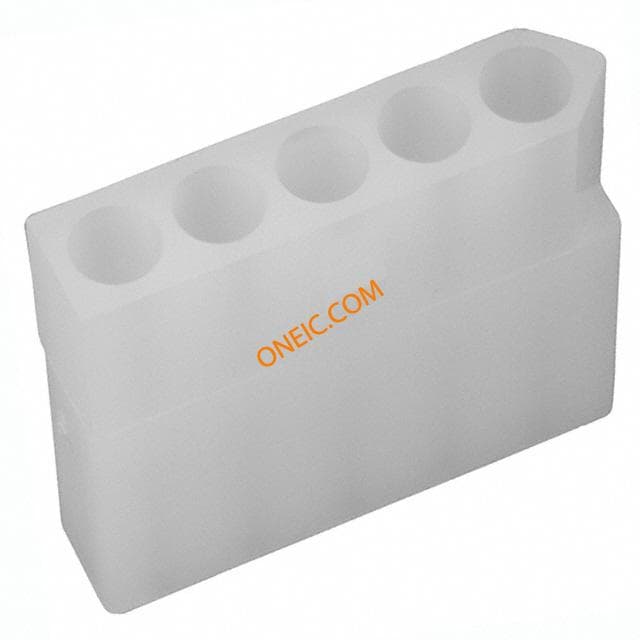

03-09-1054
Molex
Pin & Socket Connectors 5 CIRCUIT RECEPTACLE Conn Housing RCP 5 POS 5.03mm Crimp ST Bag CONN RECEPT 5POS .093
03-09-1011
Molex Connector Corporation
CONN RECEPTACLE 1POS .093 Molex 1 Way 1 Row Straight Female Housing Receptacle Pin & Socket Connectors 1 CIRCUIT RECEPTACLE Conn Housing RCP 1 POS Crimp ST Bag RECEPTACLE, 0.093", 1WAY TERMINAL HOUSE; STD; RECEPTCL W/DTENT LCKONLY; 1 CIRCUIT Molex STANDARD .093" 系列 1路 直 外壳
03-09-1027
Molex Connector Corporation
CONN RECEPT 2POS .093 PANEL MNT Molex 6.3mm 2 Way 1 Row Straight Female Housing Receptacle Pin & Socket Connectors 2 CIRCUIT RECEPTACLE Conn Housing RCP 2 POS 6.3mm ST Bag Conn Housing RCP 2 POS 6.3mm Crimp ST Bag HOUSING, 6.3MM, 2WAY TERMINAL HOUSE; STD; RECEPT W/MNT EAR & DTENT LCK; 2 CIRCUIT Molex STANDARD .093" 系列 2路 6.3mm节距 直 外壳
03-09-1081
Molex Connector Corporation
CONN RECEPT 3POS .093 PANEL MNT Pin & Socket Connectors 3 CIRCUIT RECEPTACLE Conn Housing RCP 3 POS 5.03mm Crimp ST Bag PLUG & SOCKET HOUSING, RECEPTACLE, NYLON TERMINAL HOUSE; STD; RECEPT W/MNT EAR & DTENT LCK; 3 CIRCUIT
03-09-1041
Molex Connector Corporation
CONN RECEPT 4POS .093 PANEL MNT Molex 5.03mm 4 Way 1 Row Straight Female Housing Receptacle Pin & Socket Connectors 4 CIRCUIT RECEPTACLE Conn Housing RCP 4 POS 5.03mm Crimp ST Bag CONNECTOR HOUSING, RECEPTACLE, NYLON TERMINAL HOUSE; STD; RECEPT W/MNT EAR & DTENT LCK; 4 CIRCUIT Molex STANDARD .093" 系列 4路 5.03mm节距 直 外壳

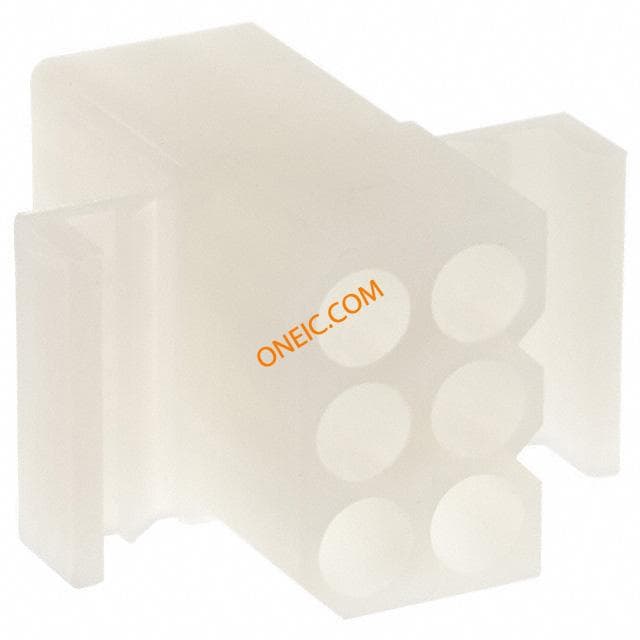

03-09-1061
