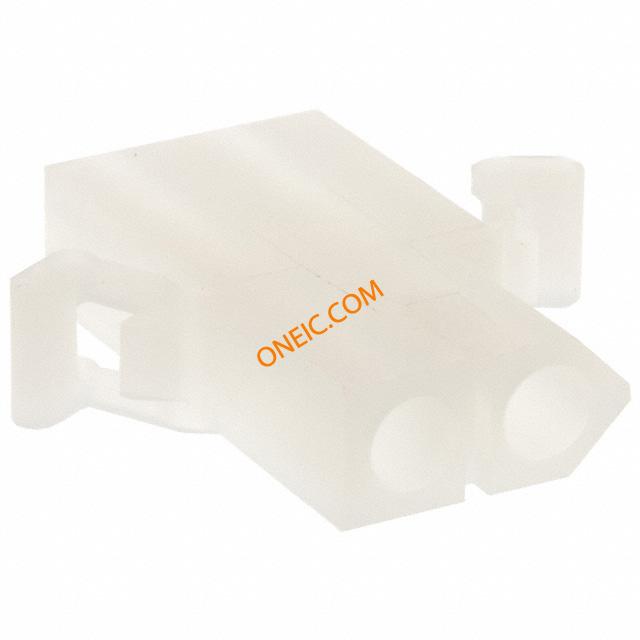

03-09-1027
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 2POS .093 PANEL MNT Molex 6.3mm 2 Way 1 Row Straight Female Housing Receptacle Pin & Socket Connectors 2 CIRCUIT RECEPTACLE Conn Housing RCP 2 POS 6.3mm ST Bag Conn Housing RCP 2 POS 6.3mm Crimp ST Bag HOUSING, 6.3MM, 2WAY TERMINAL HOUSE; STD; RECEPT W/MNT EAR & DTENT LCK; 2 CIRCUIT Molex STANDARD .093" 系列 2路 6.3mm节距 直 外壳 |
| 分类 |
商业参数
| 商标名 | Standard .093 in | 零件号别名 | 0003091027 1545-R3 3091027 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 10 |
| 工厂包装数量 | 4500 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366990 | 认证机构标志 | CSA, UL |
| 材料阻燃等级 | UL94V-2 | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 14A |
机械参数
| 颜色 | Natural | 间距 | 0.248" (6.30mm) |
| 高度 | 7.4mm | 重量 | 0.018 |
| 包装方式 | Bulk | 端接方式 | Crimp |
| 触头类型 | Male or Female | 安装类型 | Panel Mount, Snap-In |
| 行程角度 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 壳体材料 | Nylon | 总长度 | 1.03 " |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male), Socket (Female) |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | 安装孔直径 | 0.725×0.312 " |
产品信息
| 备注 | Contacts Not Provided | 类型 | Panel Socket |
| 连接器性别 | Female | 系列 | 1545 |
| CAD图纸 | 3D CAD Model | 制造商全称 | 1545 Series |
| 产品子类型 | Receptacle Housings | 适用产品/相关产品 | :1189, 1190, 1434, 1973 Crimp Terminals |
环境参数
| 工作温度 | -40 to +105 °C | ||
