0002092116
| 制造商 | Molex, LLC |
| 描述 | Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-22AWG TIN |
| 分类 |
商业参数
| 交货时间 | 29 Days | 其他名称 | WM1102CT |
| 子类别 | Connector Contact | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 17 A |
机械参数
| 深度 | 4.39 mm | 间距 | Not Required mm |
| 高度 | 3.56 mm | 镀层 | Tin |
| 材料（通用） | Brass | 包装方式 | Reel |
| 导线线规 | 18-22 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Tin | 安装样式 | Cable |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 总长度 | 21.97 mm | 触点数 | Not Required |
| 接触件端接 | Crimp | 镀层厚度（通用） | 20µin (0.51µm) |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 行业别名 | 02-09-2116, 02092116, 2/9/2116, 2092116 | 适用产品/相关产品 | 0002092118 |
环境参数
| 工作温度 | -40C to 105C | ||
相关型号
0003092049
molex
Conn Housing PL 4 POS 5.03mm Crimp ST Bag CONN PLUG 4POS .093
0011402002
molex
Connector Accessories Crimp Terminator Die Set Terminator Die With Function Crimp T8300B TERMINATOR ASSEMBLY
0011020003
molex
HT1353 FTSERTION TOOL Hand Insertion Tool, Inexpensive Disposable Tools INSERTION TOOL HT1353
0638111000
molex
Connector Accessories Hand Crimp Tool Hand Crimper Handtool Type TOOL CRIMP 14-24AWG UNIVERSAL Tool: for crimping; 14÷24AWG
0011030006
molex
Connector Accessories Extractor Tool Extraction Tool Handtool Type TOOL EXTRACTION MOLEX .093 TERM
0003092031
molex
Conn Housing PL 3 POS 5.03mm Crimp ST Bag CONN PLUG 3POS .093 PANEL MOUNT
0638924000
molex
Connector Accessories Mini Mac Applicator Tool MINI MAC APPLICATOR
0638927000
molex
Connector Accessories Mini Mac Applicator Tool MINI MAC APPLICATOR
03-09-2091
molex
Conn Housing PL 9 POS 5.03mm Crimp ST Bag CONN PLUG 9POS .093 PANEL MOUNT Molex 5.03mm 9 Way 3 Row Straight Male Housing Receptacle Pin & Socket Connectors 9 CIRCUIT PLUG 2.36mm Diameter Standard .093" Pin and Socket Plug Housings, 9 Circuits, 3 Rows CONNECTOR HOUSING, PLUG, 9 WAY, NYLON TERMINAL HOUSE; STD; PLUG W/MNT EAR & DTENT LCK; 9 CIRCUITS Molex STANDARD .093" 系列 9路 (3行) 5.03mm节距 直 自由悬挂 外壳
19-09-2032
molex
Conn Housing F 3 POS 6.3mm Crimp ST Cable Mount Bag CONN HOUSING PLUG 3POS .093 Plug Housing 2.36mm,without ears,3way Pin & Socket Connectors 3P PLUG W/O EARS 2.36mm Diameter, .093" Pin and Socket Plug Housing with Positive Latch, 3 Circuits, without Mounting Ears Molex STANDARD .093" 系列 6.3mm 节距 3 路 直 公 面板安装 压接连接器外壳
03-09-2048
Molex
Pin & Socket Connectors 4 CIRCUIT PLUG
0003092121
Molex
Conn Housing PL 12 POS 5.03mm Crimp ST Bag CONN PLUG 12POS .093
0003091126
Molex, LLC
Buy now, ships today. 0003091126 - 12 Position Rectangular Housing Connector Receptacle Natural 0.198" (5.03mm) from Molex. View datasheets, pricing and availability from DigiKey now!
03-09-2041
Molex Connector Corporation
CONN PLUG 4POS .093 PANEL MOUNT Molex 5.03mm 4 Way 1 Row Straight Male Housing Receptacle Pin & Socket Connectors 4 CIRCUIT PLUG Conn Housing PL 4 POS 5.03mm ST Bag 2.36mm Diameter Standard .093" Pin and Socket Plug Housing, 4 Circuits, Single Row TERMINAL HOUSE; STD; PLUG W/MNT EAR & DTENT LCK; 4 CIRCUITS Molex STANDARD .093"" 系列 5.03mm 节距 4 路 直 公 压接连接器外壳

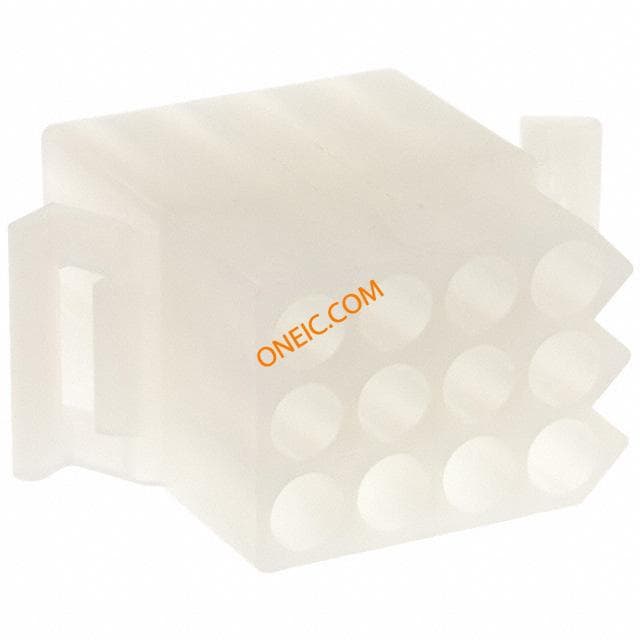

03-09-1125
Molex Connector Corporation
CONN RECEPT 12POS .093 PANEL MNT Pin & Socket Connectors 12C RECEPTACLE PLUG & SOCKET HOUSING, RECEPTACLE, NYLON

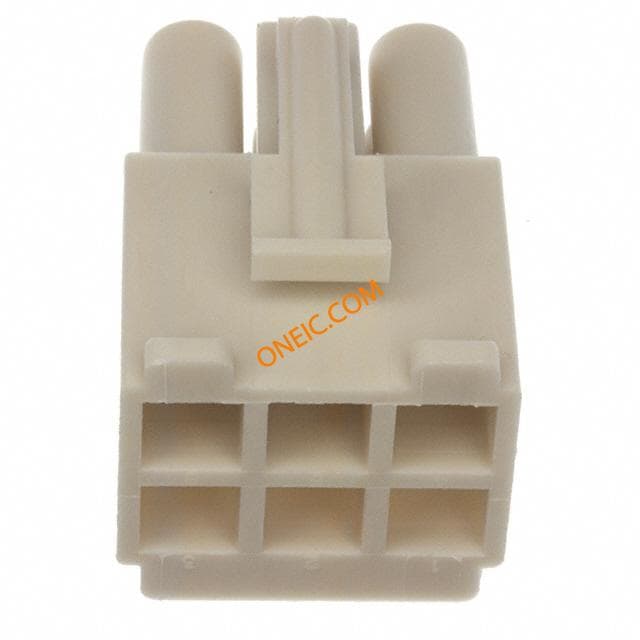

19-09-1066
Molex Connector Corporation
CONN RECEPTACLE 6POS .093 Pin & Socket Connectors RECPT W/POS LATCH 6P 2.36mm Diameter Standard .093" Pin and Socket Receptacle Housing with Positive Latch, UL 94V-0, 6 Circuits 6CKT2.36MMRECHOUSING319106R1201
19-09-2061
Molex Connector Corporation
CONN PLUG 6POS .093 PANEL MOUNT Plug Housing 2.36mm,with ears,6way Pin & Socket Connectors 2.36MM PLUG HOUSE 6 CKT 2.36mm Diameter, .093" Pin and Socket Plug Housing with Positive Latch, 6 Circuits, with Standard Mounting Ears Molex STANDARD .093" 系列 2 行 6.3mm 节距 6 路 直 公 压接连接器外壳
0003091093
Molex
CONN RCPT 9CKT .093 Conn Housing RCP 9 POS 5.03mm Crimp ST Bag

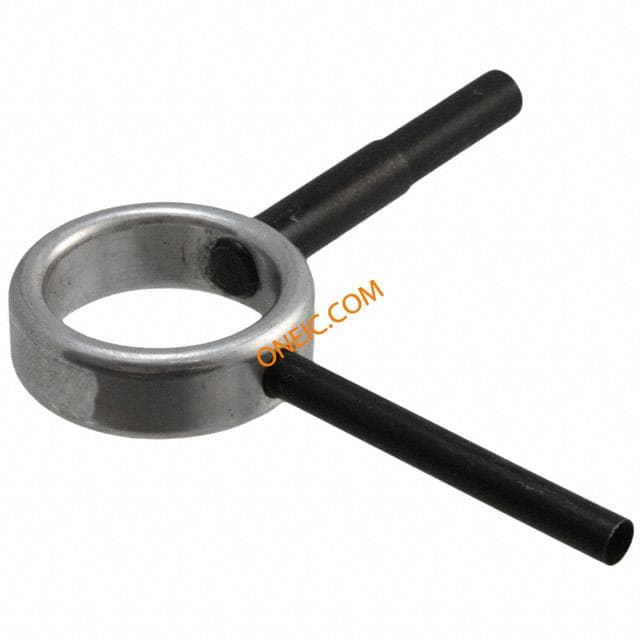

0638240200
