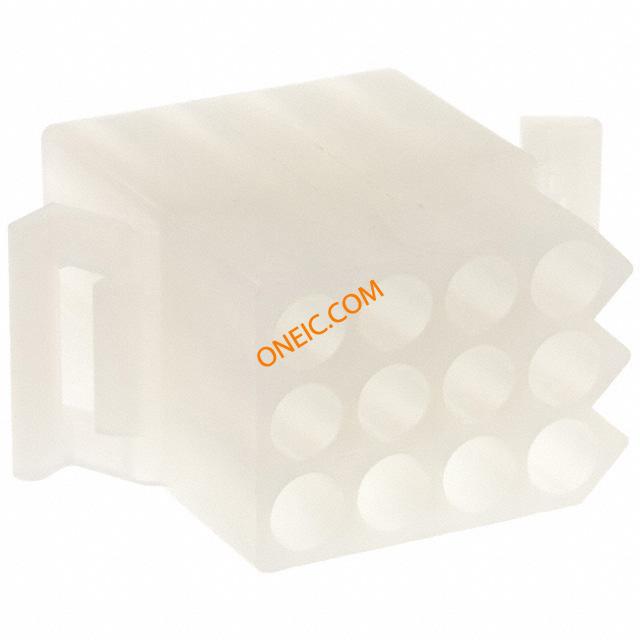

03-09-1125
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 12POS .093 PANEL MNT Pin & Socket Connectors 12C RECEPTACLE PLUG & SOCKET HOUSING, RECEPTACLE, NYLON |
| 分类 |
商业参数
| 商标名 | Standard .093 in | 零件号别名 | 0003091125 1360-R2 3091125 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 5 |
| 工厂包装数量 | 1200 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 最大额定电流 | 9.5 A | ||
机械参数
| 颜色 | Natural | 间距 | 0.198" (5.03mm) |
| 重量 | 0.000001 | 包装方式 | Bulk |
| 排间距 | 0.198" (5.03mm) | 触头类型 | Male or Female |
| 基体材料 | :PA Polyamide (Nylon) 6/6 | 安装类型 | Panel Mount, Snap-In |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 排数 | 3 | 壳体材料 | Nylon |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male), Socket (Female) |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | 1360 |
| 产品子类型 | Receptacle Housings | 适用产品/相关产品 | :1189, 1190, 1434, 1973 Crimp Terminals |
文档与媒体
相关型号
0002091119
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-22AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag
0002092116
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-22AWG TIN
0002092118
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 18-22AWG TIN Conn Contact M 1 POS Crimp ST Cable Mount Bag
0002092101
Molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 14-20AWG TIN Connetor
0010181122
molex
Conn Shrouded Header HDR 12 POS 5.03mm Solder ST Thru-Hole Bag TERM BLK SKT 12POS 2.36MM
0002092103
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 14-20AWG TIN
0002091104
Molex, LLC
. 0002091104 - Socket Contact Tin 14-20 AWG Crimp Power from Molex. from now!
02-09-5132
molex
CONN CONT F 1 POS CRMP ST CBL MNT CONN TERM FEMALE SOLDER GOLD PCB Pin & Socket Connectors 2.36MM PIN & SOCKET Female Contact SKT Crimp ST Cable Mount Bag
02-09-6145
Molex
Pin & Socket Connectors TERMINAL .093 MALE CONN TERM MALE 24-30AWG GOLD
02-09-1139
Molex
Pin & Socket Connectors SOCKET 22-24AWG BULK CONN TERM FEMALE 22-24AWG TIN Contact SKT Crimp ST Cable Mount Bag
02-09-5142
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-22AWG GOLD Crimp 2.36mm,,fem,18-22 AWG,Aubag Pin & Socket Connectors SOCKET 18-22AWG BULK .093 TERMINAL FEMALE 18-22 Molex STANDARD .093" 系列 母 压接接线端子, 压接, 镀金镀镍触点
0003092121
Molex
Conn Housing PL 12 POS 5.03mm Crimp ST Bag CONN PLUG 12POS .093
02-09-6106
Molex Connector Corporation
CONN TERM MALE 14-20AWG GOLD Crimp 2.36mm,male,14-20 AWG,Au,bag Pin & Socket Connectors TERMINAL MALE 14-20 Conn Contact M 1 POS Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Bag CONTACT, PIN, 20-14AWG, CRIMP .093 CONN TERM MALE 14-20AWG GOLD 093MALETERMLOOSEBRS15AU14-20 .093CONNTERMMALE14-20AWGGOLD Molex STANDARD .093" 系列 公 压接接线端子, 压接, 镀金镀镍触点
02-09-6110
Molex Connector Corporation
CONN TERM MALE 14-20AWG GOLD Pin & Socket Connectors PIN 14-20AWG BULK 2.36mm Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1190, Male, with Selective Gold (Au) Plated Brass Contact, ... 2.36mm Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1190, Male, with Selective Gold (Au) Plated Brass Contact, 14-20 AWG, Bag 093 Male Term Loose Brs 50Au 14-20
02-09-5106
Molex Connector Corporation
CONN TERM FEMALE 14-20AWG GOLD Crimp term 2.36mm,,fem,14-20 AWG,Au, bag Pin & Socket Connectors SOCKET 14-20AWG BULK Contact SKT Crimp ST Cable Mount Bag 093 Female Brass Term Lse 15Au 14-20 Molex STANDARD .093" 系列 母 压接接线端子, 压接, 镀金镀镍触点
02-09-6123
Molex Connector Corporation
CONN TERM MALE 18-22AWG GOLD Pin & Socket Connectors PIN 18-22AWG BULK Contact PIN Crimp ST Cable Mount Bag CONTACT, PIN, 22-18AWG, CRIMP
02-09-6132
Molex Connector Corporation
CONN TERM MALE SOLDER GOLD PCB Pin & Socket Connectors MALE GOLD CONTACT Contact PIN Crimp ST Cable Mount Bag

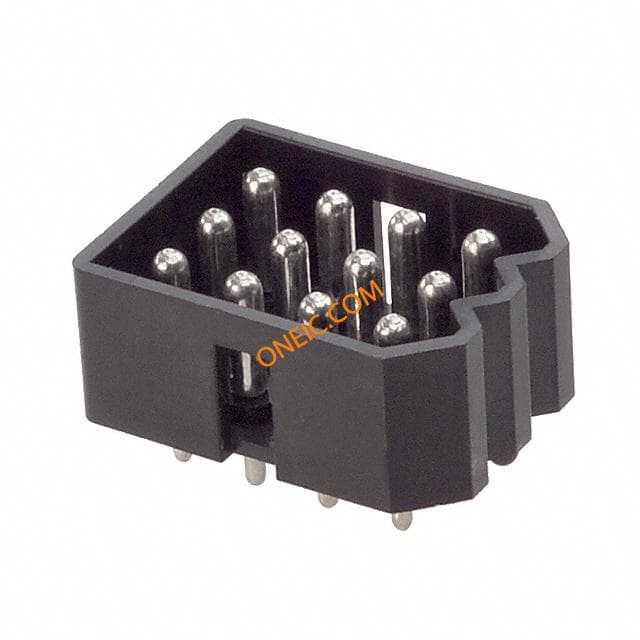

10-18-1120
