点击放大查看

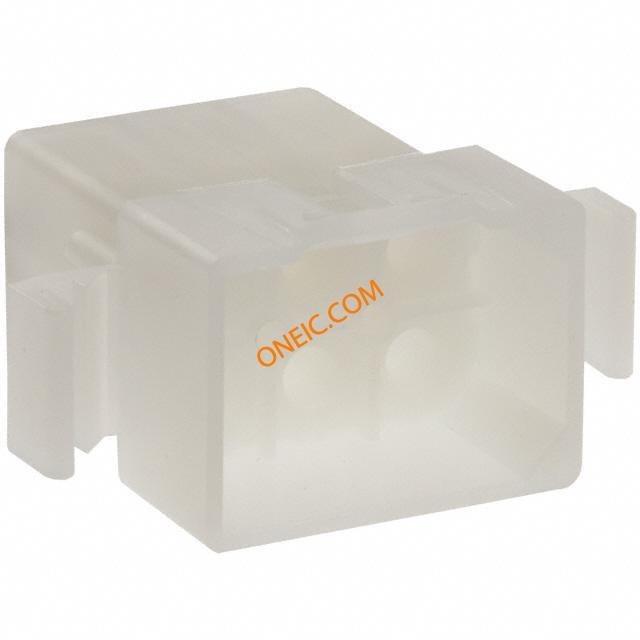

19-09-2061
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 6POS .093 PANEL MOUNT Plug Housing 2.36mm,with ears,6way Pin & Socket Connectors 2.36MM PLUG HOUSE 6 CKT 2.36mm Diameter, .093" Pin and Socket Plug Housing with Positive Latch, 6 Circuits, with Standard Mounting Ears Molex STANDARD .093" 系列 2 行 6.3mm 节距 6 路 直 公 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Standard .093 in | 零件号别名 | 0019092061 1991-6P |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 10 |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 最大额定电流 | 9 A | ||
机械参数
| 颜色 | Natural | 深度 | 27.9mm |
| 间距 | 0.248" (6.30mm) | 宽度 | 17.5mm |
| 包装方式 | Bulk | 方向 | 直 |
| 排间距 | 0.248" (6.30mm) | 触头类型 | Male or Female |
| 安装类型 | Panel Mount, Snap-In | 连接器类型 | Plug |
| 紧固类型 | Friction Lock | 安装样式 | Panel |
| 排数 | 2 | 壳体材料 | Nylon |
| 第一触头极性 | Socket (Female) | 触点数 | 6 |
| 接触件端接 | Crimp | 位数 | 6 |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Male |
| 系列 | 1991 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Plug Housings | 基础产品编号 | 1991 |
| 适用产品/相关产品 | 2.36 mm Dia. 0.093 in Pin & Socket Plug | ||
相关型号
0002091102
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 14-20AWG TIN
0002091119
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-22AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag
0002092116
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-22AWG TIN
0002092118
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 18-22AWG TIN Conn Contact M 1 POS Crimp ST Cable Mount Bag
0002092101
Molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 14-20AWG TIN Connetor
0002092133
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE SOLDER-TAIL TIN Conn Contact M 1 POS Solder ST Thru-Hole Bag
0002092103
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 14-20AWG TIN
0002091104
Molex, LLC
Buy now, ships today. 0002091104 - Socket Contact Tin 14-20 AWG Crimp Power from Molex. View datasheets, pricing and availability from DigiKey now!
02-09-5132
molex
CONN CONT F 1 POS CRMP ST CBL MNT CONN TERM FEMALE SOLDER GOLD PCB Pin & Socket Connectors 2.36MM PIN & SOCKET Female Contact SKT Crimp ST Cable Mount Bag
02-09-6145
Molex
Pin & Socket Connectors TERMINAL .093 MALE CONN TERM MALE 24-30AWG GOLD
02-09-1139
Molex
Pin & Socket Connectors SOCKET 22-24AWG BULK CONN TERM FEMALE 22-24AWG TIN Contact SKT Crimp ST Cable Mount Bag

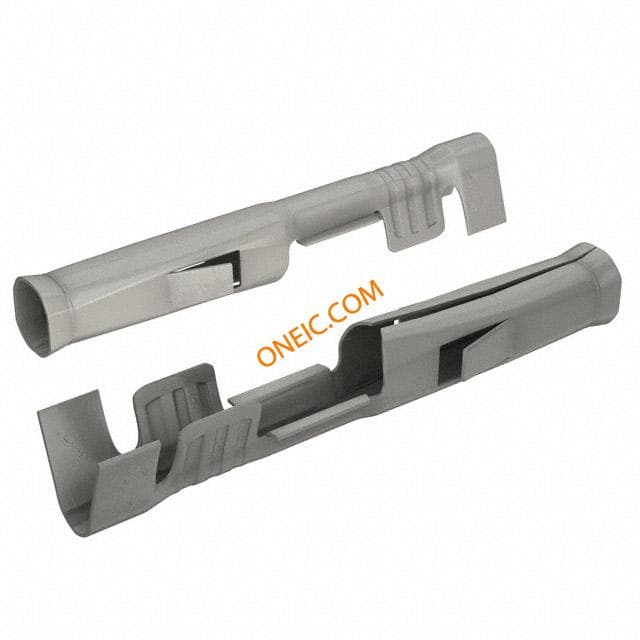

02-09-5142
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-22AWG GOLD Crimp 2.36mm,,fem,18-22 AWG,Aubag Pin & Socket Connectors SOCKET 18-22AWG BULK .093 TERMINAL FEMALE 18-22 Molex STANDARD .093" 系列 母 压接接线端子, 压接, 镀金镀镍触点
19-09-1061
Molex Connector Corporation
CONN RECEPT 6POS .093 PANEL MNT Receptacle Housing 2.36mm,with ears,6way Pin & Socket Connectors 6 CIRCUIT RECEPTACLE 2.36mm Diameter, .093" Pin and Socket Receptacle Housing with Positive Latch, 6 Circuits, with Standard Mounting Ears Molex STANDARD .093" 系列 2 行 6.3mm 节距 6 路 直 母 面板安装 压接连接器外壳

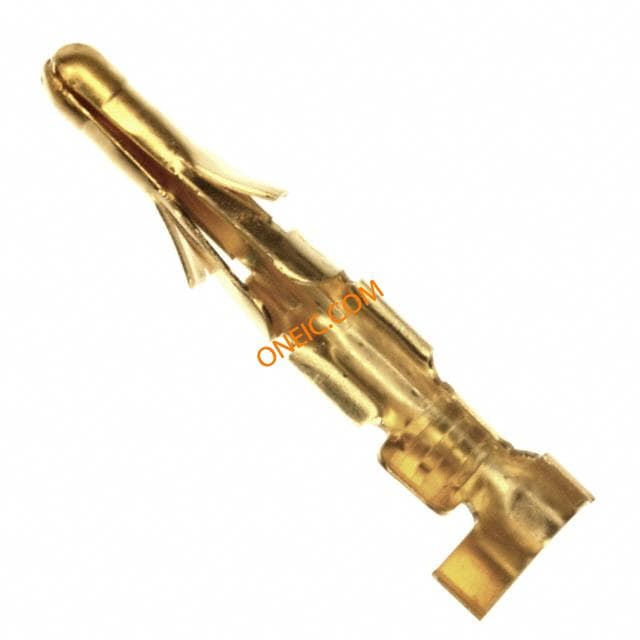

02-09-6106
Molex Connector Corporation
CONN TERM MALE 14-20AWG GOLD Crimp 2.36mm,male,14-20 AWG,Au,bag Pin & Socket Connectors TERMINAL MALE 14-20 Conn Contact M 1 POS Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Bag CONTACT, PIN, 20-14AWG, CRIMP .093 CONN TERM MALE 14-20AWG GOLD 093MALETERMLOOSEBRS15AU14-20 .093CONNTERMMALE14-20AWGGOLD Molex STANDARD .093" 系列 公 压接接线端子, 压接, 镀金镀镍触点
02-09-6110
Molex Connector Corporation
CONN TERM MALE 14-20AWG GOLD Pin & Socket Connectors PIN 14-20AWG BULK 2.36mm Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1190, Male, with Selective Gold (Au) Plated Brass Contact, ... 2.36mm Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1190, Male, with Selective Gold (Au) Plated Brass Contact, 14-20 AWG, Bag 093 Male Term Loose Brs 50Au 14-20

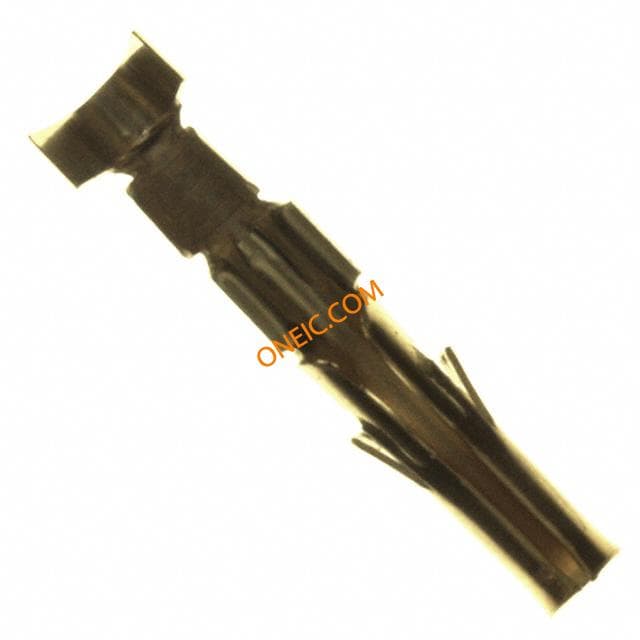

02-09-5106
