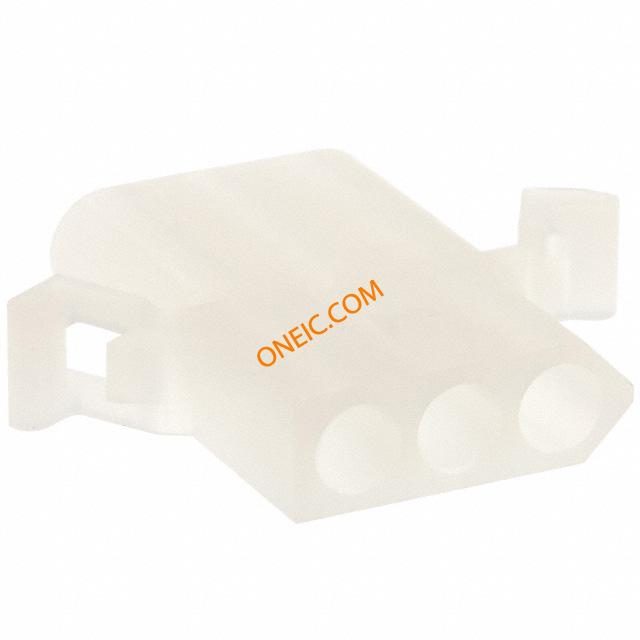

03-09-1081
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 3POS .093 PANEL MNT Pin & Socket Connectors 3 CIRCUIT RECEPTACLE Conn Housing RCP 3 POS 5.03mm Crimp ST Bag PLUG & SOCKET HOUSING, RECEPTACLE, NYLON TERMINAL HOUSE; STD; RECEPT W/MNT EAR & DTENT LCK; 3 CIRCUIT |
| 分类 |
商业参数
| 商标名 | Standard .093 in | 零件号别名 | 0003091081 1396-R4 3091081 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 10 |
| 工厂包装数量 | 3500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 认证机构标志 | CSA, UL | 材料阻燃等级 | UL94V-2 |
电气参数
| 最大额定电流 | 14 A | ||
机械参数
| 颜色 | Natural | 间距 | 0.198" (5.03mm) |
| 重量 | 0.00181 | 包装方式 | Bulk |
| 触头类型 | Male or Female | 基体材料 | :PA Polyamide (Nylon) 6/6 |
| 安装类型 | Panel Mount, Snap-In | 行程角度 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 排数 | 1 | 壳体材料 | Nylon |
| 总长度 | 0.67 " | 主要材料 | Power |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male), Socket (Female) |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Cable Socket |
| 连接器性别 | :Receptacle | 系列 | 1396 |
| 制造商全称 | 1396 Series | 产品子类型 | Receptacle Housings |
| 适用产品/相关产品 | :1189, 1190, 1434, 1973 Crimp Terminals | ||
环境参数
| 工作温度 | -40 to +105 °C | ||
文档与媒体
相关型号
