03-09-1011
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPTACLE 1POS .093 Molex 1 Way 1 Row Straight Female Housing Receptacle Pin & Socket Connectors 1 CIRCUIT RECEPTACLE Conn Housing RCP 1 POS Crimp ST Bag RECEPTACLE, 0.093", 1WAY TERMINAL HOUSE; STD; RECEPTCL W/DTENT LCKONLY; 1 CIRCUIT Molex STANDARD .093" 系列 1路 直 外壳 |
| 分类 |
商业参数
| 商标名 | Standard .062 in | 零件号别名 | 0003091011 1619-1R1B5N1A5 3091011 |
| 产品类别 | Pin & Socket Connectors | 工厂包装数量 | 17000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :UL 94V-2 | 认证机构标志 | CSA, UL, TUV |
| 材料阻燃等级 | :UL94V-2 | ||
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 介电强度 | :1500V/m | 击穿电压 | :3mV |
| 最大额定电流 | 14A | ||
机械参数
| 颜色 | Natural | 间距 | 5.03 mm |
| 重量 | 0.005 | 材料（通用） | :Nylon |
| 导线线规 | :0.597mm² | 端接方式 | Crimp |
| 安装类型 | Straight | 释放力 | :0.027N |
| 行程角度 | Straight | 安装样式 | Wire |
| 排数 | 1 | 封装形式 | :Receptacle |
| 插入力 | :0.034N | 壳体材料 | Nylon |
| 总长度 | 1.03 " | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male), Socket (Female) | 连接器颜色 | :Clear |
| 触点数 | 1 | 位数 | :1 |
| 线规或范围 - mm² | :1.68mm² | 外径-未扩张 | :4.06mm |
产品信息
| 类型 | Socket | 连接器性别 | Female |
| 系列 | 1619 | CAD图纸 | 3D CAD Model |
| 制造商全称 | 1619 Series | 产品子类型 | Receptacle Housings |
| 适用产品/相关产品 | :1189, 1190, 1434, 1973 Crimp Terminals | ||
环境参数
| 工作温度 | :105°C | ||
文档与媒体
相关型号
76650-0011
molex
Wire To Wire Kit For Panel Mount Plugs, Receptacles Kit KIT CONN STD .093" SERIES Pin & Socket Connectors .093 CONNECTOR KIT PREM CRIMPTOOL 282PC Kit Description:Panel Mount Plug and Receptacle, with Extraction Tool and Premium Crimp Tool, 5-20 A, 250VKit Category:Wire to Wire Solution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:292 .093IN PWR CONNECTOR KIT PANEL MNT PLUG& RECEPT, W/ EXTRACTION & CRIMP TOOLS

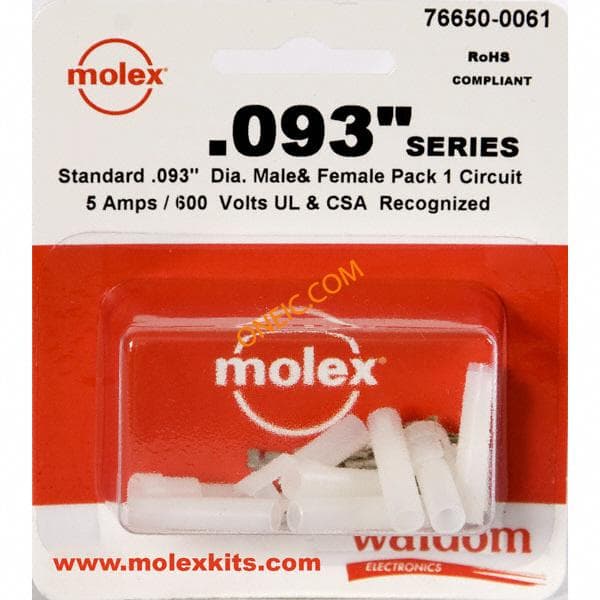

76650-0061
