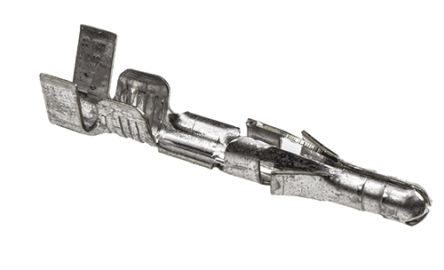

点击放大查看
02-09-2103
| 制造商 | Molex, LLC |
| 描述 | Male crimp contact,14-20 awg Pin & Socket Connectors CRIMP PIN BULK 14-20 Contact PIN Crimp ST Cable Mount Bag CRIMP PIN, PK1000 CONTACT, PIN, 20-14 AWG, CRIMP CONTACT, PIN, 20-14AWG, CRIMP CRIMP TYPE TERMINALS; STANDARD SERIES; MALE Molex STANDARD .093" 系列 公 压接接线端子, 压接, 镀锡触点 |
| 分类 |
商业参数
| 商标名 | Standard .093 in | 零件号别名 | 0002092103 1190-(P901)L 2092103 |
| 产品类别 | Pin & Socket Connectors | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | :250V | 接触电阻 | 10mΩ |
| 最大额定电流 | :12A | ||
机械参数
| 重量 | 0.0001 | 导线线规 | :14AWG |
| 端接方式 | Crimp | 触点尺寸 | :14 |
| 安装类型 | Straight | 接触镀层 | Tin |
| 壳体镀层 | :Tin | 触头材料 | Brass |
| 包装数量 | :1000 | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Tin |
| 接触件端接 | :Crimp | 线规或范围 - AWG | 20-14 |
| 线规或范围 - mm² | :1.68m² | 外径-未扩张 | :4.06mm |
产品信息
| 连接器性别 | Male | 系列 | 1190 |
| 产品子类型 | Contacts | 适用产品/相关产品 | :1619, 1545, 1396, 1490 Plug or Receptacle Housing, 2629 Plug or Receptacle Crimp |
环境参数
| 工作温度 | +105°C | ||
