点击放大查看

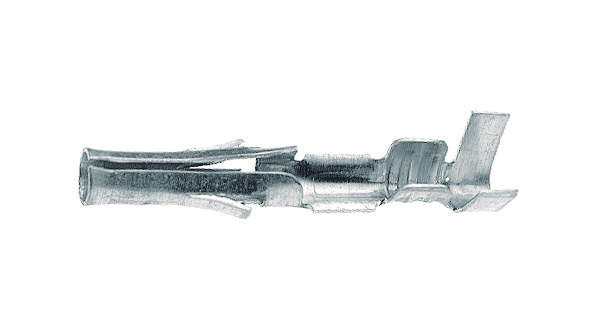

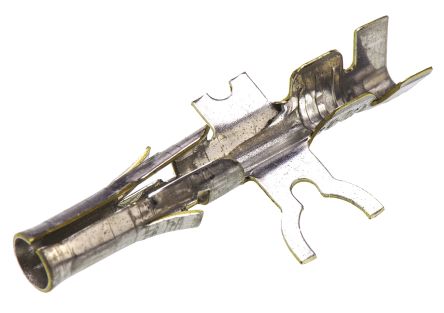

02-09-1117
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Reel Crimp 2.36mm,,fem,18-22 AWG,tin,reel Pin & Socket Connectors CRMP TERM 18-22G FEM Reel of 7000 CONTACT, FEMALE, 22-18AWG, CRIMP .093 pin and socket terminal, female, sn, 18-22 awg, 7k reel .093pinandsocketterminal,female,sn,18-22awg,7kreel Crimp socket, reel 14 A Female 22...18 AWG, 02-09-1117, Molex Molex STANDARD .093" 系列 母 压接接线端子, 压接, 镀锡镀铜触点 |
| 分类 |
商业参数
| 商标名 | Standard .093 in | 零件号别名 | 0002091117 1381-A(P901) 2091117 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 7000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 接触电阻 | 10mΩ | ||
机械参数
| 重量 | 0 | 包装方式 | Reel |
| 端接方式 | Crimp | 触头类型 | Signal |
| 安装类型 | Straight | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin Over Copper | 触头材料 | Brass |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | :Crimp | 线规或范围 - AWG | 22-18 |
产品信息
| 连接器性别 | SKT | 系列 | 1381 |
| 产品子类型 | Contacts | 适用产品/相关产品 | :Standard (0.093") Crimp Terminal Housing |
环境参数
| 工作温度 | +105°C | ||
文档与媒体
