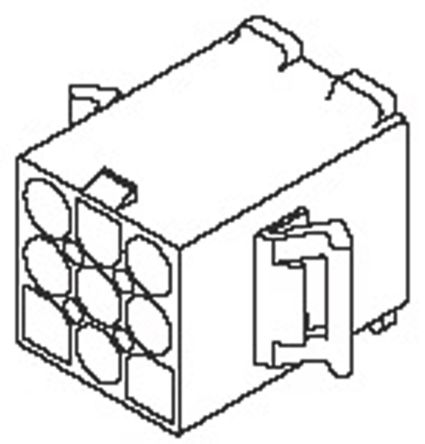

19-09-2068
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 6POS .093 PANEL MOUNT Pin & Socket Connectors PLUG 6 CIRCUIT Conn Housing PL 6 POS 6.7mm Crimp ST Panel Mount Bag PLUG AND SOCKET CONNECTOR HOUSING .093 POWR CONNECTR; INTRNL SERIES; PANEL MNT PLUG; 6 CIRCUT Molex STANDARD .093" 系列 2 行 6.7mm 节距 6 路 直 公 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Standard .093 in | 零件号别名 | 0019092068 3191-6P |
| 产品类别 | Pin & Socket Connectors | 工厂包装数量 | 200 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 认证机构标志 | CSA, UL, TUV | 材料阻燃等级 | UL94V-2 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9 A |
机械参数
| 颜色 | Natural | 间距 | 6.71 mm |
| 重量 | 0.000001 | 端接方式 | Crimp |
| 基体材料 | :PA Polyamide (Nylon) 6/6 | 行程角度 | Straight |
| 排数 | 2 | 壳体材料 | Nylon |
| 总长度 | 0.85 " | 主要材料 | Power |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male), Socket (Female) |
| 触点数 | 6 | 位数 | :6 |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 类型 | Cable Plug | 连接器性别 | :Plug |
| 系列 | 3191 | 制造商全称 | 3191 Series |
| 产品子类型 | Plug Housings | 适用产品/相关产品 | :1189, 1190, 1434, 2605 Crimp Terminals |
环境参数
| 工作温度 | -40 to +105 °C | ||
文档与媒体
