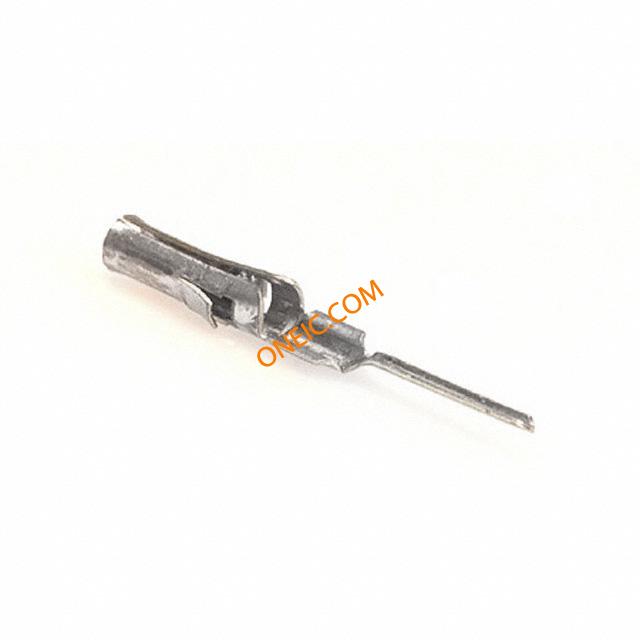

02-09-1134
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Solder ST Thru-Hole Bag CONN TERM FEMALE SOLDER-TAIL TIN Contact,female,pc tail,1377 Serie,brass Pin & Socket Connectors PC TAIL FEMALE SOCKET, PCB, PK100 SOCKET, PCB, PK1000 CONTACT, SOCKET, 30-14 AWG, CRIMP CRIMP TYPE TERMINALS; PC TALL; FEMALE Molex STANDARD .093" 系列 母 印刷电路板接触件, 焊接, 镀锡触点 |
| 分类 |
商业参数
| 商标名 | Standard .093 in | 零件号别名 | 0002091134 1377-AP909L 2091134 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | ||
电气参数
| 额定电压 | :250V | 接触电阻 | 10mΩ |
| 最大额定电流 | :2.5A | ||
机械参数
| 重量 | 0.2 | 包装方式 | Bulk |
| 导线线规 | :22AWG | 端接方式 | Solder |
| 触头类型 | Signal | 安装类型 | Straight |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Tin | 壳体镀层 | :Tin |
| 触头材料 | Brass | 包装数量 | :100 |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Tin |
| 接触件端接 | Solder, PCB | 接触镀层厚度 | 100µin (2.54µm) |
| 线规或范围 - AWG | 30 | 线规或范围 - mm² | :0.336mm² |
| 护套（绝缘）厚度 | :1.57mm | 外径-未扩张 | :0.64mm |
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 系列 | 1377 | 产品子类型 | Contacts |
| 适用产品/相关产品 | :1619, 1545, 1396 Plug or Receptacle Housings | ||
环境参数
| 工作温度 | +105°C | ||
