点击放大查看

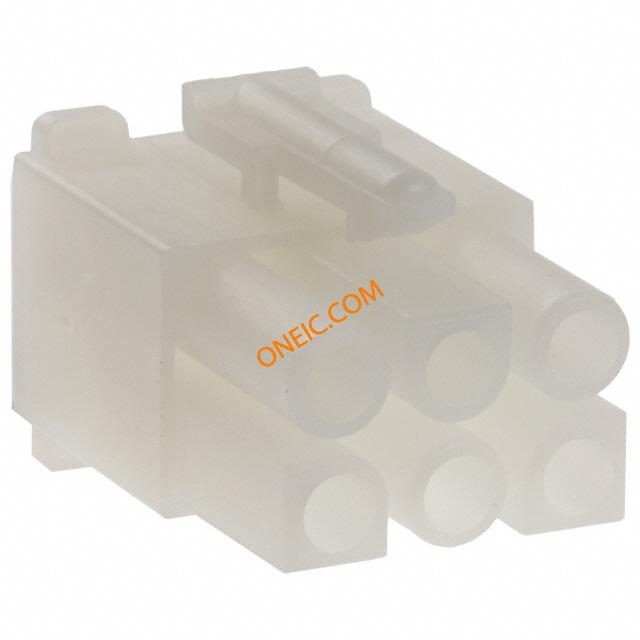

0019091069
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 6 POS 6.7mm Crimp ST Bag CONN RECEPTACLE 6POS .093 |
| 分类 |
商业参数
| 交货时间 | 38 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 12/Contact | 最小输入电压 | 600V |
机械参数
| 颜色 | Natural | 深度 | 29.9 |
| 间距 | 0.264" (6.71mm) | 高度 | 21.85 |
| 包装方式 | Bag | 排间距 | 0.264" (6.71mm) |
| 触头类型 | Male or Female | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 排数 | 2 |
| 壳体材料 | Nylon 6/6 | 总长度 | 21 |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 行业别名 | 19-09-1069, 19091069 |
环境参数
| 工作温度 | -40°C ~ 105°C | ||
文档与媒体
相关型号
0002091119
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-22AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag
0002092116
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-22AWG TIN
0002092118
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 18-22AWG TIN Conn Contact M 1 POS Crimp ST Cable Mount Bag
0002092101
Molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 14-20AWG TIN Connetor
0002092103
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 14-20AWG TIN
0039000295
molex
Contact SKT Crimp ST Cable Mount Bag .093 TERMINAL GOLD 1189AGL
0015311066
molex
Conn Wire to Board HDR 6 POS 6.7mm Solder ST Thru-Hole Bag CONN HEADER 6POS .093 VERT TIN
02-09-5132
molex
CONN CONT F 1 POS CRMP ST CBL MNT CONN TERM FEMALE SOLDER GOLD PCB Pin & Socket Connectors 2.36MM PIN & SOCKET Female Contact SKT Crimp ST Cable Mount Bag
02-09-6145
Molex
Pin & Socket Connectors TERMINAL .093 MALE CONN TERM MALE 24-30AWG GOLD
02-09-1139
Molex
Pin & Socket Connectors SOCKET 22-24AWG BULK CONN TERM FEMALE 22-24AWG TIN Contact SKT Crimp ST Cable Mount Bag
0039000289
Molex
Contact SKT Crimp ST Cable Mount Bag TERMINAL .093 CRIMP PIN 1189ATL
0039000285
Molex
Contact SKT Crimp ST Cable Mount Reel TERM FEMALE 18-24AWG CRIMP TIN
19-09-2069
Molex Connector Corporation
CONN PLUG 6POS .093 Pin & Socket Connectors PLUG W/POS LTCH 6P 2.36mm Diameter Standard .093" Pin and Socket Plug Housing with Positive Latch, UL 94V-2, without Panel Mount, 6 Circuits .093 POWR CONNECTR; INTRNL SERIES; FREEHANG PLUG; 6 CIRCUT Molex STANDARD .093" 系列 2 行 6.7mm 节距 6 路 直 公 表面安装 压接连接器外壳

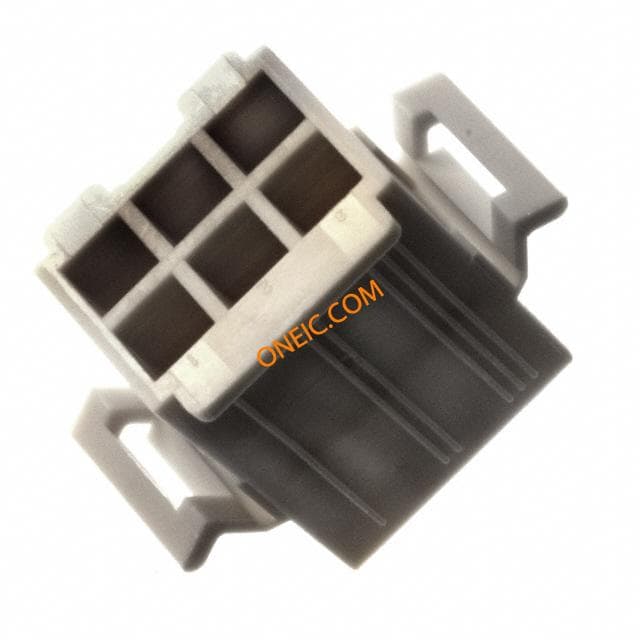

19-09-2067
