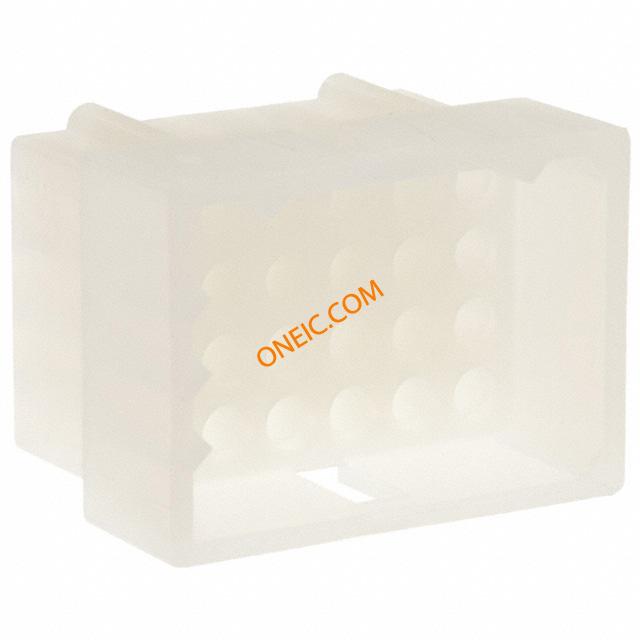

03-06-2242
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 24POS .062 Molex 3.68mm 24 Way 4 Row Straight Male Housing Receptacle Pin & Socket Connectors 24 CIRCUIT PLUG 1.57mm Diameter Standard .062" Pin and Socket Plug Housing, 24 Circuits, without Mounting Ears TERMINAL HOUSE; MINI; PLUG W/DTENT WNDWS; 24 CIRCUITS Molex STANDARD .062" 系列 4 行 3.68mm 节距 24 路 直 公 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Standard .062 in | 零件号别名 | 0003062242 1625-24P1 3062242 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 5 |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | Compliant | 认证机构标志 | CSA, UL, TUV |
| 材料阻燃等级 | UL94V-2 | ||
电气参数
| 最大额定电流 | 4A | ||
机械参数
| 颜色 | Natural | 深度 | 19.1mm |
| 间距 | 0.145" (3.68mm) | 宽度 | 18.8mm |
| 高度 | 16.33mm | 长度 | 26.1mm |
| 包装方式 | Bulk | 方向 | 直 |
| 排间距 | 0.145" (3.68mm) | 端接方式 | Crimp |
| 触头类型 | Male or Female | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 连接器类型 | Plug |
| 紧固类型 | Detent Lock | 安装样式 | Free Hanging |
| 排数 | 4 | 壳体材料 | Nylon |
| 总长度 | 30.02 " | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 24 |
| 接触件端接 | Crimp | 位数 | 24 |
| 安装孔直径 | 1.52 mm | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug |
| 连接器性别 | Male | 系列 | 1625 |
| CAD图纸 | 3D CAD Model | 制造商全称 | 1625 Series |
| 产品子类型 | Plug Housings | 基础产品编号 | 1625 |
| 适用产品/相关产品 | 1778 插入式 PC 尾线接线端子；1779 包容式 PC 尾线接线端子；包容式压接接线端子 1561、4559、4529、2190、2189、1787、1855；插入式压接端子 1560、1786、1854 | ||
