0002062101
| 制造商 | Molex, LLC |
| 描述 | Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-24AWG TIN |
| 分类 |
商业参数
| 交货时间 | 20 Days | 其他名称 | WM3680CT |
| 子类别 | Connector Contact | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 3.2 mohm | 最大额定电流 | 5 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 3.56 mm | 间距 | Not Required mm |
| 高度 | 3.56 mm | 包装方式 | Reel |
| 导线线规 | 18-24 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin Over Nickel | 安装样式 | Cable |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 总长度 | 16.8 mm | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 20µin (0.51µm) |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 行业别名 | 02-06-2101, 02062101, 2062101 | 适用产品/相关产品 | 0002062103 |
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0011402004
molex
Connector Accessories Crimp Terminator Die Set Terminator Die With Crimp Function T8302A TERMINATOR ASSEMBLY
0638111000
molex
Connector Accessories Hand Crimp Tool Hand Crimper Handtool Type TOOL CRIMP 14-24AWG UNIVERSAL Tool: for crimping; 14÷24AWG
0638914000
molex
Connector Accessories Crimp Applicator Mini-Mac Applicator TOOL MINI MAC APPLICATOR CRIMP
0003061092
molex
Conn Housing RCP 9 POS 3.68mm Crimp ST Cable Mount Bag CONN RECEPTACLE 9POS .062
0003062032
molex
Conn Housing PL 3 POS 3.68mm Crimp ST Bag CONN PLUG 3POS .062
0011030002
Molex
Connector Accessories Extraction Tool Manual Extraction Tool TOOL EXTRACTION MOLEX .062 TERM
0003067044
molex
Conn Housing PL 4 POS 3.68mm Crimp ST Bag Conn Housing PL 4 POS 3.68mm Crimp ST Cable Mount Bag CONN PLUG FREE HNG 4CKT .062
11-01-0008
Molex
Crimpers USE 538-63811-3300 TOOL HAND CRIMP 18-24AWG RATCHET
03-06-1122
molex
Conn Housing RCP 12 POS 3.68mm Crimp ST Bag CONN RECEPTACLE 12POS .062 Molex 3.68mm 12 Way 3 Row Straight Female Housing Receptacle Pin & Socket Connectors 12C RECEPTACLE HOUSING, RECEPTACLE, 3 ROW, 12WAY, NYLON TERMINAL HOUSE; MINI; RECEPTCL W/DTENT WNDWS; 12 CIRCUITS Molex STANDARD .062" 系列 3 行 3.68mm 节距 12 路 直 母 电缆安装 压接连接器外壳
03-06-1041
Molex
Pin & Socket Connectors 4 CIRCUIT RECEPTACLE HOUSING, RECEPTACLE, 4 WAY, NYLON
0011020001
Molex
Lightweight Manual Hand Insertion Tool INSERTION TOOL HT1807
0003062042
Molex
Conn Housing PL 4 POS 3.68mm Crimp ST Cable Mount Bag CONN PLUG 4POS .062
0003061038
Molex
Conn Housing RCP 3 POS 3.68mm Crimp ST Bag CONN RECEPT 3POS .062 PANEL MNT
0640160205
Molex
Hand Crimp Tool For 0.156 Terminals TOOL CRIMP KK .156" .062" TERM
0638191300
Molex
Hand Crimp Tool For Standard 1.57mm Pin and Socket Crimp Terminals, 18-24 AWG TOOL HAND CRIMP 18-24AWG RATCHET Connector Accessories Hand Crimp Tool
03-06-2054
Molex Connector Corporation
CONN PLUG 5POS .062 PANEL MOUNT Molex 3.68mm 5 Way 1 Row Straight Male Multiway Connector Pin & Socket Connectors 5 CIRCUIT PLUG 1.57mm Diameter Standard .062" Pin and Socket Plug Housing, 5 Circuits, with Standard Mounting Ears HOUSING, 3.68MM, 5WAY TERMINAL HOUSE; MINI; PLUG W/MNT EAR & DTENT WNDW; 5 CIRCUIT Molex STANDARD .062" 系列 3.68mm 节距 5 路 直 公 面板安装 压接连接器外壳
03-06-2043
Molex Connector Corporation
CONN PLUG 4POS .062 PANEL MOUNT Pin & Socket Connectors 4 CIRCUIT PLUG 1.57mm Diameter Standard .062" Pin and Socket Plug Housing, Dual row, with Panel Mount Ears, PA Polyamide Nylon 6/6, UL ... 1.57mm Diameter Standard .062" Pin and Socket Plug Housing, Dual row, with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-2, 4 Circuits HOUSING, 3.68MM, 4WAY Connector Housing; Connector Type:Plug & Socket; Gender:Plug; No. of Contacts:4; Molex STANDARD .062" 系列 2 行 3.68mm 节距 4 路 直 公 面板安装 压接连接器外壳
03-06-1152
Molex Connector Corporation
CONN RECEPTACLE 15POS .062 Molex 3.68mm 15 Way 3 Row Straight Cable Mount Female Housing Receptacle Pin & Socket Connectors 15C RECEPTACLE Conn Housing RCP 15 POS 3.68mm Crimp ST Cable Mount Bag PLUG & SOCKET HOUSING, RECEPTACLE, NYLON TERMINAL HOUSE; MINI; RECEPTCL W/DTENT WNDWS; 15 CIRCUITS Molex STANDARD .062" 系列 3 行 3.68mm 节距 15 路 直 母 电缆安装 压接连接器外壳
03-06-1241
Molex Connector Corporation
CONN RECEPTACLE 24POS .062 Molex 3.68mm 24 Way 4 Row Straight Panel Mount Female Housing Receptacle Pin & Socket Connectors 24C RECEPTACLE Conn Housing RCP 24 POS 3.68mm Crimp ST Panel Mount Bag PLUG & SOCKET HOUSING, RECEPTACLE, NYLON TERMINAL HOUSE; MINI; RECEPT W/MNT EAR & DTENT WNDW; 24 CIRC Molex STANDARD .062" 系列 4 行 3.68mm 节距 24 路 直 母 面板安装 压接连接器外壳

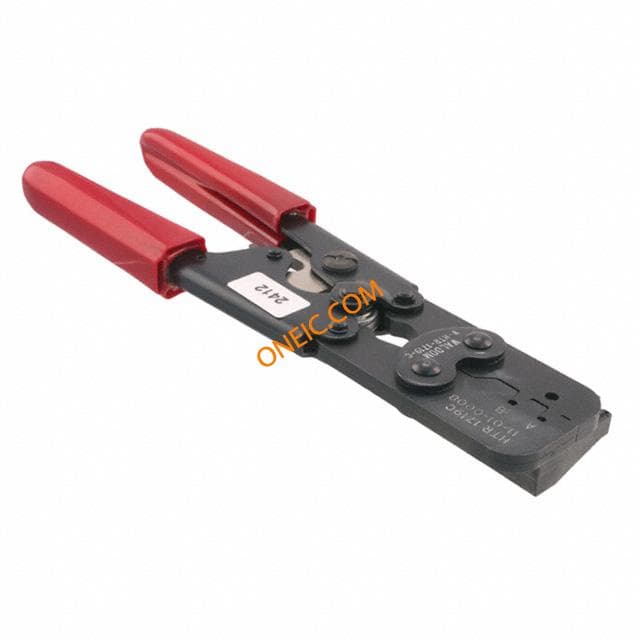

W-HTR-1719
