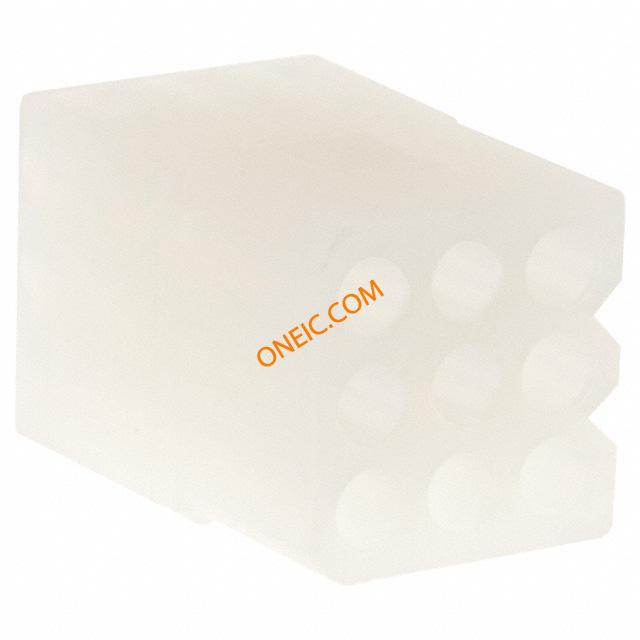

点击放大查看
0003061092
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 9 POS 3.68mm Crimp ST Cable Mount Bag CONN RECEPTACLE 9POS .062 |
| 分类 |
商业参数
| 交货时间 | 43 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 5/Contact | ||
机械参数
| 颜色 | Natural | 深度 | 19.8 |
| 间距 | 3.68 mm | 高度 | 13.6 |
| 包装方式 | Bag | 排间距 | 0.145" (3.68mm) |
| 触头类型 | Male or Female | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 排数 | 3 |
| 壳体材料 | Nylon 66 | 触点数 | 9 |
| 接触件端接 | Crimp | 位数 | 9 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 行业别名 | 03-06-1092, 03061092, 3061092 |
环境参数
| 工作温度 | -40°C ~ 105°C | ||
