点击放大查看

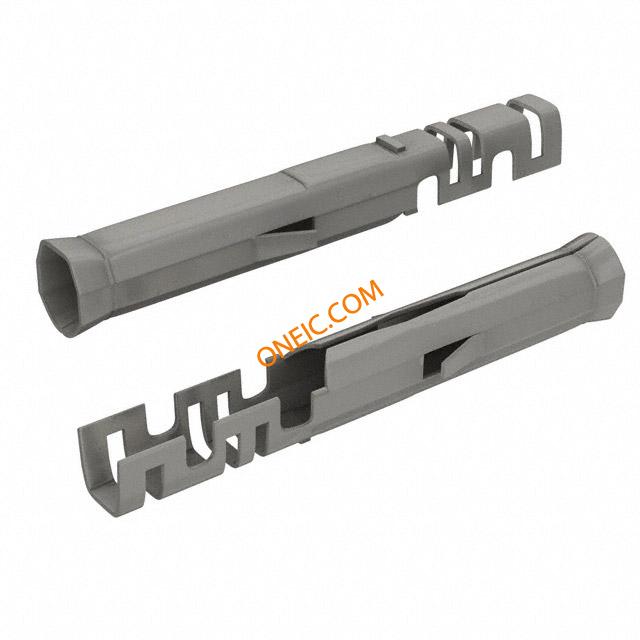

0002061131
| 制造商 | Molex, LLC |
| 描述 | . 0002061131 - Socket Contact Tin 24-30 AWG Crimp Power from Molex. from now! |
| 分类 |
商业参数
| 交货时间 | 36 Days | 其他名称 | WM1003CT |
| 子类别 | Connector Contact | 标准包装数量 | 20,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 3.2 mohm | 最大额定电流 | 5 A |
机械参数
| 深度 | 3.2 mm | 间距 | Not Required mm |
| 镀层 | Tin | 材料（通用） | Brass |
| 包装方式 | Reel | 导线线规 | 24-30 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 外壳颜色 | Not Required |
| 安装类型 | Cable Mount | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Recepta... | 接触镀层 | Tin |
| 安装样式 | Cable | 触头材料 | Brass |
| 壳体材料 | Not Required | 总长度 | 17.3 mm |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 镀层厚度（通用） | 20µin (0.51µm) | ||
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 行业别名 | 02-06-1131, 02061131, 2061131 | 适用产品/相关产品 | 0002061132 |
环境参数
| 工作温度 | -40C to 105C | ||
