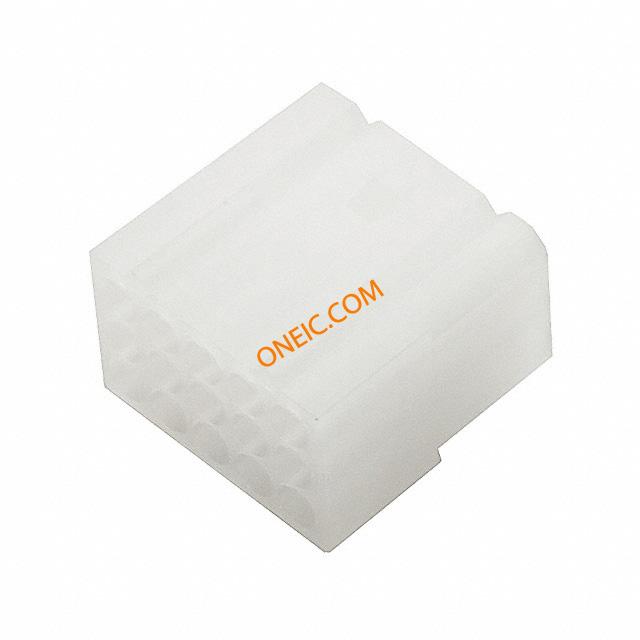

03-06-1152
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPTACLE 15POS .062 Molex 3.68mm 15 Way 3 Row Straight Cable Mount Female Housing Receptacle Pin & Socket Connectors 15C RECEPTACLE Conn Housing RCP 15 POS 3.68mm Crimp ST Cable Mount Bag PLUG & SOCKET HOUSING, RECEPTACLE, NYLON TERMINAL HOUSE; MINI; RECEPTCL W/DTENT WNDWS; 15 CIRCUITS Molex STANDARD .062" 系列 3 行 3.68mm 节距 15 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Standard .062 in | 零件号别名 | 0003061152 1625-15R1 3061152 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 5 |
| 工厂包装数量 | 2500 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构标志 | CSA, UL, TUV | 材料阻燃等级 | UL94V-2 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 5A |
机械参数
| 颜色 | Natural | 间距 | 0.145" (3.68mm) |
| 高度 | 13.6mm | 重量 | 0.005 |
| 包装方式 | Bulk | 排间距 | 0.145" (3.68mm) |
| 端接方式 | Crimp | 触头类型 | Male or Female |
| 基体材料 | :PA Polyamide (Nylon) 6/6 | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 安装样式 | Free Hanging |
| 排数 | 3 | 壳体材料 | Nylon |
| 总长度 | 0.78 " | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 15 |
| 接触件端接 | Crimp | 位数 | 15 |
| 安装孔直径 | 0.93×0.569 " | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Socket |
| 连接器性别 | Female | 系列 | 1625 |
| CAD图纸 | 3D CAD Model | 制造商全称 | 1625 Series |
| 产品子类型 | Receptacle Housings | 适用产品/相关产品 | :1560, 1561, 1786, 1854 Crimp Terminals |
