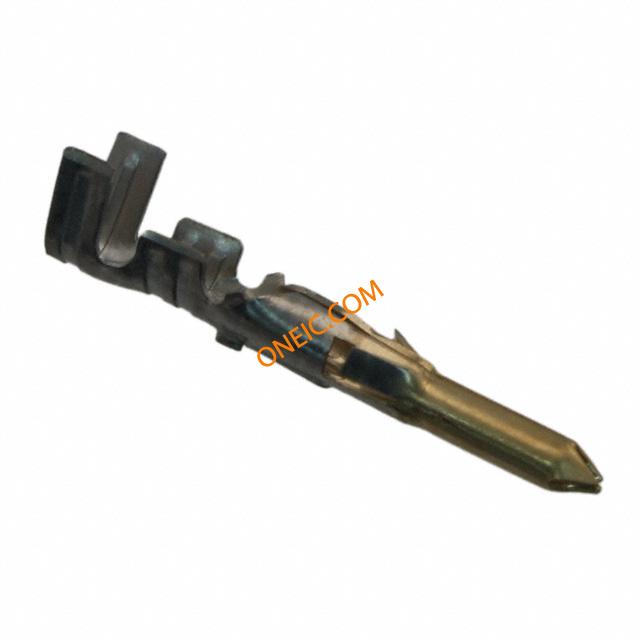

02-06-6102
| 制造商 | Molex, LLC |
| 描述 | CONN TERM MALE 18-24AWG GOLD Crimp 1.57mm,male,18-24 AWG,gold, bag Pin & Socket Connectors PIN 18-24 AWG BULK gold Contact PIN Crimp ST Cable Mount Bag Molex STANDARD .062" 系列 公 压接接线端子, 压接, 镀金镀镍触点 |
| 分类 |
商业参数
| 商标名 | Standard .062 in | 零件号别名 | 0002066102 1560-(561)L 2066102 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 接触电阻 | 3.2mΩ | 连接器类型 - 电压输入 | Crimp |
机械参数
| 包装方式 | Bulk | 导线线规 | 18-24 AWG |
| 端接方式 | Crimp | 安装类型 | Straight |
| 插针或插孔 | Pin | 连接器类型 | 公插 |
| 接触镀层 | Gold | 触头材料 | Brass |
| 端接排数 | 压接 | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 接触件端接 | Crimp |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - AWG | 24-18 |
产品信息
| 类型 | Power | 连接器性别 | Male |
| 系列 | 1560 | 产品子类型 | Contacts |
| 基础产品编号 | 1560 | ||
环境参数
| 工作温度 | +105°C | ||
