| 制造商 | Molex, LLC |

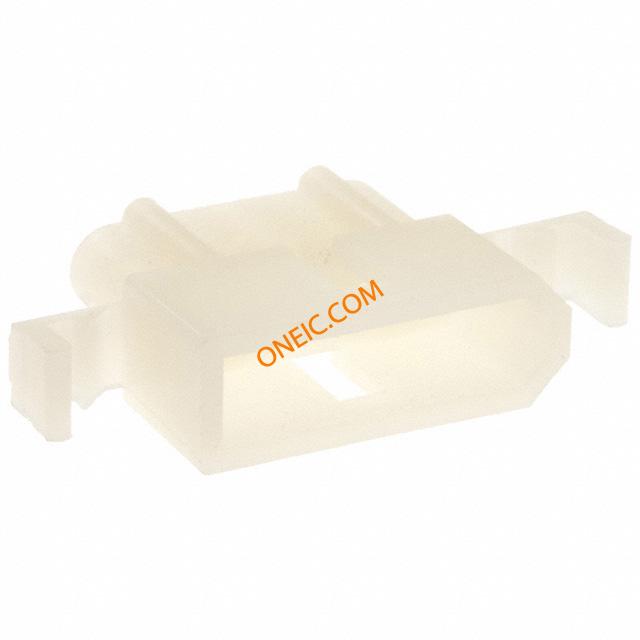

| 描述 | CONN PLUG 5POS .062 PANEL MOUNT Molex 3.68mm 5 Way 1 Row Straight Male Multiway Connector Pin & Socket Connectors 5 CIRCUIT PLUG 1.57mm Diameter Standard .062" Pin and Socket Plug Housing, 5 Circuits, with Standard Mounting Ears HOUSING, 3.68MM, 5WAY TERMINAL HOUSE; MINI; PLUG W/MNT EAR & DTENT WNDW; 5 CIRCUIT Molex STANDARD .062" 系列 3.68mm 节距 5 路 直 公 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Standard .062 in | 零件号别名 | 0003062054 1625-5P 3062054 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 5 |
| 工厂包装数量 | 3500 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构标志 | CSA, UL, TUV | 材料阻燃等级 | UL94V-2 |
电气参数
| 最大额定电流 | 5A | ||
机械参数
| 颜色 | Natural | 间距 | 0.145" (3.68mm) |
| 高度 | 7.8mm | 重量 | 0.172 |
| 包装方式 | Bulk | 端接方式 | Crimp |
| 触头类型 | Male or Female | 安装类型 | Panel Mount, Snap-In |
| 行程角度 | Straight | 连接器类型 | Plug |
| 紧固类型 | Detent Lock | 安装样式 | Panel |
| 排数 | 1 | 壳体材料 | Nylon |
| 总长度 | 0.75 " | 端接样式 | Crimp |

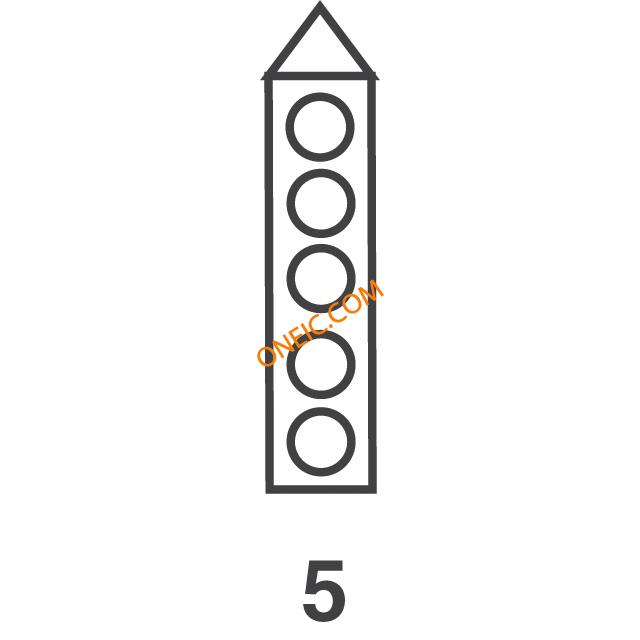

| 第一触头极性 | Pin (Male) | 触点数 | 5 |
| 接触件端接 | Crimp | 位数 | 5 |
| 安装孔直径 | 1.044×0.318 " | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Panel Plug |
| 连接器性别 | Male | 系列 | 1625 |
| CAD图纸 | 3D CAD Model | 制造商全称 | 1625 Series |
| 产品子类型 | Plug Housings | 适用产品/相关产品 | :1560, 1561, 1786, 1854 Crimp Terminals |
环境参数
| 工作温度 | -40 to +105 °C | ||
