点击放大查看

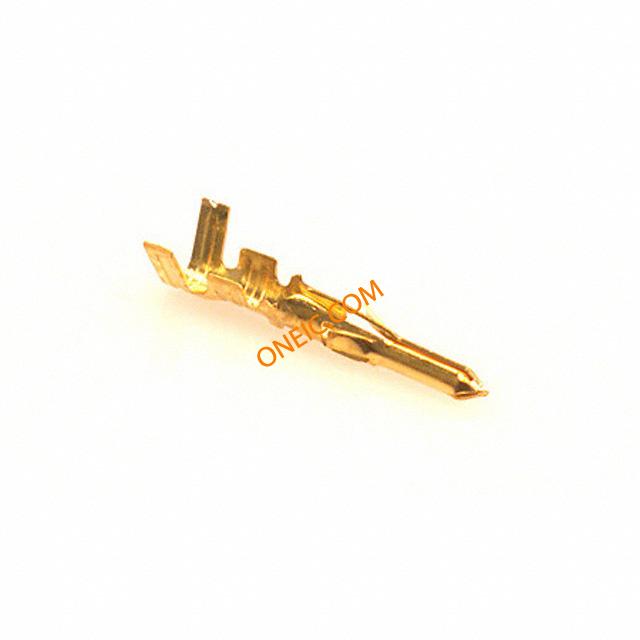

0002066103
| 制造商 | Molex, LLC |
| 描述 | Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 18-24AWG GOLD |
| 分类 |
商业参数
| 交货时间 | 45 Days | 子类别 | Connector Contact |
| 标准包装数量 | 9,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 3.2 mohm | 最大额定电流 | 5 A |
机械参数
| 深度 | 3.56 mm | 间距 | Not Required mm |
| 高度 | 3.56 mm | 包装方式 | Bag |
| 导线线规 | 18-24 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Recepta... |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 总长度 | 17.3 mm | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 已删除 | Compliant | 行业别名 | 02-06-6103, 02066103, 2066103 |
| 适用产品/相关产品 | 0002066100 | ||
环境参数
| 工作温度 | -40C to 105C | ||
