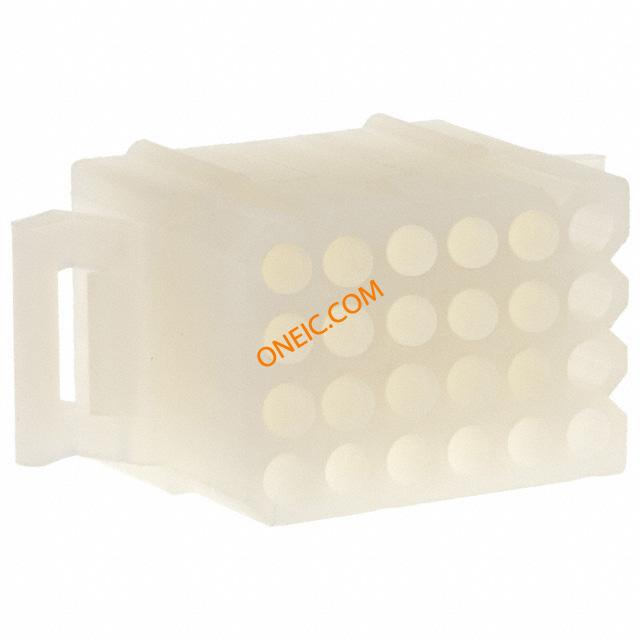

03-06-1241
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPTACLE 24POS .062 Molex 3.68mm 24 Way 4 Row Straight Panel Mount Female Housing Receptacle Pin & Socket Connectors 24C RECEPTACLE Conn Housing RCP 24 POS 3.68mm Crimp ST Panel Mount Bag PLUG & SOCKET HOUSING, RECEPTACLE, NYLON TERMINAL HOUSE; MINI; RECEPT W/MNT EAR & DTENT WNDW; 24 CIRC Molex STANDARD .062" 系列 4 行 3.68mm 节距 24 路 直 母 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Standard .062 in | 零件号别名 | 0003061241 1625-24R 3061241 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 5 |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85366910 |
| 认证机构标志 | CSA, UL, TUV | 材料阻燃等级 | UL94V-2 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 4A |
机械参数
| 颜色 | Natural | 间距 | 0.145" (3.68mm) |
| 重量 | 0.027 | 包装方式 | Bulk |
| 排间距 | 0.145" (3.68mm) | 端接方式 | Crimp |
| 触头类型 | Male or Female | 基体材料 | :PA Polyamide (Nylon) 6/33 |
| 安装类型 | Panel Mount, Snap-In | 行程角度 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 安装样式 | Panel | 排数 | 4 |
| 壳体材料 | Nylon | 总长度 | 27.41 mm |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 24 | 接触件端接 | Crimp |
| 位数 | 24 | 安装孔直径 | 1.52 mm |
产品信息
| 备注 | Contacts Not Provided | 类型 | Panel Socket |
| 连接器性别 | Female | 系列 | 1625 |
| CAD图纸 | 3D CAD Model | 制造商全称 | 1625 Series |
| 产品子类型 | Receptacle Housings | 适用产品/相关产品 | :1560, 1561, 1786, 1854 Crimp Terminals |
环境参数
| 工作温度 | -40 to +105 °C | ||
文档与媒体
相关型号
