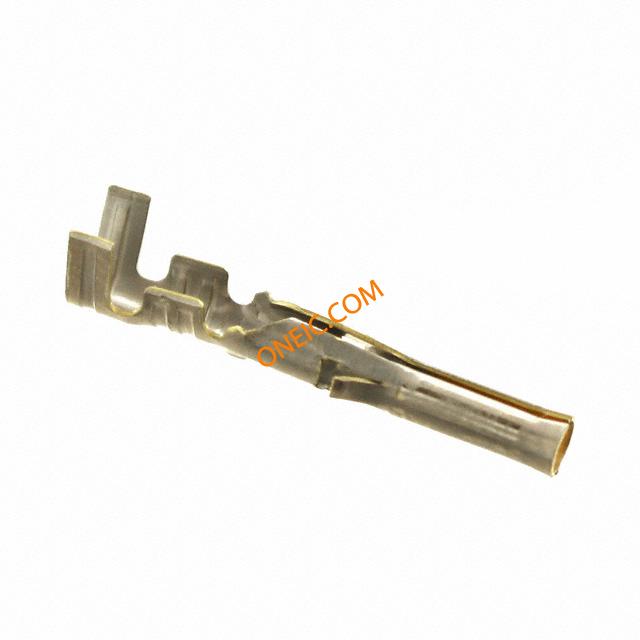

02-06-5102
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG GOLD Crimp term 1.57mm,female,18-24AWG,Au,bag Pin & Socket Connectors SOCKET 18-24AWG BULK Molex STANDARD .062" 系列 母 压接接线端子, 压接, 镀金镀镍触点 |
| 分类 |
商业参数
| 商标名 | Standard .062 in | 零件号别名 | 0002065102 1561GL1 2065102 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 接触电阻 | 3.2mΩ | ||
机械参数
| 包装方式 | Bulk | 导线线规 | 18-24 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 触头材料 | Brass |
| 端接排数 | 压接 | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - AWG | 24 |
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 系列 | 1561 | 产品子类型 | Contacts |
| 基础产品编号 | 1561 | ||
环境参数
| 工作温度 | 105°C | ||
