点击放大查看

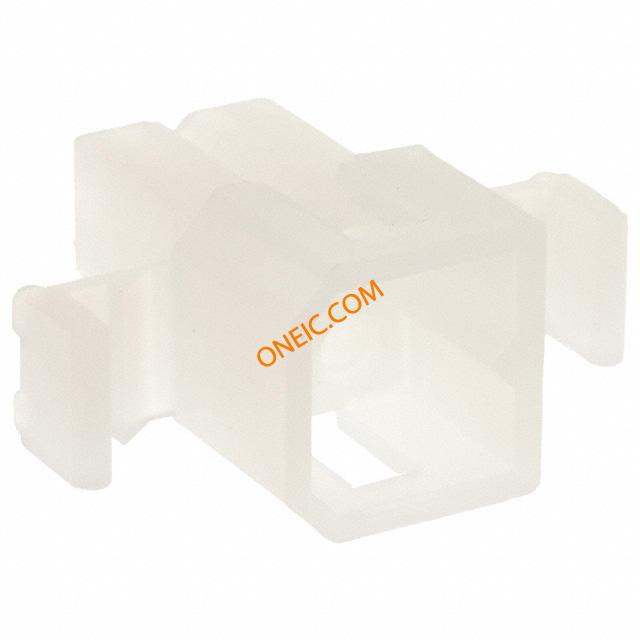

03-06-2043
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 4POS .062 PANEL MOUNT Pin & Socket Connectors 4 CIRCUIT PLUG 1.57mm Diameter Standard .062" Pin and Socket Plug Housing, Dual row, with Panel Mount Ears, PA Polyamide Nylon 6/6, UL ... 1.57mm Diameter Standard .062" Pin and Socket Plug Housing, Dual row, with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-2, 4 Circuits HOUSING, 3.68MM, 4WAY Connector Housing; Connector Type:Plug & Socket; Gender:Plug; No. of Contacts:4; Molex STANDARD .062" 系列 2 行 3.68mm 节距 4 路 直 公 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Standard .062 in | 零件号别名 | 0003062043 2004P 3062043 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 10 |
| 工厂包装数量 | 4500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366990 |
电气参数
| 最大额定电流 | 5 A | ||
机械参数
| 颜色 | Natural | 间距 | 0.145" (3.68mm) |
| 重量 | 0.013 | 包装方式 | Bulk |
| 排间距 | 0.145" (3.68mm) | 触头类型 | Male or Female |
| 安装类型 | Panel Mount, Snap-In | 连接器类型 | Plug |
| 紧固类型 | Detent Lock | 安装样式 | Panel |
| 排数 | 2 | 壳体材料 | Nylon |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Plug |
| 系列 | 2004 | 产品子类型 | Plug Housings |
| 适用产品/相关产品 | :1560, 1786, 1854 Series Male & 1561, 4559, 4529, 2190, 2189, 1787 Series Female Crimp Terminals | ||
文档与媒体
相关型号
0002061101
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN
0002061132
Molex, LLC
. 0002061132 - Socket Contact Tin 24-30 AWG Crimp Power from Molex. from now!
0002062101
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-24AWG TIN
0002062103
Molex, LLC
. 0002062103 - Pin Contact Tin 18-24 AWG Crimp Power from Molex. from now!
0002067103
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE SOLDER TIN PCB Conn Contact F 1 POS Solder ST Thru-Hole Bag
0003061044
molex
Conn Housing RCP 4 POS 3.68mm Crimp ST Bag CONN RECEPTACLE 4POS .062
0003066043
molex
Conn Housing RCP 4 POS 3.68mm Crimp ST Bag CONN RECEPT BLK 4CKT .062
0002065100
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG GOLD

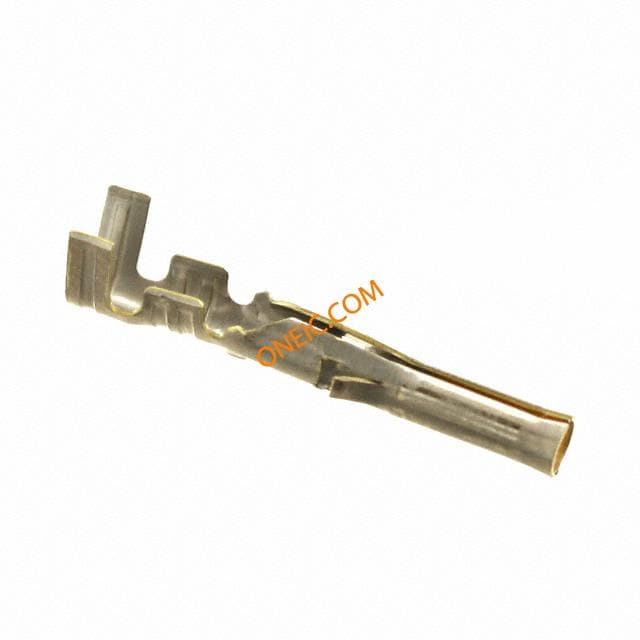

02-06-5102
