点击放大查看

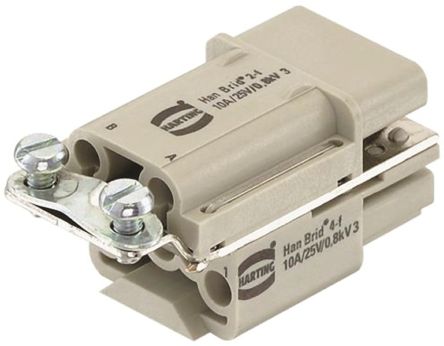

09120062794
| 制造商 | |
| 描述 | Ethernet & Telecom Connectors HAN BRID-FEMALE INSERT FOR PFT HAN BRID-FEMALE INSERT FOR PFT Modular Connectors / Ethernet Connectors HAN BRID-FEMALE INSERT FOR PFT INSERT FEMALE 4+2POS+1GND SCREW HANBrid-FemaleInsertforPFT Han Brid Female Insert: Han Brid-Female Insert for PFT Harting HAN Brid 系列 6针 插座 电源连接器 |
| 分类 |
商业参数
| 零件号别名 | 006 09 09-12-006-2794 12 2794 | 标准包装数量 | 10 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 25V | 最大额定电流 | 10A |
机械参数
| 尺寸 | 3A | 颜色 | Gray |
| 包装方式 | Bulk | 方向 | 直 |
| 安装类型 | Right | 连接器类型 | Insert |
| 安装样式 | Panel | 壳体材料 | Polycarbonate (PC) |
| 端接样式 | Screw | 触点数 | 4 |
| 位数 | 4+2+Ground | ||
产品信息
| 类型 | Panel Feed Through Insert | 连接器性别 | Female |
| 系列 | HAN Brid | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
