点击放大查看

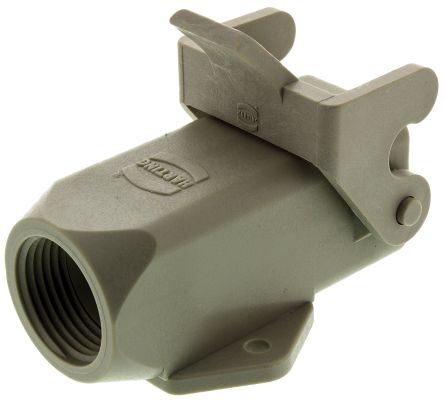

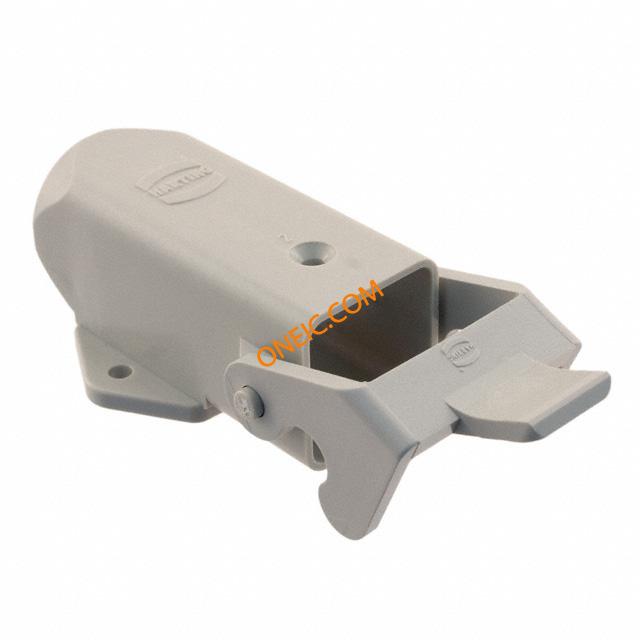

09200030220

制造商	HARTING Technology Group
描述	HAN A BASE SURFACE THERMO PG 11 Heavy Duty Power Connectors HAN A BASE SURFACE Surface mount plastic housing,PG11 3A S/MNTHOUSESIZE3A Han A Housings: Han A Base Surface Thermoplastic PG 11 Harting Han A 系列电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	003 0220 09 09-20-003-0220 20	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

电气参数

最大额定电流

3 A

机械参数

尺寸	3A	包装方式	Bulk
外壳颜色	Gray	连接器类型	Base - Panel Mount 90°
安装样式	Right	插入力	Female
壳体材料	Thermoplastic	尺寸/外形	1.102" L x 1.575" W x 1.055" H (28.00mm x 40.00mm x 26.80mm)
端接样式	Cable	触点数	13

产品信息

类型	CONNECTORS	样式	Side Entry
系列	Han Q	产品子类型	Housings
锁定位置	Central Locking Clip on Base Bottom

环境参数

防护等级

IP67 - Dust Tight, Waterproof

工作温度

-40°C ~ 125°C
