点击放大查看

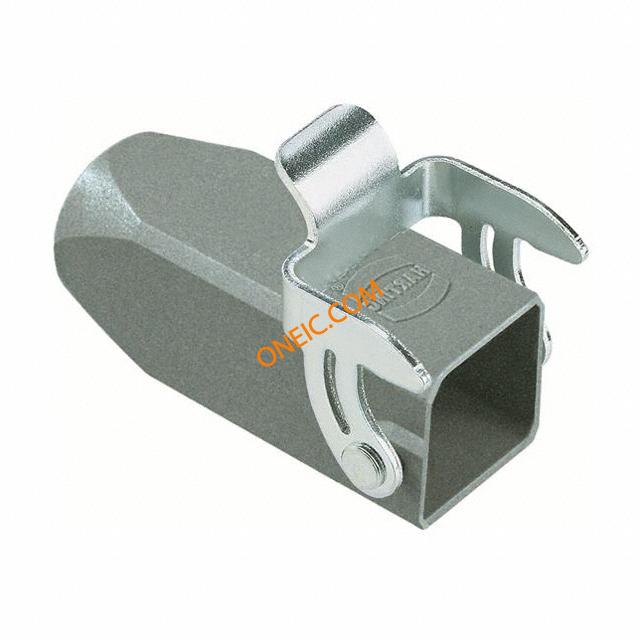

09200031750

制造商	HARTING Technology Group

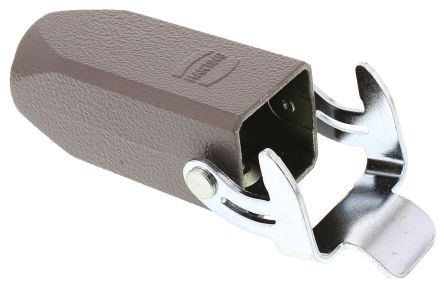

描述	HAN A HOOD COUPLER 1 LEVER PG 11 Heavy Duty Power Connectors 3A CBL TO CBL PG11 METAL 1 LEVER Han(R) metal coupling hood,PG11 size 3A HAN3ACabletoCable,SingleLeverPeg(PGThread) Enclosure: for Han connectors; Han; size 3A; for cable; with lock Han A Housings: Han A Hood Coupler 1 Lever PG 11 Harting Han A 系列电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	003 09 09-20-003-1750 1750 20	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

机械参数

尺寸	3A	重量	0.07 kg
包装方式	Bulk	壳体颜色	grey
方向	straight	螺纹尺寸	PG11
重量（g）	75.10000	外壳颜色	Gray
衬套螺纹	PG11	连接器类型	Hood - Coupling
外壳涂层	Powder Coated	安装样式	Straight
封装形式	size 3A	锁定特性	with lock
壳体材料	Zinc, Die Cast	包装数量	10
尺寸/外形	0.953" L x 0.953" W x 2.244" H (24.20mm x 24.20mm x 57.00mm)	端接样式	Cable
触点数	13	供应商器件封装	for Han connectors
外壳与棱镜材料	zinc alloy

产品信息

SPG	10	类型	CONNECTORS
样式	Bottom Entry	系列	Han A
产品特性	Cable to Cable	产品子类型	Hoods
锁定位置	Central Locking Clip on Hood	附件类型	Hood
适配器系列	Han	单元数量	1

环境参数

防护等级

IP44

工作温度

-40°C ~ 125°C
