点击放大查看

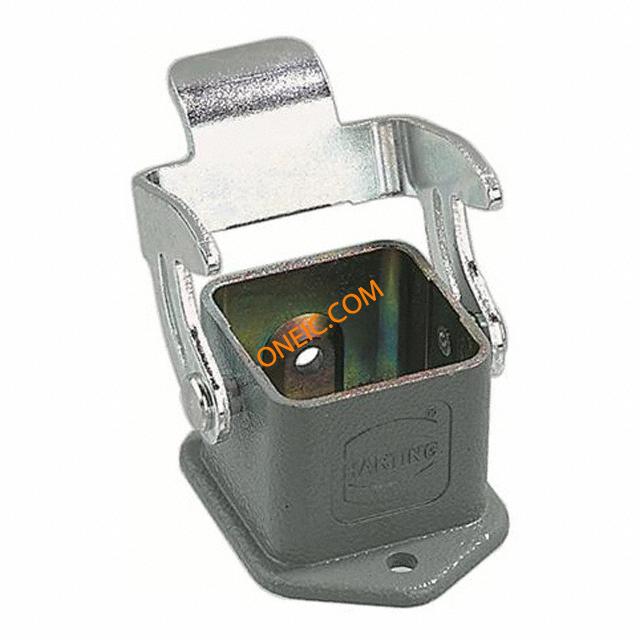

09200030301

制造商	HARTING Technology Group
描述	Connector Accessories 13 POS Housing Metal Heavy Duty Power Connectors HAN 3A BULKHEAD MNT 1 LEVER METAL HAN A BASE PANEL 1 LEVER Straight panel mount metal housing,3A Hood/Housing;3A;Bulkhead;Metal;3.2mm;28mmLx40mmWx23mmH Enclosure: for Han connectors; Han; size 3A; with lock; straight Han A Housings: Han A Base Panel 1 Lever Harting Han A 系列电源连接器外壳
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	003 0301 09 09-20-003-0301 20	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
标准	RoHSCompliant

电气参数

最大额定电流

3 A

机械参数

尺寸	3A	高度	40
重量	0.03 kg	包装方式	Bulk
壳体颜色	grey	方向	straight
重量（g）	38.00000	外壳颜色	3A
连接器类型	Base - Panel Mount	外壳涂层	Powder Coated
安装样式	Bulkhead	封装形式	size 3A
插入力	Female	锁定特性	with lock
壳体材料	Zinc, Die Cast	总长度	35
包装数量	10	尺寸/外形	1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm)
端接样式	Cable	触点数	12
安装孔直径	3.2mm	供应商器件封装	for Han connectors
外壳与棱镜材料	zinc alloy

产品信息

SPG	10	类型	Housing
样式	Bottom Entry	系列	Han Q
CAD图纸	3D CAD Model	UNSPSC代码	31163100
产品子类型	Housings	锁定位置	Side Clip on Base Bottom
适配器系列	Han	单元数量	1

环境参数

防护等级

IP44

工作温度

-40°C ~ 125°C

相关型号

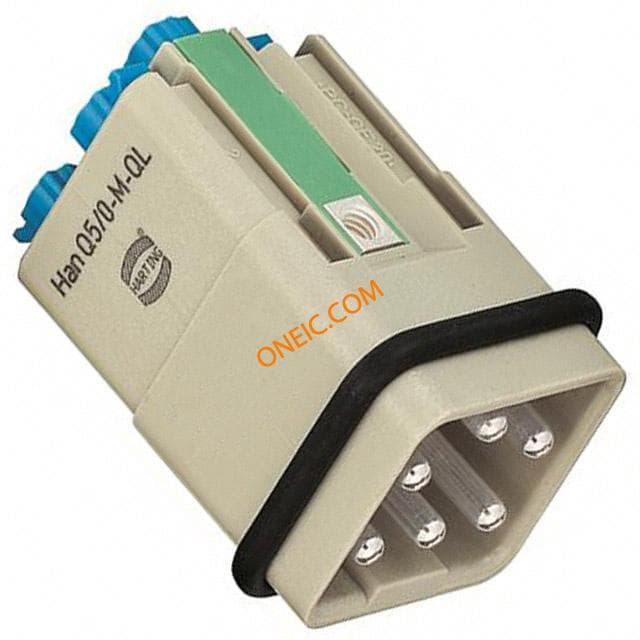

09120052633

Harting Technology Group

Conn Housing M 5 POS Crimp ST Cable Mount Heavy Duty Power Connectors 5+GND MALE RECEPT QUICK LOCK TERM HAN Q 5/0 INSERT MALE QUICK LOCK HANQ5/0Insertmalequicklock Connector: HAN; male; Quick Lock; PIN:6; 5+PE; size 3A; snap-on; 16A Han Q Male Insert: Han Q 5/0 Insert male quick lock Harting Han Q 系列 2行 5针插头电源连接器外壳

¥68.1100

详情

09200042711

Harting Technology Group

Conn Rectangular F 4Power/1Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN A 4P FEMALE SCRW SCREW TERMINATION HAN A 04 POS. F INSERT SCREW Insert; 230/400 V; 10 A; Female; 4; RoHS Compliant; Han A Series Han10B-g Connector: HAN; female; Han A; PIN:5; 4+PE; size 3A; screw terminal Han A Female Insert-Screw: Han A 04 Position F Insert Screw

¥65.8240

详情

09200032611

Harting Technology Group

Conn Power M 3Power POS Screw ST Cable Mount 3 Terminal 1 Port Heavy Duty Power Connectors HAN A 3P MALE SCREW SCREW TERMINATION HAN 3A M INSERT SCREW Han A 3 2 Male Straight, Cable Mount 10A,600V Insert;230/400V;10A;Male;3;RoHSCompliant;HanASeries Connector: HAN; male; Han A; PIN:4; 3+PE; size 3A; screw terminal Han A Male Insert-Screw: Han 3A M Insert Screw Harting Han A 系列 2行 3针 3P+E极插头电源连接器插件 , 电缆安装

¥61.2306

详情

暂无图片

09120032774

Harting Technology Group

HAN BRID RJ45C-F PANEL FEED THROUGH Ethernet & Telecom Connectors HAN BRID-RJ45 PANEL FEED THROUGH HAN BRID-RJ45 PANEL FEED THROUGH Modular Connectors / Ethernet Connectors HAN BRID-RJ45 PANEL FEED THROUGH INSERT RJ45 FEMALE 8P8C IDC

¥269.4840

详情

09700062813

Harting Technology Group

Conn Terminal Block F 6 POS Screw ST Cable Mount 10A Heavy Duty Power Connectors HAN STAF 6P FEMALE SCREW TERMINATION PCAF 06 POS. F INSERT SCREW INSERT FEMALE 6POS SCREW Insert;6;23mm;Female Connector: rectangular; male; Han Staf; PIN:6; size 3A; 10A; 50V Staf Insert F: Staf 06 Position F Insert Screw Harting STAF 系列 2行 6针插座电源连接器 , 电缆安装

¥72.4800

详情

09120073101

Harting Technology Group

Conn Housing F 8 POS Crimp ST Heavy Duty Power Connectors HAN Q FEM INST CRIMP TERM 7C+PE HAN Q 7/0-F HanQ7/0-Female Han Q Female Insert: Han Q 7/0-F Harting Han Q 系列 4行 8针插座电源连接器

¥38.3592

详情

09120123001

Harting

INSERT HAN 12/0 MALE Heavy Duty Power Connectors 12+GND MALE RECEPT SCREW TERM INSERT Han Q Male Insert: Insert Han 12/0 Male Harting Han Q 系列 4行 12针插头电源连接器外壳

¥18.4950

详情

09120123101

Harting

INSERT HAN Q 12/0 FEMALE Heavy Duty Power Connectors 12+GND FML PLUG SCREW TERM INSERT INSERTHANQ12/0FEMALE Han Q Female Insert: Insert Han Q 12/0 Female Harting Han Q 系列 4行 12针插座电源连接器外壳

¥84.3016

详情

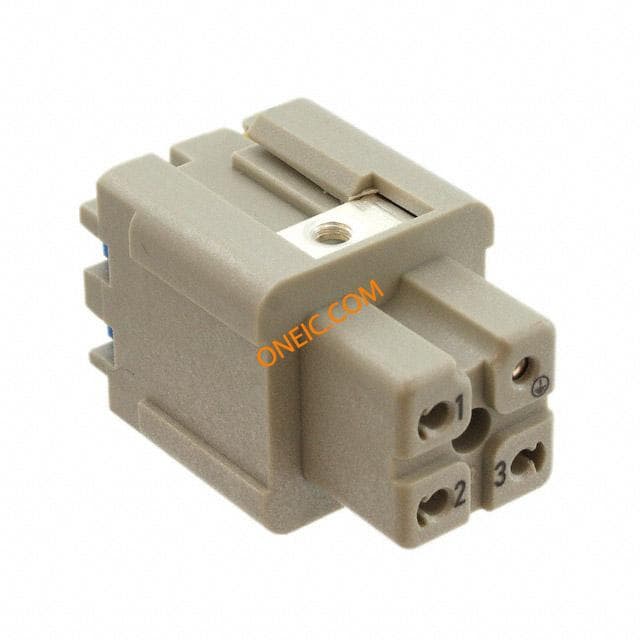

09200032733
