Littelfuse, Inc.- IGBT模块

Littelfuse, Inc.（力特）创立于1927年，总部位于美国伊利诺伊州芝加哥市，是全球电路保护、功率控制和传感技术领域的领先企业。公司产品几乎覆盖所有用电市场，包括汽车、工业设备、消费电子和商用车辆等核心领域。其核心产品线以业界最深最广的电路保护器件著称，涵盖汽车用片式保险丝（如ATO、Mini、Maxi系列）、可复位聚合物正温度系数器件（PolySwitch系列）、金属氧化物压敏电阻（MOV）、瞬态电压抑制二极管（SPA及SMBJ系列）以及静电放电保护阵列等。Littelfuse还不断拓展功率半导体业务，提供碳化硅MOSFET、整流器和栅极驱动器，同时拥有应用于汽车行业的机电传感器，如干簧开关和霍尔效应速度传感器。公司已将业务延伸至商用车辆用重型开关、矿用配电中心以及船用发电机控制与保护设备等邻近市场。凭借数十年的技术沉淀和持续研发投入，Littelfuse在全球电路保护市场稳居前列，以可靠性和创新力著称。其产品在高压工业系统到微型消费电子等各类严苛场景中，均对保障安全与性能起着至关重要的作用。公司在全球设有制造、销售和工程服务网络，为多元化客户群提供本地化解决方案。Littelfuse在纳斯达克上市（代码LFUS），通过战略性收购和产品线扩张持续巩固行业地位。

IGBT模块 - 型号列表

共 195 个型号

制造商零件编号	库存	产品	标准包装数量	RoHS	包装方式	系列	工厂包装数量	输入端	IGBT类型	NTC热敏电阻	供电电压	集电极电流（Ic）（最大）	安装类型	封装形式	供应商器件封装	欧盟RoHS	最大栅源电压 Vgs	最大功率	最小输入电压	最大功耗	集电极-发射极饱和电压（最大）@ Vge, Ic	输入电容 (Cies) @ Vce	集电极截止电流（最大）	宽度	总长度	位数	外壳尺寸-插件	通道类型	配置	印刷电路板数量	工作温度	安装样式	制造商全称	高度	长度	标准封装名称	包装数量	类型	栅极触发电压 Vgt (最大)	尺寸/外形	冷却的封装	每IC通道数	连续漏极电流（Id）@ 25°C	晶体管类型	引脚数	抗辐射加固	结工作温度	额定功率	Vce饱和电压（最大）	平均正向功率	栅极电荷（Qg）（最大）@ Vgs	产品类别	延迟时间	输出电流	其他名称	引脚样式	功能

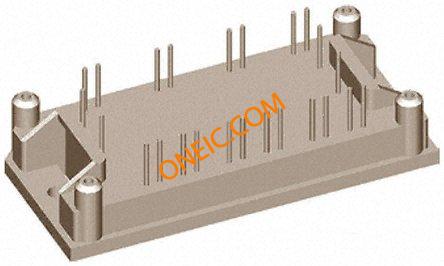

3 MUBW15-12A6K Discrete Semiconductor Modules 15 Amps 1200V Trans IGBT Module N-CH 1.2KV 19A 25-Pin MODULE IGBT CBI E1 MUBW15-12A6K, IGBT Module, N-channel, Hex, 19A 1200V, 25-Pin IXYS N通道 IGBT 模块, 3 相桥接, 19 A 1200 V, 25针 Littelfuse, Inc.	-	Power Semiconductor Modules	10	Lead free / RoHS Compliant	Bulk	MUBW15	10	Three Phase Bridge Rectifier	NPT	Yes	1200V	19A	Screw	E1	E1	Compliant	±20V	90W	1200 V	90000	3.4V @ 15V, 15A	0.6nF @ 25V	600µA	37.4mm	82	25	17.1	N	Hex	25	+125 °C	Screw	IXYS	17.1mm	82mm	-	-	Converter/Brake/Inv (CBI) IGBT Modules	1600 V	82 x 37.4 x 17.1mm	-	3 相桥接	-	3 相	25	-	-	-	-	-	-	-	50 ns	89 A	-	-	-
MWI50-06A7 Discrete Semiconductor Modules 50 Amps 600V Trans IGBT Module N-CH 600V 72A 18-Pin E2 MOD IGBT SIXPACK RBSOA 600V E2 Littelfuse, Inc.	-	Power Semiconductor Modules	6	Lead free / RoHS Compliant	Bulk	MWI50	6	Standard	NPT	No	600V	72A	Screw	E2	E2	Compliant	�20 V	225W	600	225000	2.4V @ 15V, 50A	2.8nF @ 25V	600µA	45	107.5	18	17	N	Hex	18	- 40 C to + 150 C	Screw	IXYS	-	-	E2	E2	Six-Pack IGBT Modules	-	-	E2	Three Phase Inverter	-	-	-	No	150C	-	-	-	-	-	-	-	-	-	-
3 MWI200-06A8 Discrete Semiconductor Modules NPT IGBT 600V, 200A Trans IGBT Module N-CH 600V 225A 21-Pin TRANS 16BIT 3-PH 600V 115A MWI200-06A8, IGBT Module, N-channel, Hex, 225A 600V, 21-Pin IXYS N通道 IGBT 模块, 3 相桥接, 225 A 600 V, 21针 Littelfuse, Inc.	-	Power Semiconductor Modules	5	Lead free / RoHS Compliant	Bulk	MWI200	5	Standard	NPT	No	600V	225A	Screw	E3	E3	Compliant	±20V	675W	600 V	675000	2.5V @ 15V, 200A	9nF @ 25V	1.8mA	62mm	122	21	17	N	Hex	21	+125 °C	Screw	IXYS	17mm	122mm	-	-	Six-Pack IGBT Modules	±20V	122 x 62 x 17mm	-	3 相桥接	-	3 相	21	-	-	-	-	-	-	Discrete Semiconductor Modules	-	-	Q2725163	Through Hole	Y
3 MII100-12A3 Discrete Semiconductor Modules IGBT MODULE 1200V, 100A Trans IGBT Module N-CH 1.2KV 135A 7-Pin Y4-M5 IGBT 1200V 135A SOA/RBSOA MII100-12A3, IGBT Module, N-channel, Dual, 135A 1200V, 7-Pin Y4 M5 IXYS N通道 IGBT 模块, 串行, 135 A 1200 V, 7针 Y4 M5封装 Littelfuse, Inc.	-	Power Semiconductor Modules	6	Lead free / RoHS Compliant	Bulk	MII100	6	Standard	NPT	No	1200V	135A	Screw	Y4-M5	Y4-M5	Compliant	±20V	560W	1200 V	560000	2.7V @ 15V, 75A	5.5nF @ 25V	5mA	34mm	94	7	30	N	Dual	7	+150 °C	Screw	IXYS	30mm	94mm	Y4-M5	Y4-M5	IGBT Modules	1.2 kV	94 x 34 x 30mm	Y4 M5	串行	-	串行	7	-	-	-	-	-	-	Discrete Semiconductor Modules	-	-	-	-	-
MUBW30-12A6K Discrete Semiconductor Modules 30 Amps 1200V Trans IGBT Module N-CH 1.2KV 30A 25-Pin MODULE IGBT CBI E1 IXYS(IXYS) 驱动器 Littelfuse, Inc.	-	Power Semiconductor Modules	10	Lead free / RoHS Compliant	Bulk	MUBW30	10	Three Phase Bridge Rectifier	NPT	Yes	1200V	30A	Screw	E1	E1	Compliant	±20	130W	1200	130000	3.8V @ 15V, 30A	1nF @ 25V	1mA	37.4	82	25	17.1	N	Hex	25	125	Screw	IXYS	-	-	-	-	Converter/Brake/Inv (CBI) IGBT Modules	1.6 kV	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 MII75-12A3 Discrete Semiconductor Modules 75 Amps 1200V Trans IGBT Module N-CH 1.2KV 90A 7-Pin Y4-M5 MOD IGBT RBSOA 1200V 90A Y4-M5 MII75-12A3, IGBT Module, N-channel, Dual, 90A 1200V, 7-Pin Y4 M5 IXYS N通道 IGBT 模块, 串行, 90 A 1200 V, 7针 Y4 M5封装 Littelfuse, Inc.	-	Power Semiconductor Modules	6	Lead free / RoHS Compliant	Bulk	MII75	6	Standard	NPT	No	1200V	90A	Screw	Y4-M5	Y4-M5	Compliant	±20V	370W	1200 V	370000	2.7V @ 15V, 50A	3.3nF @ 25V	4mA	34mm	94	7	30	N	Dual	7	+150 °C	Screw	IXYS	30mm	94mm	Y4-M5	Y4-M5	IGBT Modules	1.2 kV	94 x 34 x 30mm	Y4 M5	Half Bridge	-	串行	7	-	-	-	-	-	-	-	-	-	-	-	-

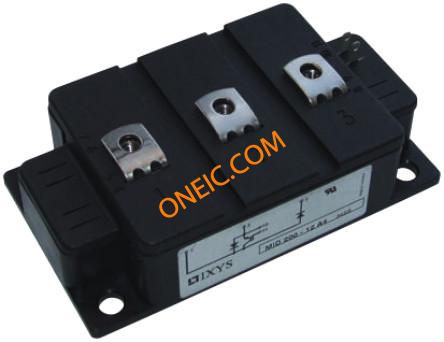

2 MII200-12A4 Discrete Semiconductor Modules 200 Amps 1200V Trans IGBT Module N-CH 1.2KV 270A 7-Pin Y3-DCB MOD IGBT RBSOA 1200V 270A Y3-DCB MII200-12A4, IGBT Module, N-channel, Dual, 270A 1200V, 7-Pin Y3 DCB Littelfuse, Inc.	-	Power Semiconductor Modules	2	Lead free / RoHS Compliant	Bulk	MII200	2	Standard	NPT	No	1200V	270A	Screw	Y3-DCB	Y3-DCB	Compliant	±20V	1130W	1200 V	1130000	2.7V @ 15V, 150A	11nF @ 25V	10mA	62mm	110	7	30	N	Dual	7	+150 °C	Screw	IXYS	30mm	110mm	Y3-DCB	Y3-DCB	-	-	110 x 62 x 30mm	Y3 DCB	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
MII145-12A3 Discrete Semiconductor Modules 145 Amps 1200V Trans IGBT Module N-CH 1.2KV 160A 7-Pin Y4-M5 MOD IGBT RBSOA 1200V 160A Y4-M5 MII145-12A3, IGBT Module, N-channel, Dual, 160A 1200V, 7-Pin Y4 M5 Littelfuse, Inc.	-	Power Semiconductor Modules	6	Lead free / RoHS Compliant	Bulk	MII145	6	Standard	NPT	No	1200V	160A	Screw	Y4-M5	Y4-M5	Compliant	±20V	700W	1200 V	700000	2.7V @ 15V, 100A	6.5nF @ 25V	6mA	34mm	94	7	30	N	Dual	7	+150 °C	-	-	30mm	94mm	Y4-M5	Y4-M5	IGBT Modules	1.2 kV	94 x 34 x 30mm	Y4 M5	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 MUBW50-06A7 Discrete Semiconductor Modules 50 Amps 600V Trans IGBT Module N-CH 600V 75A 24-Pin MODULE IGBT CBI E2 MUBW50-06A7, IGBT Module, N-channel, Hex, 75A 600V, 23-Pin IXYS N通道 IGBT 模块, 3 相桥接, 75 A 600 V, 23针 Littelfuse, Inc.	-	Power Semiconductor Modules	6	Lead free / RoHS Compliant	Bulk	MUBW50	6	Three Phase Bridge Rectifier	NPT	Yes	600V	75A	Screw	E2	E2	Compliant	±20V	250W	600 V	250000	2.4V @ 15V, 50A	2.8nF @ 25V	800µA	45mm	107.5	24	17	N	Hex	24	+125 °C	Screw	IXYS	17mm	107.5mm	-	-	Converter/Brake/Inv (CBI) IGBT Modules	1.6 kV	107.5 x 45 x 17mm	-	Three Phase Inverter with Brake	-	3 相	23	-	-	-	-	-	-	-	-	-	-	-	-
MII150-12A4 Discrete Semiconductor Modules 150 Amps 1200V Trans IGBT Module N-CH 1.2KV 180A 7-Pin Y3-DCB MOD IGBT RBSOA 1200V 180A Y3-DCB Littelfuse, Inc.	-	Power Semiconductor Modules	2	Lead free / RoHS Compliant	Bulk	MII150	2	Standard	NPT	No	1200V	180A	Screw	Y3-DCB	Y3-DCB	Compliant	�20 V	760W	1200	760000	2.7V @ 15V, 100A	6.6nF @ 25V	7.5mA	62	110	7	30	N	Dual	7	- 40 C to + 150 C	Screw	IXYS	-	-	Y3-DCB	Y3-DCB	IGBT Modules	-	-	Y3-DCB	-	-	-	-	No	150C	-	-	-	-	-	-	-	-	-	-
MUBW35-12A7 Discrete Semiconductor Modules 35 Amps 1200V Trans IGBT Module N-CH 1.2KV 50A 24-Pin MODULE IGBT CBI E2 Littelfuse, Inc.	-	Power Semiconductor Modules	6	Lead free / RoHS Compliant	Bulk	MUBW35	6	Three Phase Bridge Rectifier	NPT	Yes	1200V	50A	Screw	E2	E2	Compliant	�20 V	225W	1200	225000	3.1V @ 15V, 35A	1.65nF @ 25V	1.1mA	45	107.5	24	17	N	Hex	24	Automotive	Screw	-	-	-	-	-	Converter/Brake/Inv (CBI) IGBT Modules	1.6 kV	-	-	-	-	-	-	No	125C	-	-	-	-	-	-	-	-	-	-
IXRB5-506MINIPACK2 IGBT Modules MiniPack 2 MOSFET MINIPACK-2 Littelfuse, Inc.	-	IGBT Silicon Modules	1	RoHS Compliant	Bulk	IXRB5-506MINIPACK2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	IXYS	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
MITA30WB600TMH IGBT Modules CBI IGBT MODULES IN MINIPACK 2 IGBT MODULE CBI MINIPACK2 Littelfuse, Inc.	-	IGBT Silicon Modules	20	RoHS Compliant	Box	MITA30WB600	20	Standard	NPT	No	1600V	40A	Chassis Mount	MiniPack2	MiniPack2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	SMD/SMT	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
MDI550-12A4 IGBT Modules 550 Amps 1200V Trans IGBT Module N-CH 1.2KV 670A 5-Pin Y3-DCB MOD IGBT BUCK 1200V 670A Y3-DCB Littelfuse, Inc.	-	IGBT Silicon Modules	2	Lead free / RoHS Compliant	Bulk	MDI550	2	Standard	NPT	No	1200V	670A	Screw	Y3-DCB	Y3-DCB	Supplier Unconfirmed	+/- 20 V	2750W	1200	2750000	2.8V @ 15V, 400A	26nF @ 25V	21mA	62	110	5	30	N	Single	5	+ 150 C	Screw	IXYS	30 mm	110 mm	Y3-DCB	Y3-DCB	-	-	-	-	-	670 A	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 MDI75-12A3 IGBT Modules 75 Amps 1200V Trans IGBT Module N-CH 1.2KV 90A 7-Pin Y4-M5 MOD IGBT BUCK 1200V 90A Y4-M5 MDI75-12A3, IGBT Module, N-channel, 90A 1200V, 7-Pin Y4 M5 Littelfuse, Inc.	-	IGBT Silicon Modules	6	Lead free / RoHS Compliant	Bulk	MDI75	6	Standard	NPT	No	1200V	90A	Screw	Y4-M5	Y4-M5	Supplier Unconfirmed	±20V	370W	1200 V	370000	2.7V @ 15V, 50A	3.3nF @ 25V	4mA	34mm	94	7	30	N	Single	7	+150 °C	Screw	IXYS	30mm	94mm	Y4-M5	Y4-M5	-	-	94 x 34 x 30mm	Y4 M5	-	90 A	-	-	-	-	-	-	-	-	-	-	-	-	-	-
MID100-12A3 IGBT Modules 100 Amps 1200V Trans IGBT Module N-CH 1.2KV 135A 7-Pin Y4-M5 MOD IGBT RBSOA 1200V 135A Y4-M5 Littelfuse, Inc.	-	IGBT Silicon Modules	6	Lead free / RoHS Compliant	Bulk	MID100	6	Standard	NPT	No	1200V	135A	Screw	Y4-M5	Y4-M5	Compliant	+/- 20 V	560W	1200	560000	2.7V @ 15V, 75A	5.5nF @ 25V	5mA	34	94	7	30	N	Single	7	- 40 C	Screw	IXYS	30 mm	94 mm	Y4-M5	Y4-M5	-	-	-	-	-	135 A	-	-	-	-	560 W	1.2 kV	560 W	300 nA	-	-	-	-	-	-
3 MID145-12A3 IGBT Modules 145 Amps 1200V Trans IGBT Module N-CH 1.2KV 160A 7-Pin Y4-M5 MOD IGBT RBSOA 1200V 160A Y4-M5 MID145-12A3, IGBT Module, N-channel, 160A 1200V, 7-Pin Y4 M5 IXYS N通道 IGBT 模块, 160 A 1200 V, 7针 Y4 M5封装 Littelfuse, Inc.	-	IGBT Silicon Modules	6	Lead free / RoHS Compliant	Bulk	MID145	6	Standard	NPT	No	1200V	160A	Screw	Y4-M5	Y4-M5	Compliant	±20V	700W	1200 V	700000	2.7V @ 15V, 100A	6.5nF @ 25V	6mA	34mm	94	7	30	N	Single	7	+150 °C	Screw	IXYS	30mm	94mm	Y4-M5	Y4-M5	-	±20V	94 x 34 x 30mm	Y4 M5	单	160 A	单	7	-	-	700 W	1.2 kV	700 W	400 nA	-	-	-	-	-	-
MDI300-12A4 IGBT Modules 300 Amps 1200V Trans IGBT Module N-CH 1.2KV 330A 7-Pin Y3-DCB MOD IGBT BUCK 1200V 330A Y3-DCB Littelfuse, Inc.	-	IGBT Silicon Modules	2	Lead free / RoHS Compliant	Bulk	MDI300	2	Standard	NPT	No	1200V	330A	Screw	Y3-DCB	Y3-DCB	Supplier Unconfirmed	+/- 20 V	1380W	1200	1380000	2.7V @ 15V, 200A	13nF @ 25V	13mA	62	110	7	30	N	Single	7	- 40 C	Screw	IXYS	30 mm	110 mm	Y3-DCB	Y3-DCB	-	-	-	-	-	330 A	-	-	-	-	-	-	-	-	-	-	-	-	-	-
MWI75-06A7T IGBT Modules 75 Amps 600V Trans IGBT Module N-CH 600V 90A 18-Pin E2 MOD IGBT SIXPACK RBSOA 600V E2 Littelfuse, Inc.	-	IGBT Silicon Modules	6	Lead free / RoHS Compliant	Bulk	MWI75	6	Standard	NPT	Yes	600V	90A	Screw	E2	E2	Compliant	+/- 20 V	280W	600	280000	2.6V @ 15V, 75A	3.2nF @ 25V	1.3mA	45	107.5	18	17	N	Hex	18	- 40 C	Screw	IXYS	17 mm	107.5 mm	E2	E2	-	-	-	-	-	90 A	-	-	-	-	-	-	-	-	-	-	-	-	-	-
MKI100-12F8 IGBT Modules 100 Amps 1200V Trans IGBT Module N-CH 1.2KV 125A 14-Pin MOD IGBT H-BRIDGE 1200V 125A E3 Littelfuse, Inc.	-	IGBT Silicon Modules	5	Lead free / RoHS Compliant	Bulk	MKI100	5	Standard	NPT	No	1200V	125A	Screw	E3	E3	Supplier Unconfirmed	+/- 20 V	640W	1200	640000	3.9V @ 15V, 100A	6.5nF @ 25V	1.3mA	62	122	14	17	N	Quad	14	- 40 C	-	IXYS	17 mm	122 mm	-	-	-	-	-	-	-	125 A	-	-	-	-	640 W	1.2 kV	640 W	600 nA	-	-	-	-	-	-
