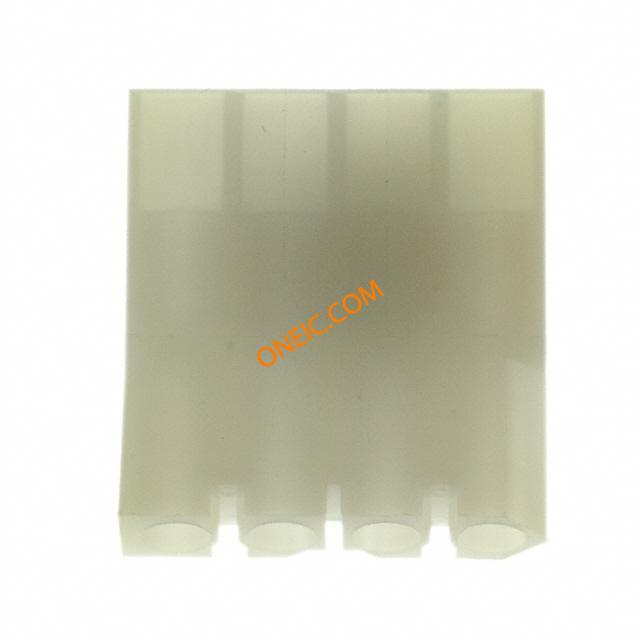

点击放大查看
CL3509-000
| 制造商 | TE Connectivity Ltd. |
| 描述 | CONN RECEPT W/DETENT 4POS .093 |
| 分类 |
商业参数
| 标准包装数量 | 3,100 | ||
机械参数
| 颜色 | Natural | 间距 | 0.250" (6.35mm) |
| 包装方式 | Bulk | 触头类型 | Male or Female |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 接触件端接 | Crimp | 位数 | 4 |
产品信息
| 备注 | Contacts Not Provided | ||
