点击放大查看

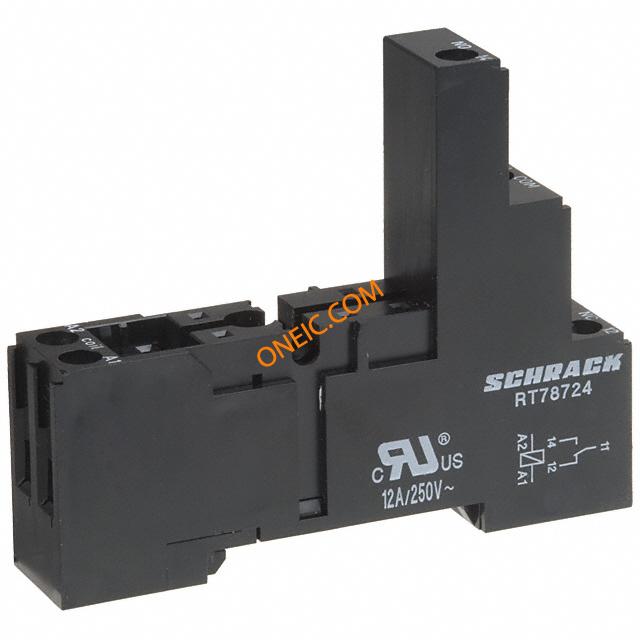

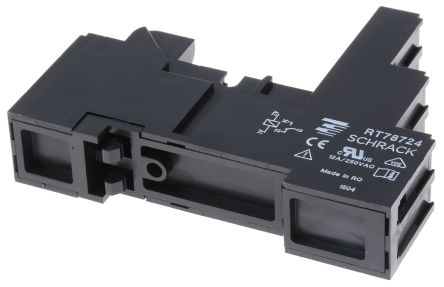

RT78724
| 制造商 | TE Connectivity Ltd. |
| 描述 | Relay Sockets & Hardware Access Industrial SOCKET 3.5MM W/SCREW TERM DIN Conn Relay Socket SKT 5 POS Screw ST Panel Mount SOCKET, DIN, 3.5MM PITCH, SCREW TERM 继电器插座, 适用于RT 系列 |
| 分类 |
商业参数
| 零件号别名 | 8-1415035-1 | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :VDE | ||
电气参数
| 额定电压 | :240V | 介电强度 | :4000VAC |
| 最大额定电流 | :12A | ||
机械参数
| 深度 | :61mm | 宽度 | :15mm |
| 长度 | :77mm | 重量 | 0.036 |
| 包装方式 | Bulk | 导线线规 | :1.5mm² |
| 柱间距 | :3.5mm | 安装类型 | DIN Rail |
| 端子类型 | :Screw | 连接器类型 | :Screw |
| 安装样式 | DIN Rail | 端接样式 | Screw |
| 位数 | 5 | 线规或范围 - mm² | :2.5mm² |
产品信息
| 类型 | Socket | 系列 | RT |
| 附件类型 | Socket, DIN Rail | 应用细节 | Use with RT series industrial power relays |
| 适用产品/相关产品 | RT Series, SCHRACK | ||
环境参数
| NEMA 机架尺寸 | :IP20 | 工作温度 | :85°C |
文档与媒体
相关型号
2-1393238-3
te connectivity / p&b
Electromechanical Relay SPDT 12A 110VDC 28.8KOhm Through Hole General Purpose Relays RTB14110 Industrial Relays (General Purpose) RELAY GEN PURPOSE SPDT 12A 110V
RT17040
TE Connectivity / Schrack
Relay Sockets & Hardware MarkingTag For Use Relay Sockets MARKING TAG FOR RT78 Marking Tag For Industrial Power Relay Rt MARKING TAG MarkingTag,XTSeries
RT134024F
TE Connectivity / P&B
General Purpose Relays SPST-NO 3.5mm 24DC F RELAY GEN PURPOSE SPST 12A 24V Electromechanical Relay SPST-NO 12A 24VDC 1.44KOhm Through Hole Electromechanical Relay SPST-NO 12A 24VDC 1.44KOhm Through Hole Product Highlights:RT1 SeriesContact Arrangement = 1 Form A, SPST-NO, 1 N/OContact Current Rating = 12 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode RT134024F

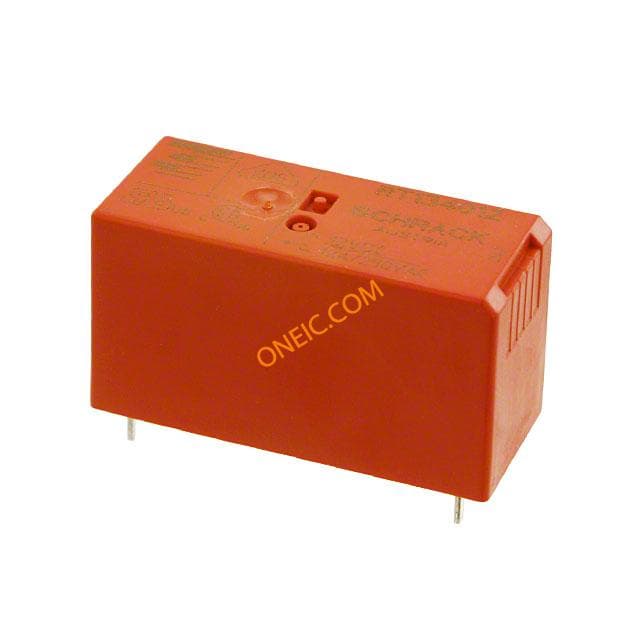

2-1393239-6
te connectivity / p&b
Electromechanical Relay SPST-NO 12A 12VDC 360Ohm Through Hole Reinforced PCB Relays up to 16A RELAY GEN PURPOSE SPST 12A 12V Electromechanical Relay SPST-NO 12A 12VDC 360Ohm Through Hole Product Highlights:Relay Type = Power PCB RelayRelay Style = PCBRT1 SeriesContact Arrangement = 1 Form A, SPST-NO, 1 N/OContact Current Rating = 12 A Relay: electromagnetic; SPST-NO; Ucoil:12VDC; 12A/250VAC; 360Ω General Purpose Relay Coil Voltage: 12 VDC Contact Configuration: 1A SPST-NO Current: 12 Amps Mounting: PC Board Operating Function: Single Side Stable
RT114024
TE Connectivity / Schrack
General Purpose Relays 1 FORM C, SPDT,1 C/O w/o coil supres diod RELAY GEN PURPOSE SPDT 12A 24V SPDT PCB relay, 3.5mm pin, 12A 24Vdc RELAY 24VDC/12A 1RT Electromechanical Relay SPDT 12A 24VDC 1.44KOhm Through Hole Electromechanical Relay SPDT 12A 24VDC 1.44KOhm Through Hole Product Highlights:RT1 SeriesContact Arrangement = 1 Form C, SPDT, 1 C/OContact Current Rating = 12 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode RELAY, PCB, SPCO, 24VDC SPDTPCBrelay,3.5mmpin,12A24Vdc RELAY24VDC/12A1RT TE Connectivity 单刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 24V dc RT114024
RT114012F
TE Connectivity / P&B
General Purpose Relays SPDT 12A 12VDC RELAY GEN PURPOSE SPDT 12A 12V Relay,E-Mech,GenPurp,SPDT,Cur-Rtg12A Electromechanical Relay SPDT 12A 12VDC 360Ohm Through Hole Electromechanical Relay SPDT 12A 12VDC 360Ohm Through Hole Product Highlights:RT1 SeriesContact Arrangement = 1 Form C, SPDT, 1 C/OContact Current Rating = 12 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, SPDT, 12VDC, 12A, PC BOARD Relay;E-Mech;GenPurp;SPDT;Cur-Rtg12A;Ctrl-V12DC;Vol-Rtg250/30AC/DC;PCBMnt RT114012F
RT114024F
TE Connectivity / P&B
General Purpose Relays SP 12A 3.5mm 24VDC F RELAY GEN PURPOSE SPDT 12A 24V Electromechanical Relay SPDT 12A 24VDC 1.44KOhm Through Hole Electromechanical Relay SPDT 12A 24VDC 1.44KOhm Through Hole Product Highlights:RT1 SeriesContact Arrangement = 1 Form C, SPDT, 1 C/OContact Current Rating = 12 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode RT114024F
RTB34024F
TE Connectivity / P&B
General Purpose Relays SPST-NO 12A 24VDC RELAY GEN PURPOSE SPST 12A 24V Electromechanical Relay SPST-NO 12A 24VDC 1.44KOhm Through Hole Electromechanical Relay SPST-NO 12A 24VDC 1.44KOhm Through Hole Product Highlights:RT1 SeriesContact Arrangement = 1 Form A, SPST-NO, 1 N/OContact Current Rating = 12 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode RTB34024F
RTB34012F
TE Connectivity / P&B
General Purpose Relays SPST-NO 12A 12VDC RELAY GEN PURPOSE SPST 12A 12V REINFORCED PCB R 16A Electromechanical Relay SPST-NO 12A 12VDC 360Ohm Through Hole Electromechanical Relay SPST-NO 12A 12VDC 360Ohm Through Hole Product Highlights:RT1 SeriesContact Arrangement = 1 Form A, SPST-NO, 1 N/OContact Current Rating = 12 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode RELAY, PCB, SPST-NO, 12VDC, 12A REINFORCEDPCBR16A RTB34012F
RTB14524
TE Connectivity / Schrack
General Purpose Relays SP 12A 3.5mm 24VAC RELAY GEN PURPOSE SPDT 12A 24V SPDT PCB power relay,12A 24Vac coil Electromechanical Relay SPDT 12A 24VAC 350Ohm Through Hole Electromechanical Relay SPDT 12A 24VAC 350Ohm Through Hole Product Highlights:RT1 SeriesContact Arrangement = 1 Form C, SPDT, 1 C/OContact Current Rating = 12 Amps.Monostable Coil Magnetic SystemInput Voltage = 24 VAC Relay;24VAC;PCB;PCBoard;1FormC,SPDT,1C/O;0.75VA(Nom.)(Coil) TE Connectivity 单刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 24V RTB14524
RTB14730
TE Connectivity / Schrack
General Purpose Relays SP 12A 3.5mm 230VAC RELAY GEN PURPOSE SPDT 12A 230V SPDT PCB power relay,12A 230ac coil Electromechanical Relay SPDT 12A 230VAC 32.5KOhm Through Hole Electromechanical Relay SPDT 12A 230VAC 32.5KOhm Through Hole Product Highlights:RT1 SeriesContact Arrangement = 1 Form C, SPDT, 1 C/OContact Current Rating = 12 Amps.Monostable Coil Magnetic SystemInput Voltage = 230 VAC RELAY, PCB, 230VAC SPDTPCBpowerrelay,12A230accoil TE Connectivity 单刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 230V RTB14730

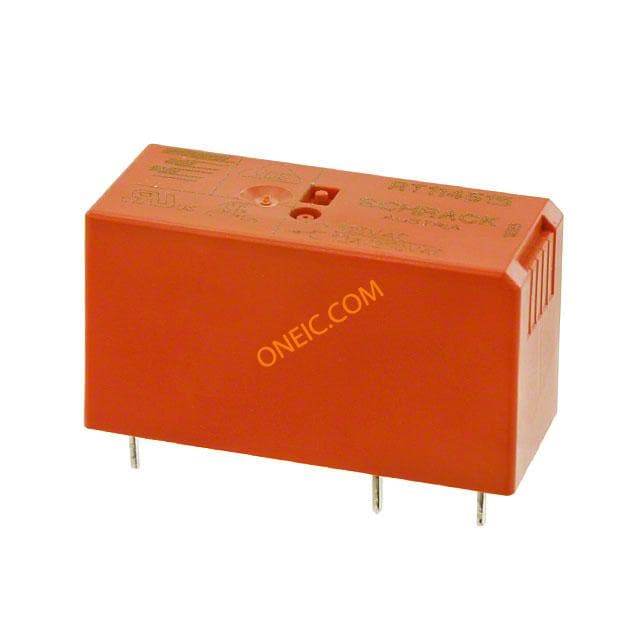

1-1393239-8
te connectivity / p&b
Electromechanical Relay SPDT 12A 115VAC 8.1KOhm Through Hole Reinforced PCB Relays up to 16A RELAY GEN PURPOSE SPDT 12A 115V General Purpose Relay Coil Voltage: 115 VAC Contact Configuration: 1C SPDT Current: 12 Amps Mounting: PC Board Operating Function: Single Side Stable PCB power relay 115 VAC 0.75 VA, 1-1393239-8, TE Connectivity
1393239-8
te connectivity / p&b
Electromechanical Relay SPDT 12A 6VDC 90Ohm Through Hole General Purpose Relays RT114006 Reinforced PCB Relays up to 16A RELAY GEN PURPOSE SPDT 12A 6V General Purpose Relay Coil Voltage: 6 VDC Contact Configuration: 1C SPDT Current: 12 Amps Mounting: PC Board Operating Function: Single Side Stable

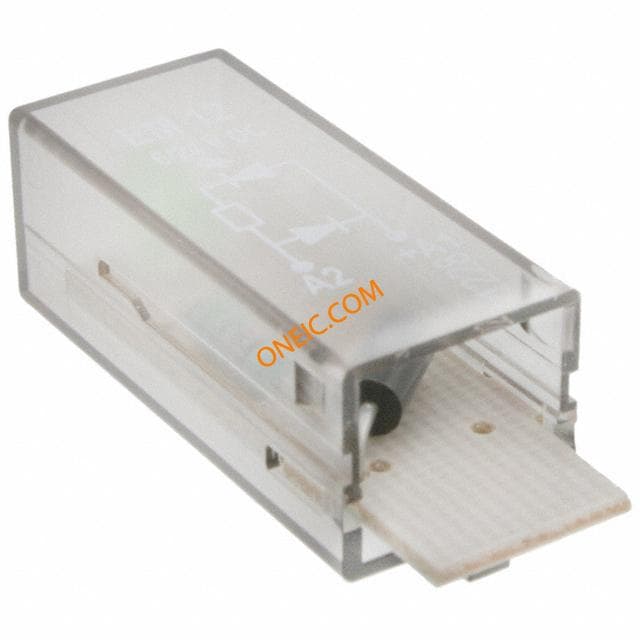

2-1415036-1
te connectivity / p&b
PTMG0024 Relay Sockets & Hardware PTMG0024 LED MODULE GRN PROTECTION DIODE 2-1415036-1 Module protecting; Series: PT Plug-in module with diode + green LED, 2-1415036-1, TE Connectivity

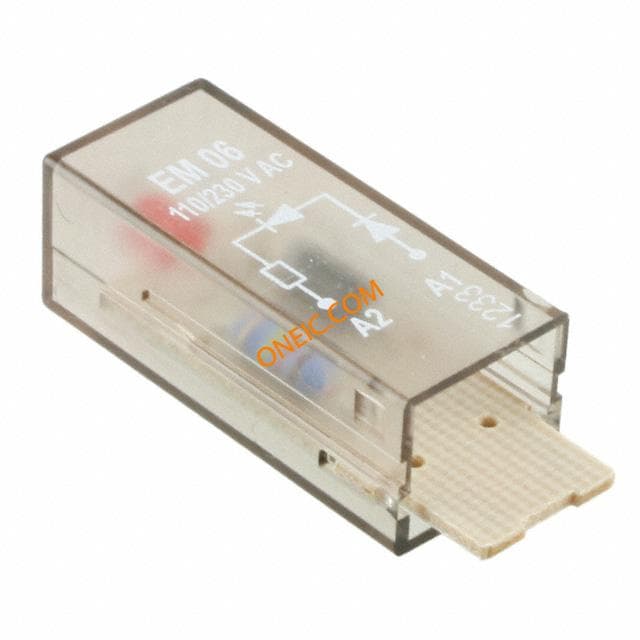

7-1415036-1
te connectivity / p&b
PTML0730 LED MODULE RED Plug module with red LED, 7-1415036-1, TE Connectivity

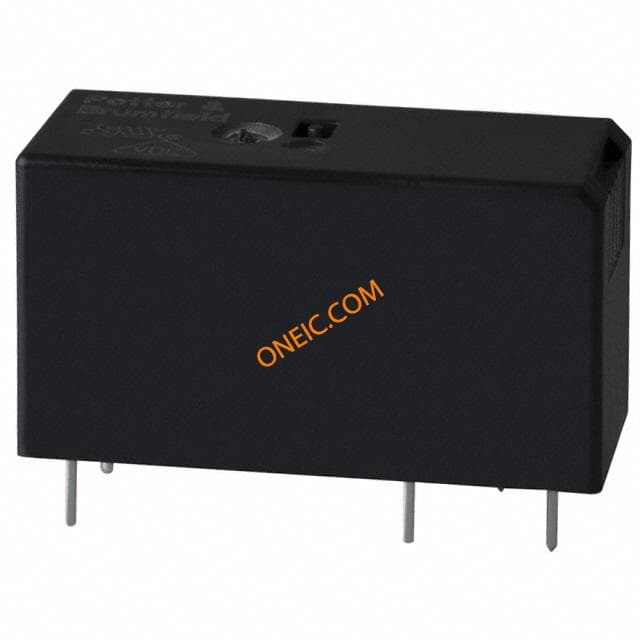

RTB14006F
TE Connectivity / P&B
General Purpose Relays SPDT 12A 6VDC 90Ohm Power PCB Relay RELAY GEN PURPOSE SPDT 12A 6V Co
RTB14005
te connectivity / p&b
Electromechanical Relay SPDT 12A 5VDC 62Ohm Through Hole General Purpose Relays SPDT 12A 5VDC Power PCB Relay RELAY GEN PURPOSE SPDT 12A 5V SPDT PCB power relay,12A 5Vdc coil Electromechanical Relay SPDT 12A 5VDC 62Ohm Through Hole Product Highlights:RT1 SeriesContact Arrangement = 1 Form C, SPDT, 1 C/OContact Current Rating = 12 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode 12ASPCO3.5MMRTRELAY5V TE Connectivity 单刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 5V dc RTB14005
RTB14024F
te connectivity / p&b
Electromechanical Relay SPDT 12A 24VDC 1.44KOhm Through Hole General Purpose Relays SPDT 12 A 24 VDC RELAY GEN PURPOSE SPDT 12A 24V RELAY,INDUSTRIAL,GENERALPURPOSE,12A,SPDT Electromechanical Relay SPDT 12A 24VDC 1.44KOhm Through Hole Product Highlights:RT1 SeriesContact Arrangement = 1 Form C, SPDT, 1 C/OContact Current Rating = 12 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, SPDT, 24VDC, 12A, PC BOARD RELAY, PCB, SPDT, 24VDC, 12A RELAY,INDUSTRIAL,GENERALPURPOSE,12A,SPDT,PCBMOUNT RTB14024F

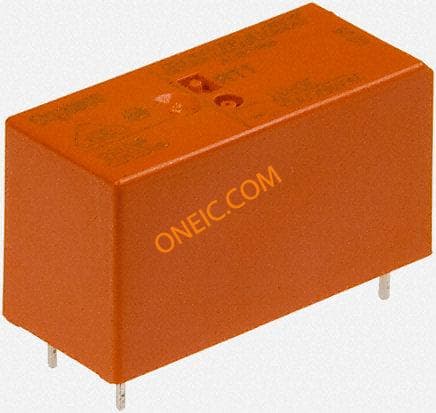

RT134730
