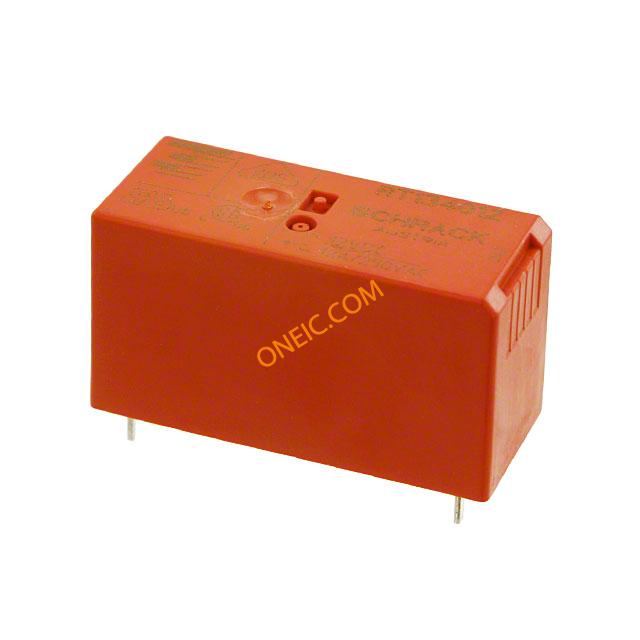

2-1393239-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Electromechanical Relay SPST-NO 12A 12VDC 360Ohm Through Hole Reinforced PCB Relays up to 16A RELAY GEN PURPOSE SPST 12A 12V Electromechanical Relay SPST-NO 12A 12VDC 360Ohm Through Hole Product Highlights:Relay Type = Power PCB RelayRelay Style = PCBRT1 SeriesContact Arrangement = 1 Form A, SPST-NO, 1 N/OContact Current Rating = 12 A Relay: electromagnetic; SPST-NO; Ucoil:12VDC; 12A/250VAC; 360Ω General Purpose Relay Coil Voltage: 12 VDC Contact Configuration: 1A SPST-NO Current: 12 Amps Mounting: PC Board Operating Function: Single Side Stable |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240C, Wave solder capable to 260C, Wave solder capable to 265C |
| 认可国家 | UL Recognized, CSA Certified, VDE Component Mark | RoHS/ELV合规声明 | Converted to comply with RoHS directive |
| FCC Part 68隔离 | No | ||
电气参数
| 电流 | 12 Amps | 线圈类型 | Non Latching |
| 核心类型 | Monostable | 线圈功率 | 400 mW |
| 线圈电流 | 33.3mA | 释放时间 | 6ms |
| 输入功率 | 400 mW | 释放范围（时间） | 6ms |
| 可见输出 | Without | 线圈电阻 | 360 Ohms |
| 供电电压 | 12VDC | 开关电压 | 400VAC - Max |
| Vgs(th)（最大）@ Id | 1.2 VDC | 二极管配置 | Without |
| 断态电压 | 1.2 VDC | 最大触点电流 | 12A |
| 最小输入电压 | 8.4V DC | 额定电流 - 串联 | Sensitive |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 8.4 VDC | 触点额定电流 | 12A |
| 触点额定值 @ 电压 | 12A | 交流触点额定值（阻性负载） | 12 A / 250 VAC |
| 直流触点额定值（阻性负载） | 12 A / 24 VDC | ||
机械参数
| 高度 | 15.7mm | 重量 | 0.01 kg |
| 包装方式 | Tube | 本体尺寸 | 29 x 12.7 x 15.7mm |
| 端接方式 | Through Hole | 触点形式 | SPST-NO (1 Form A) |
| 柱间距 | 3.5mm | 致动器类型 | DC |
| 触点形状 | SPST-NO (1 Form A) | 安装类型 | Through Hole |
| 线圈绝缘等级 | n/a | 操作力 | 8ms |
| 触头材料 | Silver Nickel (AgNi) | 尺寸/外形 | see |
| 外形尺寸 长x宽x高 | 29.00 x 12.70 x 15.70 [1.142 x .500 x .618] | 端接样式 | PC Pin |
| 典型触点布局 | 1A SPST-NO | 供应商器件封装 | Flux-Tight |
产品信息
| 备注 | n/a | 类型 | Relays |
| 系列 | RT1, SCHRACK | 产品特性 | Insulation - Class F, Sealed - Flux Protection |
| 功能 | Single Side Stable | 极性 | No |
| 继电器类型 | General Purpose | 卡标准 | General Purpose Relay |
| 继电器变体 | miniature | 接线图 | Code 1 |
| 单元数量 | 1 | 输出配置 | see |
| 触点配置 | SPST-NO | ||
环境参数
| 动作时间 | 8ms | 机械寿命 | 30000000cycles |
| 防护等级 | IP40 | 工作温度 | -40°C ~ 85°C |
