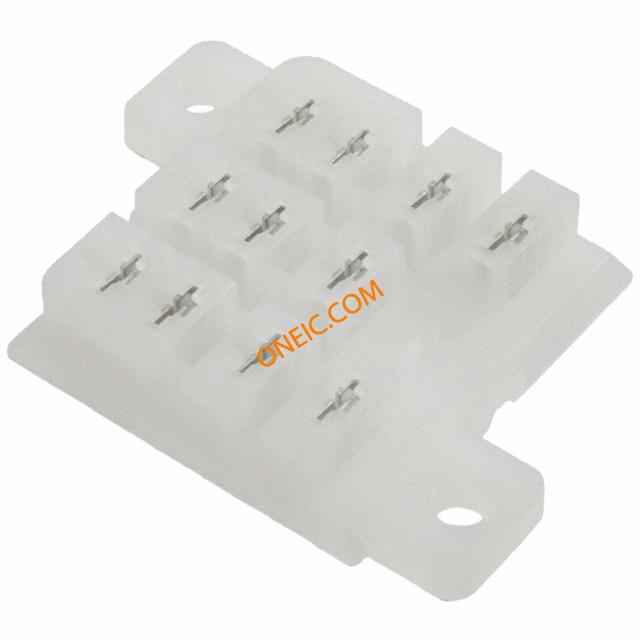

27E305
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Relay Socket SKT 11 POS Solder ST Thru-Hole Relay Sockets & Hardware SOCKET NYL FOR KU SER PCB SOCKET NYL FOR KU SER PCB Conn Relay Socket SKT 11 POS Solder ST Thru-Hole Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = PCTerminal Length = 4.67 mm 27E305=SOCKET,KU,11,PC,NYL,N |
| 分类 |
商业参数
| 零件号别名 | 3-1393143-2 | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | Trays | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 极数 | 1, 2, 3 | ||
机械参数
| 端接方式 | Solder | 安装类型 | Through Hole |
| 连接器类型 | 印刷电路板 | 排数 | 3 |
| 插入件材料 | 弹簧黄铜 | 触头材料 | 锡 |
| 主要材料 | 尼龙 | 端接样式 | Quick Connect |
| 触点数 | 11 | 位数 | 11 |
| 兼容外壳尺寸（如TM-700等） | KUP 继电器 | 典型触点布局 | PC |
| 端子柱长度 | 4.67 mm [ .184 in ] | ||
产品信息
| 类型 | Relay Socket | 连接器性别 | SKT |
| 系列 | KU | 产品子类型 | 插座 |
| 附件类型 | Socket | 适用产品/相关产品 | KU Series |
文档与媒体
相关型号
KUEP-3D15-48
TE Connectivity / P&B
