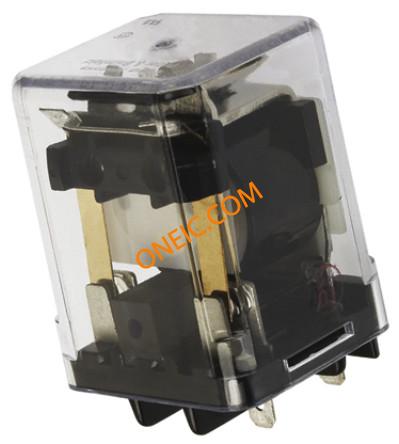

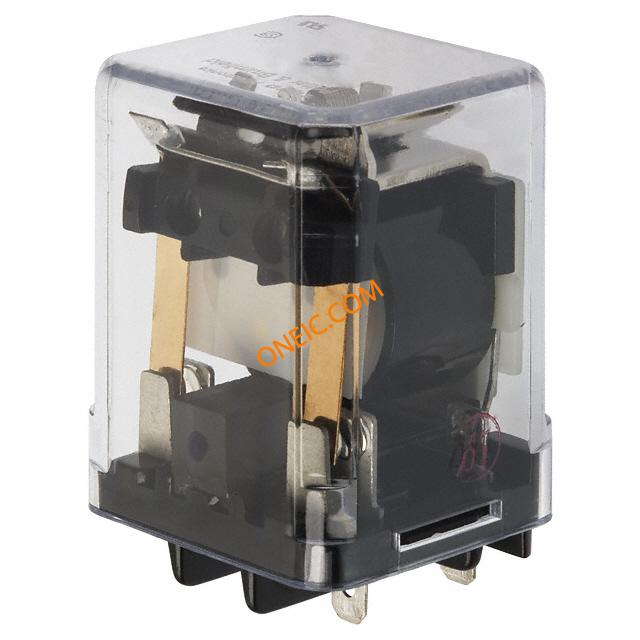

KUEP-3D15-48

点击放大查看

KUEP-3D15-48

制造商
TE Connectivity Ltd.
描述General Purpose Relays SPST-NO-DM 10Amps GEN PURPOSE RELAY RELAY GEN PURPOSE SPST 10A 48V RELAY, MONOSTABLE MAGNETIC COIL SYSTEM Electromechanical Relay SPST-NO-DM 10A 48VDC 1.8KOhm Plain Case Electromechanical Relay SPST-NO-DM 10A 48VDC 1.8KOhm Plain Case Product Highlights:KUEP SeriesContact Arrangement = 1 Form X, SPST-NO-DM, 1 N/O Bridge ContactContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, SPST-NO, 48VDC, 10A PLUG IN RELAY,MONOSTABLEMAGNETICCOILSYSTEM,10A,1FORMX,SPST-NO-DM,1N/OBRIDGE KUEP-3D15-48=KU
分类
工业电源组件和继电器功率继电器，2安培以上自锁继电器
对参数有疑问？问 AI 助手

商业参数

零件号别名1393114-2产品类别General Purpose Relays
标准包装数量25

合规参数

RoHSRoHS Compliant标准UL,CSA,RoHS
海关税号85364110零件状态1393114-2

电气参数

线圈类型Monostable线圈功率1.3 W
量程（°/s）:TE - KUEP Series线圈电流26.7mA
释放时间10ms线圈电阻1800 Ohms
输出电流:10A供电电压240 VAC/110 VDC
开关电压150VDC - Max最大额定电流10A
平均正向功率1.2 W集电极-发射极饱和电压（最大）@ Vge, Ic36 VDC
触点额定电流10A数字供电电压:300V
驱动电压（最大Rds On，最小Rds On）48VDC

机械参数

宽度35.7 mm高度48.4 mm
长度38.9 mm重量0.073
包装方式Bulk端接方式QuickConnect
触点形式1 Form X (SPST-NO-DM)安装类型Socketable
端子类型Quick Connect安装样式Socket
触头材料Silver Cadmium Oxide端接样式Quick Connect
接触件端接Terminals典型触点布局SPDT-NO

产品信息

类型Ice Cube Style Relay系列KUEP
产品特性Insulation - Class B功能MagneticSystem
继电器类型General Purpose制造商全称KUEPSeries

环境参数

动作时间15ms工作温度-45°C ~ 70°C
