KUL-11D15D-24

点击放大查看

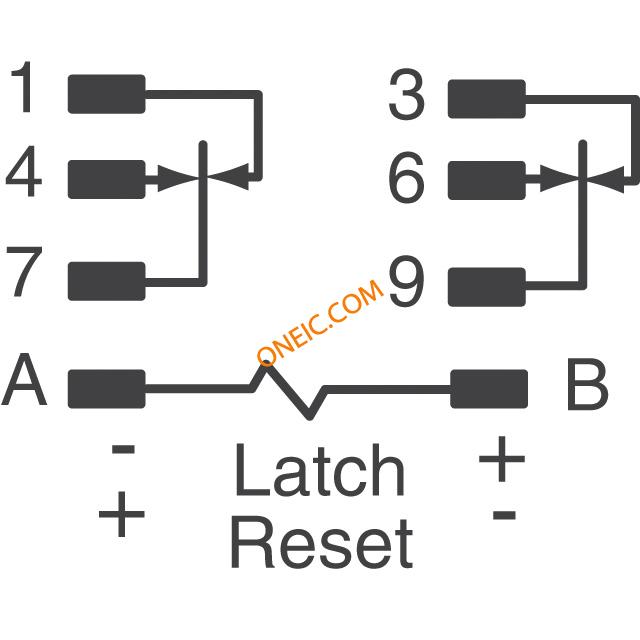

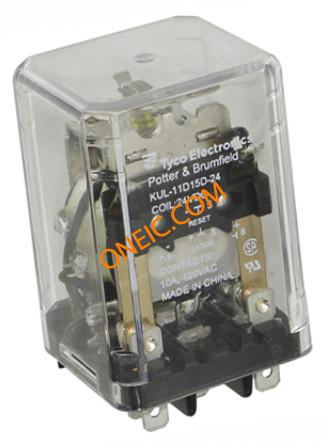

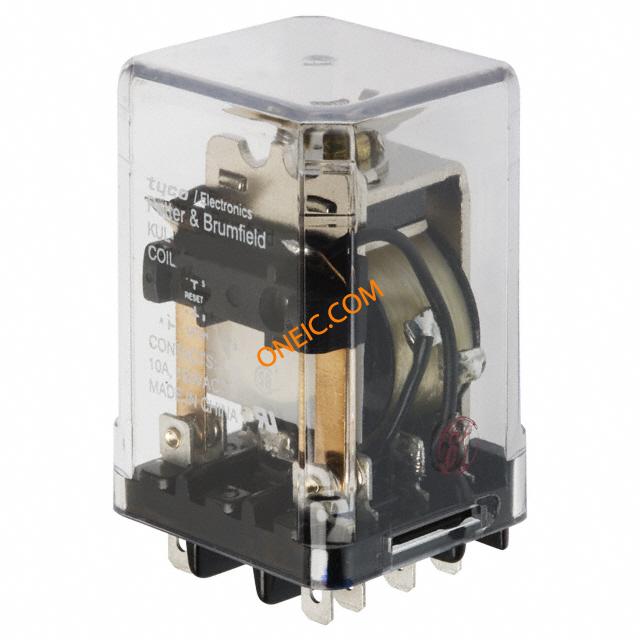

KUL-11D15D-24

制造商
TE Connectivity Ltd.
描述Electromechanical Relay DPDT 10A 24VDC 350Ohm Socket General Purpose Relays DPDT PLAIN 24VDC RELAY GEN PURPOSE DPDT 10A 24V Relay,E-Mech,Latching,DPDT,Cur-Rtg10A Electromechanical Relay DPDT 10A 24VDC 350Ohm Socket Product Highlights:KUL SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 10 Amps.Bistable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, DPDT, 24VDC, 10A, PLUG IN Relay;E-Mech;Latching;DPDT;Cur-Rtg10A;Ctrl-V24DC;Vol-Rtg240/28AC/DC;10Pin KUL-11D15D-24=KU
分类
工业电源组件和继电器功率继电器，2安培以上自锁继电器
对参数有疑问？问 AI 助手

商业参数

交货时间94 Days子类别Electromechanical Relay
零件号别名3-1393115-2产品类别General Purpose Relays
标准包装数量Bulk工厂包装数量25

合规参数

RoHSRoHS Compliant By Exemption标准UL,CSA,RoHS
海关税号85364110零件状态3-1393115-2

电气参数

线圈类型Bistable灯类型Magnetic
线圈功率1.65 W电阻350Ohms(Coil)
量程（°/s）:TE - KUL Series线圈电流68.57 mA
释放时间25ms额定电压28 V
线圈电阻350 Ohm承载电流:10A
输出电流:10A供电电压24 V
开关电压240VAC - Max最大额定电流10 A
触点电压（最大）:250V最小输入电压250 V
平均正向功率1.6 W集电极-发射极饱和电压（最大）@ Vge, Ic18 VDC
触点额定电流10A数字供电电压:28V
驱动电压（最大Rds On，最小Rds On）24VDC

机械参数

宽度35.7 mm高度54.8 mm
长度38.9 mm重量0.091
包装方式Tray | Box端接方式QuickConnect
触点形式2 Form C (DPDT-BM)安装类型Socket
端子类型Quick Connect安装样式Socket
引脚数10触头材料Silver Cadmium Oxide
端接样式Plug In, QC - 0.187" (4.7mm)接触件端接Quick Connect
典型触点布局DPDT

产品信息

类型Industrial Relay系列KUL
产品特性Insulation - Class B功能Latching
继电器类型General Purpose制造商全称KULSeries
行业别名3-1393115-2, KUL-11D15D-24应用细节General Purpose

环境参数

动作时间25ms工作温度-45 to 50 °C

文档与媒体

在线文档
KUL-11D15D-24?RQPN=KUL-11D15D-24
