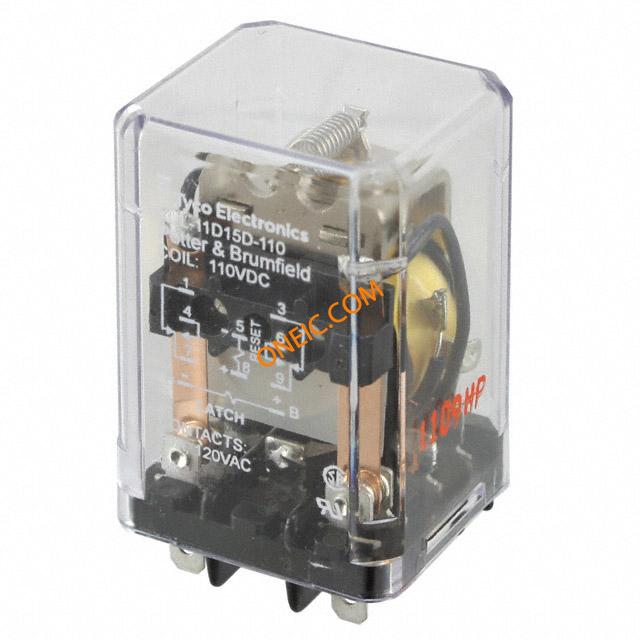

KUL-11D15D-110

点击放大查看

KUL-11D15D-110

制造商
TE Connectivity Ltd.
描述General Purpose Relays DPDT 10A 12VDC LATCH RELAY RELAY GEN PURPOSE DPDT 10A 110V Electromechanical Relay DPDT 10A 110VDC 7.4KOhm Socket KUL-11D15D-110=KU
分类
工业电源组件和继电器功率继电器，2安培以上自锁继电器
对参数有疑问？问 AI 助手

商业参数

零件号别名3-1393115-0产品类别General Purpose Relays
标准包装数量25工厂包装数量25

合规参数

RoHSLead free / RoHS Compliant

电气参数

线圈类型Latching, Dual Coil线圈功率1.65 W
释放时间25ms输入功率1650
核心电压1000 – 1500额定电压240
线圈电阻7.4 kOhms浪涌电流10
供电电压110 VDC开关电压240 VAC
连接器阻抗2 Form C (CO)跳闸电流10
最大额定电流10输出1频率双稳态、2 个线圈
额定电流（安培）5 – 10, 16绝缘电阻1500
平均正向功率1.65 W集电极-发射极饱和电压（最大）@ Vge, Ic82.5 VDC
触点额定电流10 A输出源/灌电流300mA @ 12V
初始电阻（最小）100放电电流（最大）（8/20µs）10

机械参数

宽度35.7 mm [ 1.405 in ]高度54.8 mm [ 2.157 in ]
长度38.9 mm [ 1.55 in ]重量96 g [ 3.386 oz ]
包装方式Bulk触点形式2 Form C (DPDT-BM)
致动器类型DC安装类型Socketable
安装样式Socket触头材料Silver Cadmium Oxide
端接样式Plug In, QC - 0.187" (4.7mm)触点数2
初级绕组磁闭锁接触件端接Quick Connect
介电材料1500宽度/横截面30 – 40
第一连接器安装类型插座

产品信息

产品特性Insulation - Class B继电器类型General Purpose
