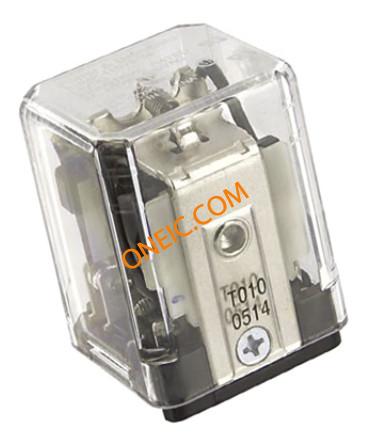

KUMP-11D18-24

点击放大查看

KUMP-11D18-24

制造商
TE Connectivity Ltd.
描述General Purpose Relays DP PLN QC/SLDR 24VDC RELAY GEN PURPOSE DPDT 15A 24V Relay,E-Mech,GenPurp,DPDT,Cur-Rtg15A Electromechanical Relay DPDT 15A 24VDC 472Ohm Plain Case Electromechanical Relay DPDT 15A 24VDC 472Ohm Plain Case Product Highlights:KUMP SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 15 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, DPDT, 24VDC, 15A, PLUG IN Relay;E-Mech;GenPurp;DPDT;Cur-Rtg15A;Ctrl-V24DC;Vol-Rtg277AC;9Pin KUMP-11D18-24=KU-
分类
工业电源组件和继电器功率继电器，2安培以上自锁继电器
对参数有疑问？问 AI 助手

商业参数

交货时间45 Days子类别Electromechanical Relay
零件号别名7-1393116-2产品类别General Purpose Relays
标准包装数量25工厂包装数量25

合规参数

RoHSRoHS Compliant By Exemption标准UL,CSA,RoHS
海关税号85364110零件状态7-1393116-2

电气参数

线圈类型Monostable线圈功率1.25 W
量程（°/s）:TE - KUMP Series线圈电流5.1 mA
释放时间10ms额定电压277VAC
线圈电阻472 Ohms承载电流:15A
输出电流:15A供电电压24 V
开关电压277VAC - Max最大额定电流15A
触点电压（最大）:277V平均正向功率1.2 W
集电极-发射极饱和电压（最大）@ Vge, Ic18 VDC触点额定电流15 A
数字供电电压:32V驱动电压（最大Rds On，最小Rds On）24VDC

机械参数

深度1.406in宽度35.7 mm
高度48.4 mm长度38.9 mm
重量0.068包装方式Bulk
端接方式QuickConnect触点形式2 Form C (DPDT-BM)
安装类型Socketable端子类型Quick Connect
安装样式Panel引脚数9
触头材料Silver Cadmium Oxide尺寸/外形1.532in.Lx1.406in.Wx1.907in.H
端接样式Plug In, QC - 0.187" (4.7mm)接触件端接Quick Connect
典型触点布局DPDT

产品信息

类型Ice Cube Style Relay系列KUMP
产品特性Insulation - Class B功能GeneralPurpose
继电器类型General Purpose制造商全称KUMPSeries
行业别名7-1393116-2, KUMP-11D18-24应用细节General Purpose

环境参数

动作时间15ms工作温度-45°C ~ 70°C
