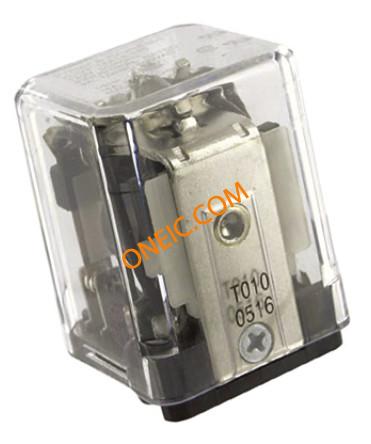

KUMP-14A18-120

点击放大查看

KUMP-14A18-120

制造商
TE Connectivity Ltd.
描述Electromechanical Relay 3PDT 15A 120VAC 1.7KOhm Plain Case General Purpose Relays 3P PLN QC/SLDR 120AC RELAY GEN PURPOSE 3PDT 15A 120V Relay,E-Mech,GenPurp,3PDT,Cur-Rtg15A Electromechanical Relay 3PDT 15A 120VAC 1.7KOhm Plain Case Product Highlights:KUMP SeriesContact Arrangement = 3 Form C, 3PDT, 3 C/OContact Current Rating = 15 Amps.Monostable Coil Magnetic SystemInput Voltage = 120 VAC POWER RELAY, 3PDT, 120VAC, 15A, PLUG IN Relay;E-Mech;GenPurp;3PDT;Cur-Rtg15A;Ctrl-V120AC;Vol-Rtg277AC;11Pin KUMP-14A18-120=KU
分类
电容器薄膜电容器金属化聚丙烯薄膜电容器
对参数有疑问？问 AI 助手

商业参数

交货时间94 Days子类别Electromechanical Relay
零件号别名8-1393116-4产品类别General Purpose Relays
标准包装数量Bulk工厂包装数量25

合规参数

RoHSRoHS Compliant By Exemption标准UL,CSA,RoHS
海关税号84682000零件状态8-1393116-4

电气参数

线圈类型Monostable线圈功率2.9 VA
量程（°/s）:TE - KUMP Series线圈电流24 mA
释放时间10ms额定电压277VAC
线圈电阻1.7 KOhm极数:3
输出电流:15A供电电压120 V
开关电压277VAC - Max最大额定电流15 A
触点电压（最大）:277V最小输入电压277 V
平均正向功率2.7 VA集电极-发射极饱和电压（最大）@ Vge, Ic102 VAC
触点额定电流15 A数字供电电压:32V
驱动电压（最大Rds On，最小Rds On）120VAC

机械参数

深度1.531in宽度35.7 mm
高度48.4 mm长度38.9 mm
重量0.077包装方式Bulk
端接方式QuickConnect触点形式3 Form C (3PDT-BM)
安装类型Plain Case端子类型Quick Connect
安装样式Panel引脚数11
触头材料Silver Cadmium Oxide尺寸/外形1.968InchesLx1.531InchesWx1.406InchesH
端接样式Plug In, QC - 0.187" (4.7mm)接触件端接Quick Connect
典型触点布局3PDT

产品信息

类型Industrial Relay系列KUMP
产品特性Insulation - Class B功能GeneralPurpose
继电器类型General Purpose制造商全称KUMPSeries
行业别名8-1393116-4, KUMP-14A18-120应用细节General Purpose

环境参数

动作时间15ms工作温度-45 to 45 °C
